Help CenterCondensing Unit Electric Control Box ECB-100
Related Products
-
Refrigeration Electric Cabinet ECB-5060US$ 50 - 200MOQ: 10 Units -
Cold Storage Electric Control Box ECB-5080US$ 50 - 200MOQ: 10 Units
-
Cold Storage Electrical Control Box ECB-1020US$ 50 - 200MOQ: 10 Units
-
Refrigeration Electric Control Box ECB-30US$ 50 - 500MOQ: 10 Units
-
Tecol Cold Storage Electric Control System ECB-6030US$ 50 - 200MOQ: 10 Units
Specifications
1.Protection functions2.Easy-to-operate
3.Auto and manual switch function
Brief introduction
1. Protection functions
2. Easy-to-operate
3. Auto and manual switch function
General descriptions:

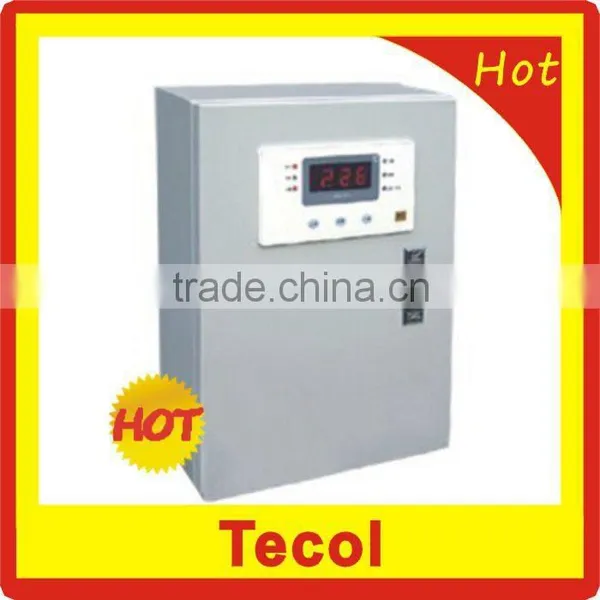

ECB-100 is an Electric Control Box with complete protection functions, easy to set the parameters and operate. Auto and manual switch functions selected. When manually operate, it can realize the single-phase load control of fan, compressor and defroster.
Functions and features:
1. Modify the parameters even when the system is running
2. Manual/Auto switch functions, when manually operate, can control the load of Fan,
3. Compressor and defroster separately
4. Compressor start-up delay
5. Fan start-up delay
6. Auto-defrost and enforced defrost
7. Acousto-optic alarm when pressureoverload and phase lacking error
8. Pressureoverload and phase lacking protection function
9. Main heavy current controllers are domestic famous brands with high reliability
10. Good water-proof ability
Specification:
Product size: 300X420X150mm
Technical parameters:
1. Temperature measuring and controlling range: -40 ~+50oC
2. Accuracy: ±1oC
3. Resolution: 0.1
4. Defrosting cycle: 0~99 hours
5. Defrosting time: 0~99 minutes
6. Sensor temperature calibration:±5oC
7. Control Ways: 3 ways (for control of Compressor, Fan and Defroster)
8. Input Way: 4 ways (1 way for temp. measuring others for error monitoring)
