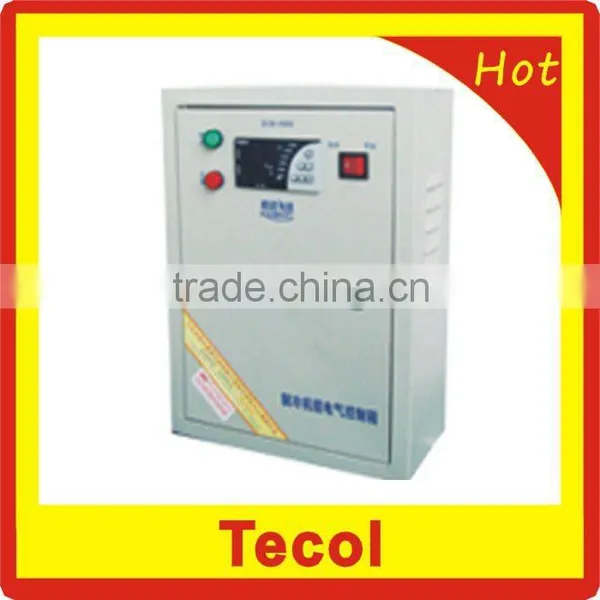

Help CenterRefrigeration Electric Cabinet ECB-5060
Related Products
-
Cold Storage Electric Control Box ECB-5080US$ 50 - 200MOQ: 10 Units -
Cold Storage Electrical Control Box ECB-1020US$ 50 - 200MOQ: 10 Units
-
Refrigeration Electric Control Box ECB-30US$ 50 - 500MOQ: 10 Units
-
Tecol Cold Storage Electric Control System ECB-6030US$ 50 - 200MOQ: 10 Units
-
Cold Storage Electric Control Cabinet ECB-700US$ 50 - 200MOQ: 10 Units
Specifications
1. Measure & control temp range:-50~50celsius2. Double screen
3. Double sensors
4. Control compressor & defroster
Brief introduction
1. Measure & control temp range:-50~50celsius
2. Double screen
3. Double sensors
4. Control compressor & defroster
5. Auto or Manual control
Functions and features:
ECB-5060 is specially designed for refrigerating unit. Double-screen display with both the current temperature and setting temperature; measuring temperature by double sensors; manage and control compressor and defroster separately ; Auto and manual control optional; Defrosting over temperature protection; Crank heating; when Sensor error, compressor turns on/off with proportional time; easy operation and visual display, stable and reliable performance.
Specification:
Product size: 300X400X150mm
Technical parameters:
1. Power supply: Three-phase five-wire (or three-phase four-wire), 380 VAC ±10%, 50Hz
2. Temperature measuring and controlling range: -50~+50oC,
3. Accuracy: ±1oC,
4. Resolution: 0.1
5. Compressor start-up delay protection time: 0~120 minutes (Adjustable)
6. Max. capacity of controlling the compressor (KW): 11
7. Max. capacity of controlling the defroster (KW): 11
