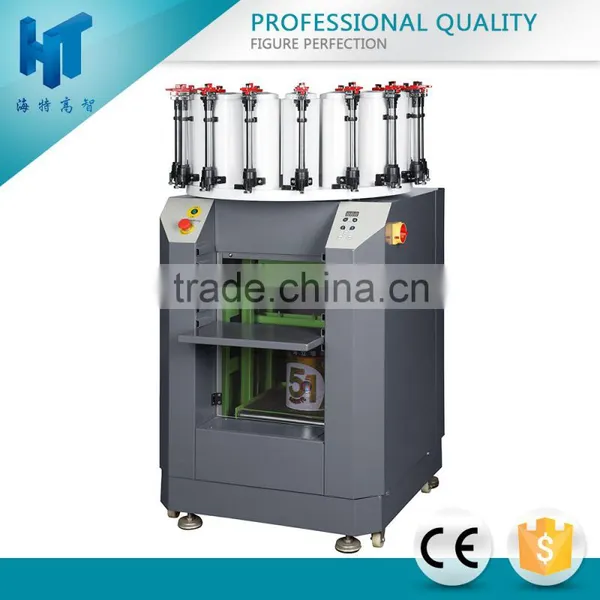

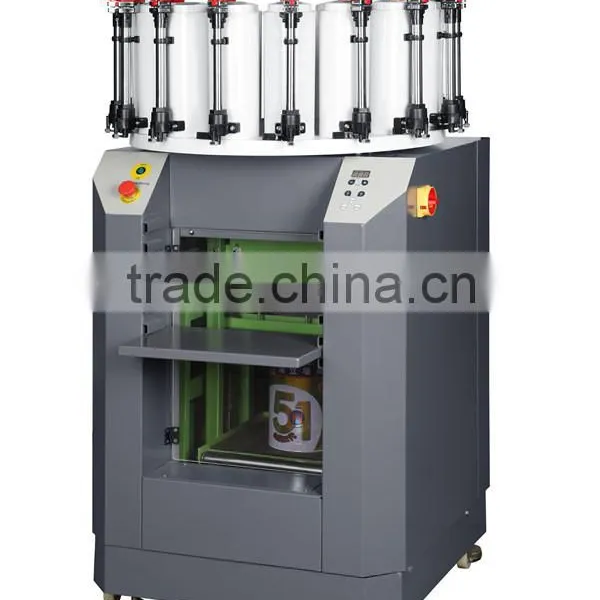

Combined Paint Tinting Machine with CE Certificate
Model: HT-60A
1. Brief introduction:
For this kind of model machine is combined with the Manual Dispenser and Automatic Paint Shaker,which is the perfet combination for the operator.
Its greatest advantage is highly precision and repeatability. Easy to use, maintain and extremely safe for the user.
2. Application:
High speed paint dispenser is to agitate, dispense many kinds of mixed liquid.
Our machine is widely used for chemical product of paint, coating, ink and wall painting etc.
The working priciple is that to dispense colorant quickly and steaddily, and mixed together in a short time.
3. Technical Parameters:
| Max Working Time | 60 minutes |
| Max Can Size | 360 x 360 x 380mm |
| Can Compress-board Readjust Range | 80-380mm |
| Applicable Range | 1-30Kg |
| Presure | 3500N |
| Power | 750W |
| Speed | 1400r/min |
| Sharking Frequency | 680t/min |
| Power supply | 220V, 50Hz, 10A |
4. Detailed illustration:
(for 2 parts, Manul Dispenser & Automatic Paint Shaker)

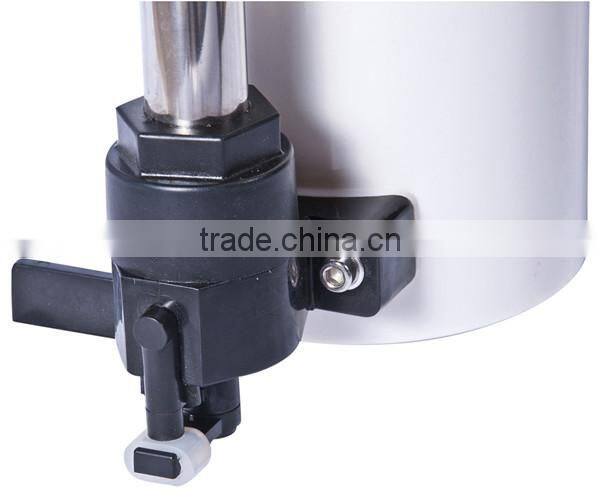

- First Part: The Manul Dispenser
Technical data:
| Application | water or oil colorant(1-24 types) |
| Canister | 2.3L plastic canisters or stainess teel canister (different prices for the different material) |
| Maximal Discharge Rate | 2 fluid ounce |
| Accuracy | 1-192Y or 1-384Y of 1/256Y or 0.1ml or others |
| Working Power | 220V or 110V |
| Frequency | 50/60Hz |
| Power Supply | 40~60W |
Characteristics:
(1). Double-pump and double-gauge design ensure the precise outpouring.
(2). Automatic blending of rotating blades ensures equal distribution of colorant and has no deposition.
(3). Automatic colorant mixing (10 mins for 3-5 times everyday, factory adjustable)
(4). High-quality ceramic valves can solve the leaking problem.

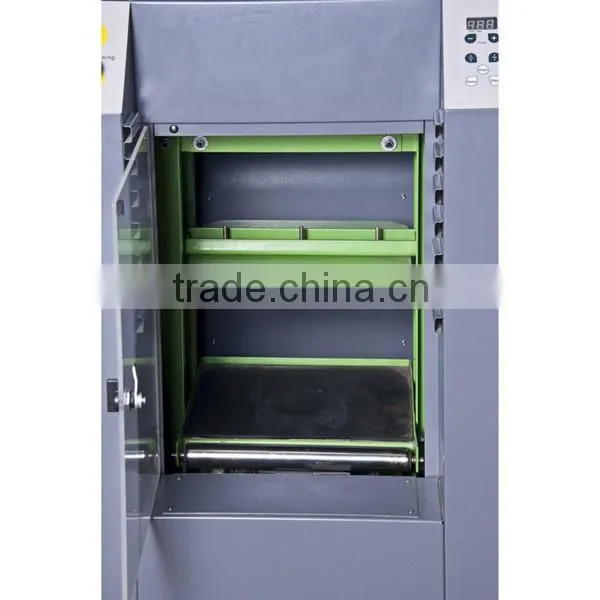

- Second Part: The Automatic Paint Shaker
Technical data:
| Applicable Range | 0.5-20L (paint or printing ink in drum) |
| Suitable for Max Can Size | 360 x 360 x 380mm |
| Can Compress-board Readjust Range | 80-380mm |
| Load Range | 1~30Kg |
| Pressure | 3500N |
| Power | 750W |
| Speed | 1400r/min |
| Sharking Frequency | 680t/min |
| Power Supply | 220V, 50Hz, 10A |
Key Features:
(1). Automatic clamp and bring different pressure to bear on the can according to the can size, will not squish or stave the can.
(2). High speed and thoroughly mixing---with up an down, front and back tontinuous multi-shake movement.
(3). With the digital display showing the machine working time, opertor can add or reduce the time.
(4). Automatic closing and opening, but ther is also the maual open and close keys for choose for different needs.
(5). The tray to support the paint drum can manually adjust the height for different size paint drum.
5. After Sales Service:
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
6. Payment Terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
7. Package:
Packing in 2 cases, one for the shaker and another one for the dispenser canisters.
Wrap with plastic film first, then in paper and finally in wooden case
8. Shipment Terms:
We usually take EXW, but we can also accept FOB, CNF, CIF.
Your inquiry will be answered within 24 hours. Wishing to be your long-term partner, please feel free to contact us. We will do our best for your.
