Home > Products > Solar Water Heater > Solar Water Heating System

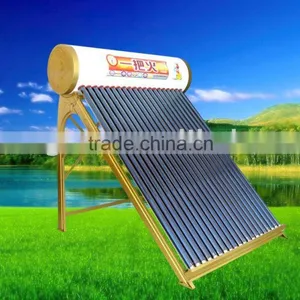

Solar Water Heating System
- 50000 Set / Sets per Month
- Shanghai
Product Details
| Type: | Evacuated Tube | Pressure: | Unpressurized | Circulation Type: | Direct / Open Loop (Active) |
| Heating System: | Batch / ICS (Passive) | Connection Type: | Direct-Plug | Installation: | Wall Mounted |
| Housing Material: | Stainless Steel | Certification: | CE, EMC, EMF, GS, Other, SASO, UL, UR, CE, EMC, EMF, GS, RoHS, SASO, UL, UR | Capacity: | 200 |
| Place of Origin: | Zhejiang, China | Brand Name: | TONG HUA | Model Number: | solar water heater |
Product Description
Specifications
Solar Water Heating System, Unpressurized Solar Water Heater, CE Approved, Solar Keymark, Vacuu tube solar water heaterSolar Water Heating System Detailed description:
1) Inner tank : stainless steel SUS 304-0.5mm; high grade porcelain enamel.
2) Out tank: painted steel-0.4mm; Aluminum-zinc coated steel-0.45mm; stainless steel SUS 430 or SUS 202-0.4mm.
3) Vacuum tubes: AL-N/AL coated,Φ47-1500mm/Φ58-1800mm
4) Frame: coated galvanized steel sheet-1.5mm; stainless steel SUS 430-1.5mm.
5) The insulation layer: polyurethane 50mm/60mm/65mm with high density.
6) The reflector: Aluminum component: AL99.85% surface oxidation; stainless steel.
7) Stronger wind, snow, and hailstone resistant ability
8) The hot water system fitting for families and work units in mass storage and large trend.
Model | Area(m2) | Vacuum tube | Volume | GW | Qty. per 20/40 Container | ||
f(mm) | Length(mm) | Qty(pcs) | |||||
TH-420-47/1500-15 | 1.87 | 47 | 1500 | 15 | 84 | 68 | 56/118/134 |
TH-420-47/1500-18 | 2.25 | 47 | 1500 | 18 | 100 | 71 | 48/104/118 |
TH-420-47/1500-20 | 2.50 | 47 | 1500 | 20 | 111 | 76 | 45/96/108 |
TH-420-47/1500-24 | 3.00 | 47 | 1500 | 24 | 133 | 83 | 38/84/96 |
TH-420-47/1500-30 | 3.75 | 47 | 1500 | 30 | 166 | 88 | 34/74/81 |
TH-470-47/1500-15 | 1.87 | 47 | 1500 | 15 | 113 | 70 | 52/114/128 |
TH-470-47/1500-18 | 2.25 | 47 | 1500 | 18 | 139 | 75 | 40/88/100 |
TH-470-47/1500-20 | 2.50 | 47 | 1500 | 20 | 150 | 78 | 38/80/92 |
TH-470-47/1500-24 | 3.00 | 47 | 1500 | 24 | 179 | 87 | 34/70/78 |
TH-470-47/1500-30 | 3.75 | 47 | 1500 | 30 | 226 | 96 | 33/64/68 |
TH-470-58/1500-15 | 2.01 | 58 | 1500 | 15 | 122 | 60 | 47/98/106 |
TH-470-58/1500-18 | 2.22 | 58 | 1500 | 18 | 155 | 62 | 44/88/90 |
TH-470-58/1500-20 | 2.49 | 58 | 1500 | 20 | 165 | 65 | 36/75/80 |
TH-470-58/1500-24 | 2.97 | 58 | 1500 | 24 | 200 | 72 | 32/66/72 |
TH-470-58/1500-30 | 3.69 | 58 | 1500 | 30 | 250 | 80 | 25/52/55 |
TH-470-58/1800-15 | 2.38 | 58 | 1800 | 15 | 122 | 71 | 42/88/100 |
TH-470-58/1800-18 | 2.66 | 58 | 1800 | 18 | 155 | 74 | 36/76/80 |
TH-470-58/1800-20 | 2.99 | 58 | 1800 | 20 | 165 | 77 | 32/68/72 |
TH-470-58/1800-24 | 3.56 | 58 | 1800 | 24 | 200 | 85 | 26/56/60 |
TH-470-58/1800-30 | 4.42 | 58 | 1800 | 30 | 250 | 93 | 22/46/52 |
