Flat Plate Solar Water Heater

Name: Flat Plate Solar Water Heater
Brand: TONG HUA
SKU: 128769771
Availability: InStock

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Flat-Plate

Pressure:

Unpressurized

Circulation Type:

Direct / Open Loop (Active)

Haining Tonghua Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Flat-Plate

Pressure Unpressurized

Circulation Type Direct / Open Loop (Active)

Heating System Batch / ICS (Passive)

Connection Type Direct-Plug

Certification CE

Place of Origin Zhejiang, China

Brand Name TONG HUA

Model Number Flat Plate Solar Water Heater

Specifications

Flat Plate Solar Water Heater, CE Certificate, flat panel solar water heater

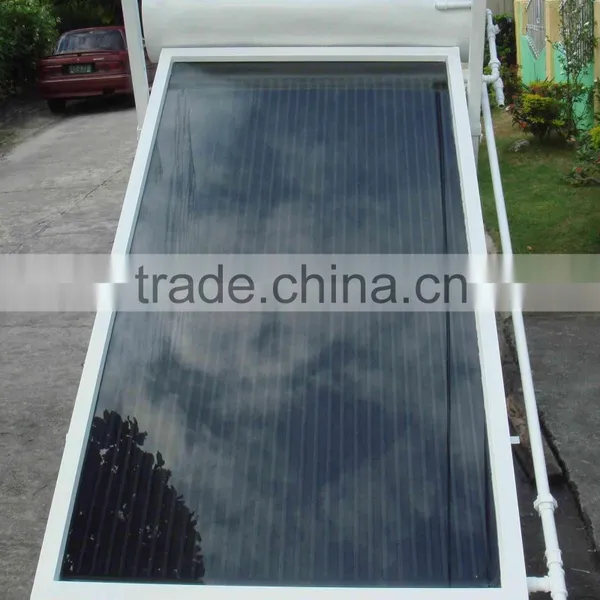

Flat Plate Solar Water Heater

Characteristics:

1) Special design for Europe market .

2) Special Anodized aluminum alloy frame to ensure handsome appearance

3) Can accept high pressure without leakage50mm fiberglass insulation

4) EPDM seal strip to assure the solar collector can work under harsh and very cold temperature

5) Operation Temperature -33∼120

6) Patterned temper glass or low iron temper glass (4mm thickness)

7) Is not easy broken with very high transmission and low emission

8) Black chrome or Magnetic blue sputtering coating has very higher absorption rate to ensure the high efficiency.

Description	Specification
Collect type	FP3.0-A
Dimension	LXWXH
Gross area	2.03m2
Aperture area	1.84m2
Absorber area	1.73m2
Total weight of empty collector	41.6kg
Transparent cover
Number of covers	1
Dimension of the opening	1970X970mm
Cover material	Tempered textured glass(no marking on the glass)
Cover thickness	4mm
Cover transmission	85%-87%
absorber
Dimension LXW	1840X950
Material	Red copper
Surface treatment	Black chromed/blue sputtered
Construction type	Fin&tube(ultrasonic welding)
Header material	Copper T2(Chinese standard)
Header tuber size	Φ25mmX0.8 2pcs
Riser material	Copper T2(Chinese standard)
Riser tuber size	Φ10mmX0.6 8pcs
Fill capacity	1.8L including the header pipe
Thermal insulation
Insulation material	Fiber glass Insulation(black backing)
Insulation thickness	Back 50mm
Conductivity(w/mk)	0.048w/m.k under test temperature 70°C
Casing
Frame	Aluminum alloy
Frame color	Bronze
Back plate	Galvanized steel plate 0.21mm
Max operation temperature	200°C
Maximum pressure	1400kpa
Sealing gasket	EPDM
Limitations of operation
Max. working temperature	120°C
Max. working pressure	10bar
Max. pressure that cover can support	1000pa
Max. pressure allowed between fixing and case	1000pa
Recommended circulation flow	Glycol/water
Resistance to freezing	Not under minus 33°
