Help Center2013 Mini Load Cell AM601
Related Products
Recommended Platform size: 250×350(mm)

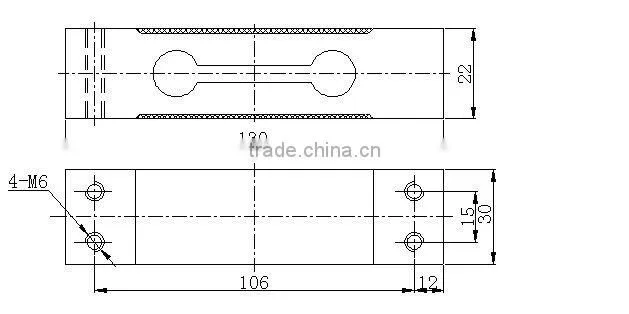

Size: 130x22x30(mm) Thread hole: 4-M6
It uses 4-core shielded cable (φ4×420mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision
Product Characteristics:

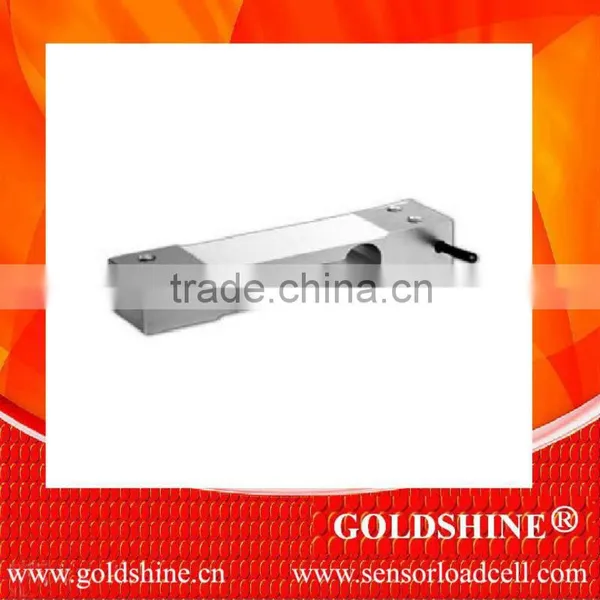

Mini sensor AM601Colorless anodized; Hermetically sealed with glue to IP65. The Aluminum Load Cell is a low profile single point load cell designed for direct mounting of low cost weighing platforms. Its small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for floor scale ,electronic floor scale, low profile floor scale ,digital floor scale, floor weighing scale, floor balance scale, frameless floor, frame type floor scale, explosion-proof floor scale, moveable floor scale, bench scale, cattle scales, pit scale, track scale, digital platform balances, digital weight balance,digital scale balance,digital precision balance,digital counting balance,digital electronic balance,digital body balance, platform balances, platform scale, baby scale.
Technical Parameter:
Rated Load |
3/5/6/10/15/20/30/40/50/60/100/120kg |
Comprehensive Error: |
0.017%F.S & 0.02%F.S |
Rated Output: |
1±0.1 & 2±0.1mV/V |
Non-Linearity: |
0.017%F.S & 0.02%F.S |
Hysteresis: |
0.017%F.S & 0.02%F.S |
Repeatability: |
0.01%F.S & 0.02%F.S |
Creep: |
0.017%F.S/30min & 0.02%F.S/10min |
Zero Balance: |
±1%F.S |
Input Resistance: |
405±10Ω |
Output Resistance: |
350±3Ω |
Insulation Resistance: |
≥5000MΩ(100VDC) |
Excitation Voltage: |
9VDC~12VDC |
Compensated Temp. Range: |
-10°C~+40°C |
Use Temp. Range: |
-20°C~+60°C |
Temp. Effect On Zero: |
0.017%F.S/10°C & 0.03%F.S/10°C |
Temp. Effect On Span: |
0.014%F.S/10°C & 0.02%F.S/10°C |
Safe Overload: |
120% |
Ultimate Overload: |
150% |
Defense Class: |
IP65 |
