CS-SW6W load link load cells series have been designed for lifting and weighing in rugged or harsh environments, being manufactured from high tensile aluminum to minimum weight (has steel bushes to provide added wear protection from shackles etc).
CS-SW6W load link load cells series are simple to install and are matched to standard shackle sizes. The have a built in display which can be selected by the user to display the applied weight or force in t, kg, lb or kN. There is an in-built audible alarm, which can be set by the operator, to warn when an applied weight/force level is met.

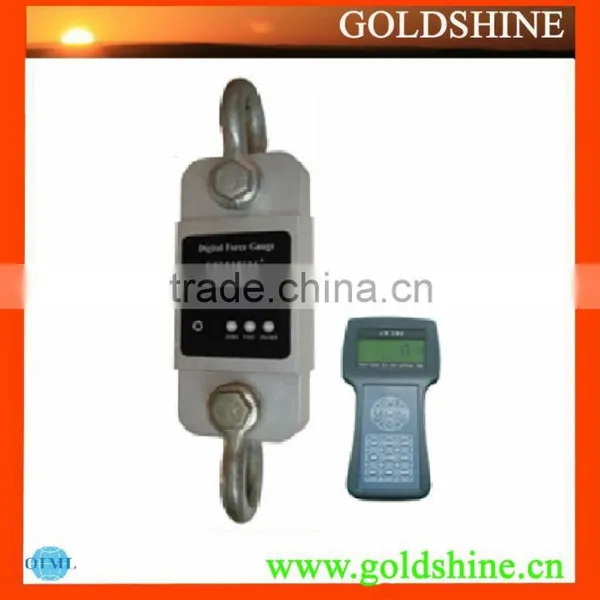

CS-SW6W load link load cells for applications where the operator is unable to read the display, there is a handheld remote available. This remote replicates exactly, all the functionality that is available on the link itself.
CS-SW6W load link load cells other features that are available include Peak Hold, Gross/Net, Pre-set Tare entry. There is also a RS485 digital output available. LCM Systems can offer a software design facility to design bespoke software to meet any specific application requirements that may be required.
Main Technical Data:
Display: |
25mm (1’’) 5digits LCD |
Power On Zero Range: |
20% F.S. |
Manual Zero Range: |
4% F.S. |
Tare Range: |
20% F.S. |
Stable Time: |
≤10seconds; |
Overload Indication: |
100% F.S. + 9e |
Max. Safety Load: |
125% F.S. |
Ultimate Load: |
400% F.S. |
Battery Life: |
≥40 hours |
Battery Type: |
“LR6(AA)”size alkaline batteries. 1.5V*3 |
Operating Temp: |
- 10°C ~ + 40°C |
Operating Humidity: |
≤85% RH under 20°C |
Remote Controller Distance: |
Min. 15m |
Wireless Frequency: |
2.4GHz(default),433MHz,860MHz(optional) |
Wireless Distance: |
Min. 80m(default) [200m(optional)] |

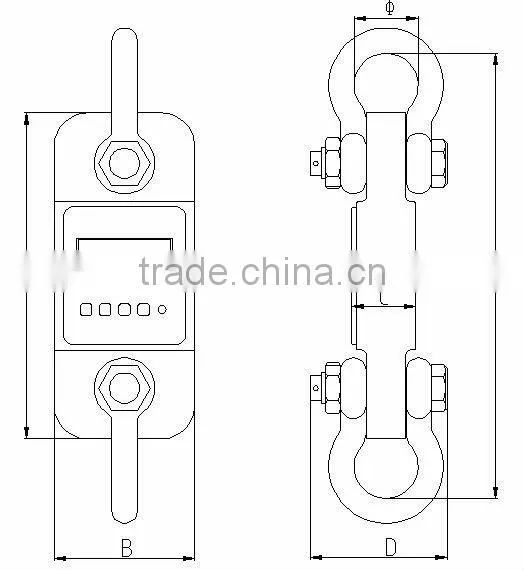

DIMENSIONS(Dimensions shown are nominal and subject to tolerances)
Model |
CAP |
Div |
A |
B |
C |
D |
φ |
H |
Material |
(mm) |
|||||||||
CS-SW6W-01 |
1t |
0.5kg |
245 |
112 |
37 |
190 |
43 |
335 |
Aluminum |
CS-SW6W-02 |
2t |
1kg |
245 |
116 |
37 |
190 |
43 |
335 |
Aluminum |
CS-SW6W-03 |
3t |
1kg |
260 |
123 |
37 |
195 |
51 |
365 |
Aluminum |
CS-SW6W-05 |
5t |
2kg |
285 |
123 |
57 |
210 |
58 |
405 |
Aluminum |
CS-SW6W-10 |
10t |
5kg |
320 |
120 |
57 |
230 |
92 |
535 |
Alloy Steel |
CS-SW6W-20 |
20t |
10kg |
420 |
128 |
74 |
260 |
127 |
660 |
Alloy Steel |
CS-SW6W-30 |
30 |
10kg |
420 |
138 |
82 |
280 |
146 |
740 |
Alloy Steel |
CS-SW6W-50 |
50t |
20kg |
465 |
150 |
104 |
305 |
184 |
930 |
Alloy Steel |
CS-SW6W-100 |
100t |
50kg |
570 |
190 |
132 |
366 |
229 |
1230 |
Alloy Steel |
CS-SW6W-200 |
200t |
100kg |
725 |
265 |
183 |
440 |
280 |
1380 |
Alloy Steel |
