Home > Electrical & Electronics > Sensor > Pressure Sensor > Tension Load Cell Pull Load Cell

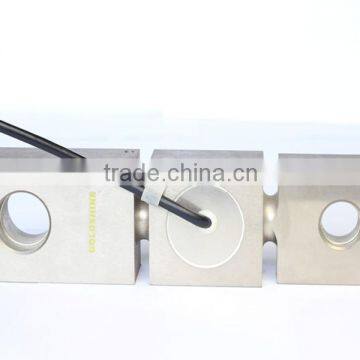

Tension Load Cell Pull Load Cell

Name: Tension Load Cell Pull Load Cell
Brand: GOLDSHINE
SKU: 128765023
Availability: InStock

Tension Load Cell Pull Load Cell thumbnail-1

Tension Load Cell Pull Load Cell thumbnail-2

Tension Load Cell Pull Load Cell photo-1

Tension Load Cell Pull Load Cell photo-2

US$ 60 - 130 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS209

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS209

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

Unit: mm

Cap/Size	L	L1	H	H1	W	D
2t,3t,5t	227	147	70	68	40	28
10t,15t	340	210	100	75	50	38
20t,30t	340	210	100	75	50	54

Features:

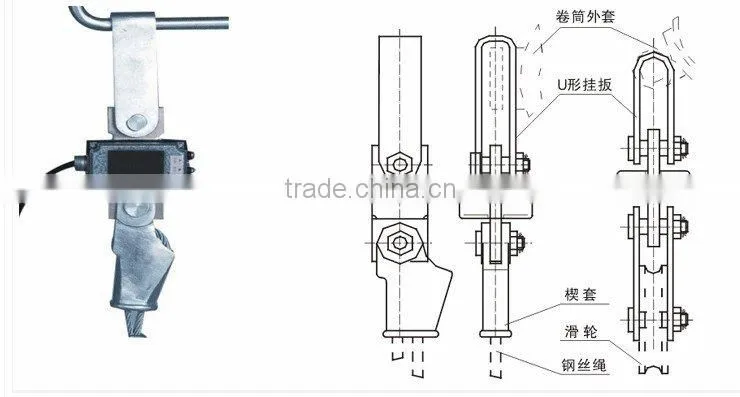

1:Plate-ring load cell are installed in the side by a fixed rope, etc. to measure tension of a load cell, its bottom two holes through the pin, hanging panels, with wire rope connected to form a taut state, to measure the pull rope .
2:Such products are mainly used for electric hoist and load cell not easy installed on the crane.
3:Stainless steel construction, corrosion resistance and anti-rust performance, applicable to a variety of harsh environments.
4:High precision, used for overload protection, while the weight can be accurately measured.

Technical Parameter:

Rated Load	2/3/5/10/15/20/30t
Sensitivity	(1.5±0.1%) mV/V
Combined Error	±0.05% F.S
Creep Error(30min)	±0.03% F.S
Zero Balance	±1% F.S
Temp. Effect On Zero:	±0.05% F.S/10°C
Temp. Effect On Span:	±0.05% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	350±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67
Element Material:	Alloy Steel/ Stainless Steel
Cable:	Length=L:3m
Citation	GB/T7551-1997/ OIML R60
Mode Of Connection	Red(Input+),Black(Input-),Green(Output+),White(Output-)
