Home > Electrical & Electronics > Sensor > Pressure Sensor > Electronic Scale Sensor Load Cell

Electronic Scale Sensor Load Cell

Name: Electronic Scale Sensor Load Cell
Brand: GOLDSHINE
SKU: 128765049
Availability: InStock

Electronic Scale Sensor Load Cell thumbnail-1

Electronic Scale Sensor Load Cell thumbnail-2

Electronic Scale Sensor Load Cell thumbnail-3

Electronic Scale Sensor Load Cell thumbnail-4

Electronic Scale Sensor Load Cell thumbnail-5

Electronic Scale Sensor Load Cell thumbnail-6

Electronic Scale Sensor Load Cell photo-1

Electronic Scale Sensor Load Cell photo-2

Electronic Scale Sensor Load Cell photo-3

Electronic Scale Sensor Load Cell photo-4

Electronic Scale Sensor Load Cell photo-5

Electronic Scale Sensor Load Cell photo-6

US$ 22 - 35 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS208

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS208

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

Product Characteristics:

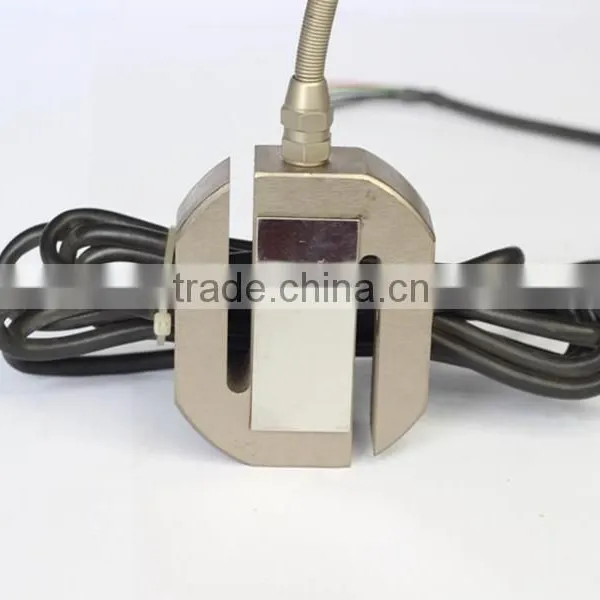

GS208 Load cell are available in the capacities 0.5t~7.5t. They offer alloy steel or total stainless steel construction, complete hermetic sealing, oil proof, water proof and anti-corrosion making them suitable for use in all kinds of environments. S beam design, tension and or compression loading possible, easy installation and flexible application. It is suitable for hanging scales, mechanical scales, hopper scales and other electronic weighing devices. It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.

Technical Parameter:

Rated Load	300/500/800kg,1/1.5/2/3t
Sensitivity	(2.0±0.1%) mV/V
Combined Error	±0.02% F.S
Creep Error(30min)	±0.02% F.S
Zero Balance	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10°C
Temp. Effect On Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	352±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel, Stainless Steel
Cable:	Length=L:3m(0.5t) ; 5m(1~7.5t)
Citation	GB/T7551-1997/ OIML R60
Mode Of Connection	Red(Input+),Black(Input-),Green(Output+),White(Output-)
