Home > Electrical & Electronics > Sensor > Pressure Sensor > GS205 Pressure Load Cell

GS205 Pressure Load Cell

Name: GS205 Pressure Load Cell
Brand: GOLDSHINE
SKU: 128765085
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS205

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS205

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

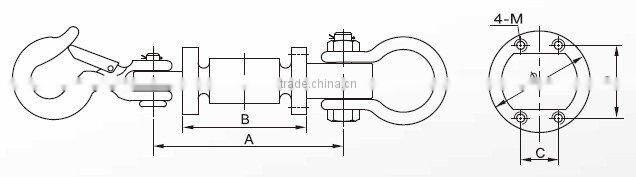

Unit: mm

Cap./ Size	A	B	C	D	φ	M
1t	130.0	74.0	16.0	37.0	48.0	M6
2t	150.0	82.0	22.0	47.0	62.0	M6
3t	150.0	82.0	22.0	47.0	62.0	M6
5t	188.0	103.0	28.0	56.0	72.0	M6
10t	230.0	120.0	28.0	66.0	82.0	M6

Product Characteristics:

GS205 series is special load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. High precision, strong overload protection capacity and anti-deflective loading. The load cell with special hook and ring, easy installation.

Technical Parameter

Rated Load:	1/2/3/5/10t
Sensitivity:	(1.5±0.1%) m V/V
Combined Error:	±0.02% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10°C
Temp. Effect On Span:	±0.02% F.S/10°C
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	A:Alloy Steel, SS:Stainless Steel
Cable:	Length=L:1m
Citation:	GB/T7551-1997/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
