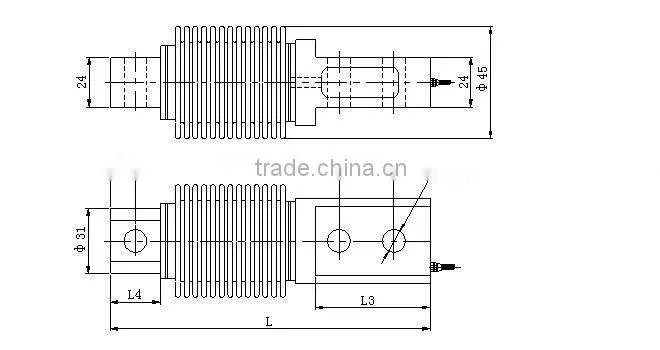

Unit: mm
Cap/Size | L | L1 | L2 | L3 | L4 | D |
25-50kg | 152 | 22 | 12 | 52 | 42 | 8.5 |
100-500kg | 168 | 28 | 19 | 62 | 48 | 11 |
750~1000kg | 210 | 40 | 22 | 70 | 56 | 13 |
Product Characteristics:
Single ended beam load cells GS338 series load cell are available in the capacities 10~1000kg. Single point with bellow, they are suitable for belt scale, hopper scale,weighing system, counting scale, bench scales, electronic bench scale ,digital bench scale, weighing bench scale, mechanical bench scales, waterproof scale, washdown bench scale ,body scales , livestock weigh scales, electronic cattle scales, cattle scales, animal scale suppliers, animal scale manufacturers, livestock scale, animal scales, portable livestock scale, livestock animal scale, baby scale, bathroom personal scale, food scale ,medical scale, digital weight balance, digital counting balance,digital electronic balance,digital body balance.
Technical Parameter:
Rated Load: | 10/20/30/50/75/100/150/200/250/300/500/700/1000kg |
Sensitivity: | (2.0±0.1%) mV/V |
Combined Error: | ±0.02% F.S |
Creep Error(30min): | ±0.02% F.S |
Zero Balance: | ±1% F.S |
Temp. Effect On Zero: | ±0.02% F.S/10°C |
Temp. Effect On Span: | ±0.02% F.S/10°C |
Input Resistance: | 385±5Ω |
Output Resistance: | 352±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temp. Range: | -30~+70°C |
Maximum Safe Over Load: | 150%F.S |
Ultimate Over Load: | 300%F.S |
Recommend Excitation: | 10~12V DC |
Maximum Excitation: | 15V DC |
Sealing Class: | IP68 |
Element Material: | Alloy Steel, Stainless Steel |
Cable: | Length=L:3m |
Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
