1.low profile,Easy installation
2.suitable for floor scale,automobile test facilities,hopper scale and electronic weighing

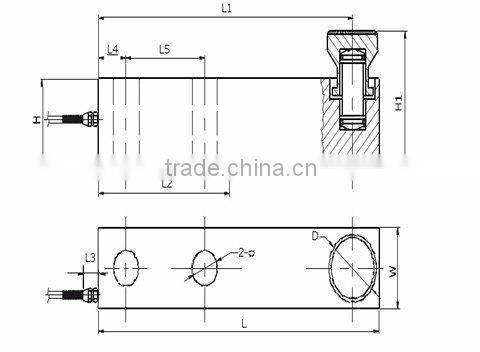

Cap./Size | L | L1 | L2 | L3 | L4 | L5 | H | H1 | ø | D | W |
0.5/1/2/3t | 203 | 181 | 95 | 24 | 19 | 64 | 43 | 57.9 | 13 | 35 | 37 |
5/8t | 235 | 213 | 110 | 24 | 23 | 66 | 52 | 78.9 | 21 | 42 | 48 |
10t | 279 | 247 | 133 | 24 | 25 | 82 | 67 | 127.7 | 28 | 57 | 60 |
20t | 318 | 280 | 153 | 24 | 32 | 89 | 82.5 | 143.5 | 34 | 70 | 70 |
Product Characteristics:
Shear beam load cell GS340 series is single shear beam. We can produce with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale and other electronic weighing devices, truck scales, Weighing Scale, weighing equipment, weighing, weigh, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, fully automatic truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales
Technical Parameter:
Rated Load: | 0.5/1/2/3/5/7.5/8/10/20t |
Sensitivity: | (2.0±0.1%) m V/V |
Combined Error: | ±0.02% F.S |
Creep Error(30min): | ±0.02% F.S |
Zero Balance: | ±1% F.S |
Temp. Effect On Zero: | ±0.02% F.S/10°C |
Temp. Effect On Span: | ±0.02% F.S/10°C |
Input Resistance: | 385±5Ω |
Output Resistance: | 351±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temperature Range: | -30~+70°C |
Maximum Safe Over Load: | 150%F.S |
Ultimate Over Load: | 250%F.S |
Recommend Excitation Voltage: | 10~12V DC |
Maximum Excitation Voltage: | 15V DC |
Sealing Class: | IP67/IP68 |
Element Material: | Alloy Steel/ Stainless Steel |
Cable: | Length=L:6m |
Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
