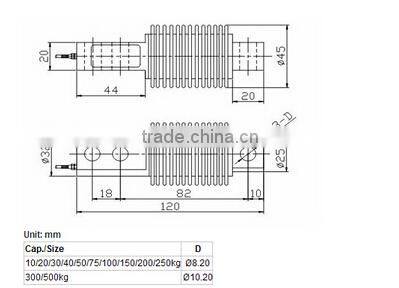

Product Characteristics:
GS339 series load cell are available in the capacities 20kg to 500kg. They offer alloy steel or total stainless steel construction, below hermetic sealing, oil-proof, waterproof and anti-corrosion making them suitable for all kinds of environment. Single point with bellow, easy installation, flexible application and they are suitable for belt scale, hopper scale, weighing systems and other electronic weighing devices. It is safety and ant- explosion product that can be used in atrocious weather and hazardous areas.
Technical Parameter:
Rated Load: | 10/20/30/50/75/100/150/200/250/300/500kg |
Sensitivity: | (2.0±0.1%) mv/v |
Combined Error: | ±0.02% F.S |
Creep Error(30min): | ±0.02% F.S |
Zero Balance: | ±1% F.S |
Temp. Effect On Zero: | ±0.02% F.S/10°C |
Temp. Effect On Span: | ±0.02% F.S/10°C |
Input Resistance: | 385±5Ω |
Output Resistance: | 352±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temperature Range: | -30~+70°C |
Maximum Safe Over Load: | 150%F.S |
Ultimate Over Load: | 300%F.S |
Recommend Excitation Voltage: | 10~12V DC |
Maximum Excitation Voltage: | 15V DC |
Sealing Class: | IP68 |
Element Material: | Alloy Steel, Stainless Steel |
Cable: | Length=L:3m |
Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
