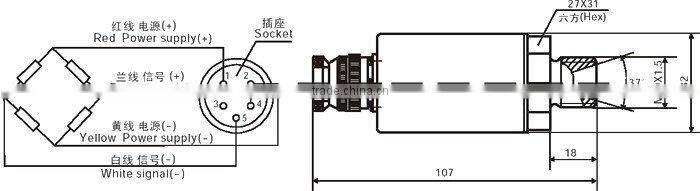

Help CenterPressure Transducer Load Cell YB15
Related Products
Specifications
1.It can be used match numeral pressure indicators or record instruments2.Small volume,light weight and very convenient to use
Features:
High accuracy, high reliability and good stability
Airproofed structure with high stability
Small volume, light weight and very convenient to use
It's suitable for precision measuring all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly, It also can be used to match numeral pressure indicators or record instruments.
Specifications:
Capacity: |
MPa |
20/25/30/35/40/50/60/70/80/100 |
Non-Linearity: |
%FS |
0.1 |
Non-Repeatability: |
%FS |
0.1 |
Hysteresis: |
%FS |
0.1 |
Temperature Effect On Zero: |
%FS/10°C |
0.1 |
Temperature Effect On Span: |
%FS/10°C |
0.1 |
Terminal Resistance, Output: |
Ω |
700+7 |
Insulation Resistance: |
MΩ |
1000 |
Output Sensitivity: |
mV/V |
1.5+0.2 |
Zero Balance: |
mV |
≤+1 |
Excitation, Recommended: |
V |
9-12 |
Excitation, Permission: |
V |
6-18 |
Temperature, Compensated: |
°C |
-10-+50 |
Temperature, Operating: |
°C |
-20-+65 |
Safe Overload: |
%FS |
150 |
Ultimate Overload: |
%FS |
200 |
Note
High accuracy, high reliability and good stability
Airproofed structure with high stability
Small volume, light weight and very convenient to use
It's suitable for precision measuring all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly, It also can be used to match numeral pressure indicators or record instruments.
