Features:
High accuracy, high reliability and good stability.
Small volume, light weight and very convenient to use.
It's suitable for precision measuring all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly, It also can be used to match numeral pressure indicators or record instruments.
Specifications:
Capacity: | MPa | 1/2/3/4 |
Output Sensitivity: | mV/V | 1.0±0.1 |
Non-Linearity: | %FS | 0.2, 0.1 |
Repeatability: | %FS | 0.2, 0.1 |
Hysteresis: | %FS | 0.2, 0.1 |
Temperature Effect On Zero: | %FS/10°C | 0.2, 0.1 |
Temperature Effect On Span: | %FS/10°C | 0.2, 0.1 |
Zero Balance: | mV | ≤±1 |
Terminal Resistance, Output: | Ω | 950-1100 |
Insulation Resistance: | MΩ | 1000(100VDC) |
Excitation, Recommended: | V | 9-12(DC/AC) |
Excitation, Permission: | V | 6-18(DC/AC) |
Temperature, Compensated: | °C | 20-+70 |
Temperature, Operating: | °C | -20-+80 |
Safe Overload: | %FS | 120 |
Ultimate Overload: | %FS | 150 |
Note

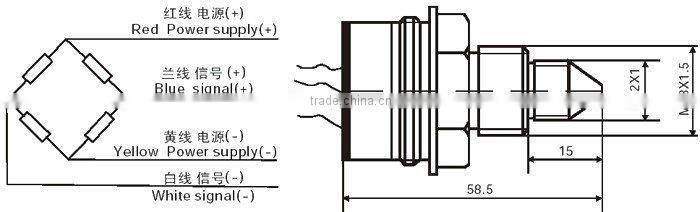

When installing please use the flat end airproofed connector with the screw thread of M14×1.5,inside wimble is 37°(If the customers need the connector with other screw thread, please give the special order to the company).
The medium material that meets: Titanium-alloy.
The pressure transducers are connected with indicator through sockets.
FAQ:
1. What is the MOQ?
If we don’t have it in stock, the MOQ is 5 pcs
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 7 working days.
If we don’t have it in stock, the lead time will be 30-45 days.
3. What is the payment terms?
T/T, Western Union, is acceptable.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
