Help CenterPressure Controller / Load Cell YB6
Related Products
Specifications
1.High accuracy and high reliability2.Airproofed structure with high stability
3.It's suitable for precision measuring
Features:
High accuracy and high reliability.
Airproofed structure with high stability.
Small volume, light weight and very convenient to use.
It's suitable for precision measuring all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly. It also can be used to match digital pressure indicators or record instruments.
Specifications:
Capacity: |
MPa |
20/25/30/35/40/45/50/60 |
Output Sensitivity: |
mV/V |
2.0±0.1 |
Non-Linearity: |
%FS |
0.1/0.2/0.3 |
Non-Repeatability: |
%FS |
0.1/ 0.2/ 0.3 |
Hysteresis: |
%FS |
0.1/ 0.2/ 0.3 |
Temperature Effect On Zero: |
%FS/10°C |
0.1/ 0.2/ 0.3 |
Temperature Effect On Span: |
%FS/10°C |
0.1/ 0.2/ 0.3 |
Zero Balance: |
mV |
≤±1 |
Terminal Resistance, Output: |
Ω |
350+7 |
Insulation Resistance: |
MΩ |
1000(100VDC) |
Excitation, Recommended: |
V |
9-12 |
Excitation, Permission: |
V |
6-18 |
Temperature, Compensated: |
°C |
-10-+50 |
Temperature, Operating: |
°C |
-20-+65 |
Safe Overload: |
%FS |
120 |
Ultimate Overload: |
%FS |
150 |
Note:

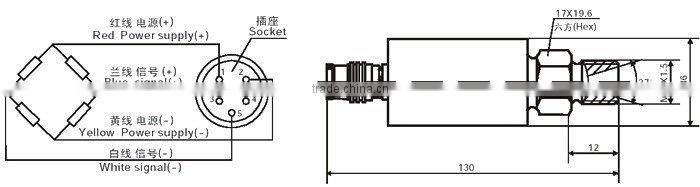

When installing please use the flat end airproofed connector with the screw thread of M14×1.5,inside wimble is 37°(If the customers need the connector with other screw thread, please give the special order to the company).
The medium material that meets: Stainless steel.
The pressure transducers are connected with indicator through sockets.
