Water Load Test Weights

Water Load Test Weights thumbnail-1
Water Load Test Weights photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
WBB
Contact Supplier Request Quote Chat Now
Ningbo Goldshine Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GOLDSHINE
Model Number WBB







Product Description

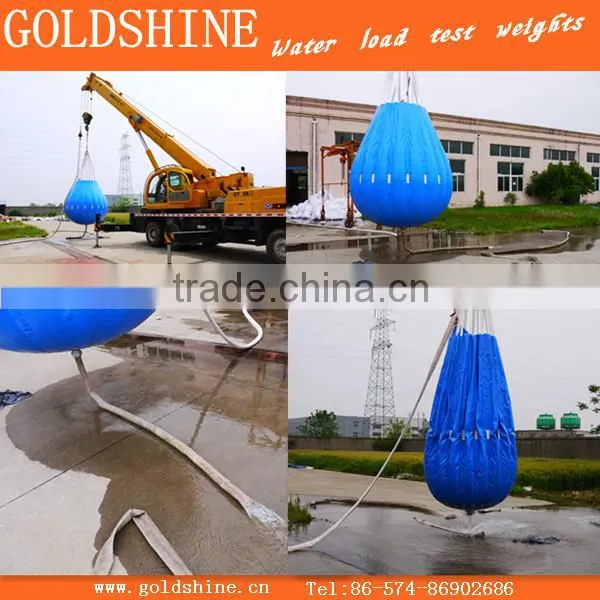

GOLDSHINE-test weights of 1ton - 50t capacity are of the most modern design based on 20 years manufacturing experience in heavy duty flexible structures. All units are constructed using procedures controlled by ISO 9001:2008. The use of Water Weights for load testing cranes, davits, derricks, winches or any item of lifting equipment is recognized worldwide as the most safe, efficient and cost effective system of load application.Water Weights' bags weigh less than 2% of achievable load allowing for considerable savings in transport, storage and labor costs. A comprehensive range of water bags is available. Combining varying capacities with specially designed beams results in high accuracy especially in large load tests.

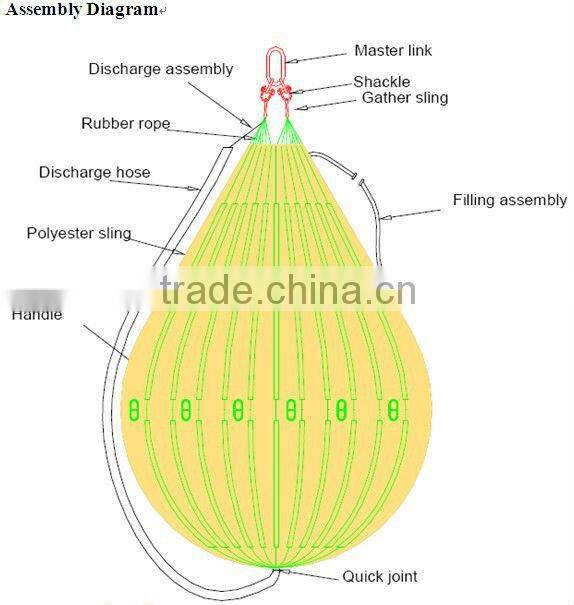

GOLDSHINE WATER FILLED TEST WEIGHTS

High performance structural fabric canopy.

All RF welded seams for strength and integrity.

Webbing harness terminates with single steel lifting ring.

Heavy duty UV stabilised PVC coating.

Handling ladders.

Versatile filling and discharge arrangement.

Can be used singly or in clusters for load test of up to 300t on one hook.

Multiple clusters can be used for testing higher loads.

Water Weights has a physically proven factor for safety in excess of 6:1 and is proof load tested to over 2:1 prior to being put into service.

Issued with Log Book, Certification, Service Record Log and Instructions

Delivered ready for immediate use.



Water load test weights





Type

Filled

Itself Weight

(kg)

Packaging Volume

(m³)

Material Weight Per Square

(g)

Cap.

(kg)

Vol.

(m³)

Height

(m)

Dia.

(m)

WBB-0.25t

250kg

0.25

1.2

0.8

8kg

0.5

1300g

WBB-0.5t

500kg

0.5

1.5

1

10kg

0.5

1300g

WBB-1t

1000kg

1

1.8

1.2

19kg

0.7

1300g

WBB-2t

2000kg

2

2.3

1.5

22kg

0.7

1300g

WBB-3t

3000kg

3

2.7

1.8

28kg

0.7

1300g

WBB-4t

4000kg

4

2.9

1.9

52kg

1.1

1300g

WBB-5t

5000kg

5

3.3

2.3

67kg

1.1

1300g

WBB-6t

6000kg

6

3.4

2.4

84kg

1.1

1300g

WBB-8t

8000kg

8

3.6

2.54

104kg

1.1

1300g

WBB-10t

10000kg

10

3.9

2.65

108kg

1.1

1300g

WBB-13t

13000kg

13

4.2

2.9

128kg

1.1

1300g

WBB-15t

15000kg

15

4.35

3

130kg

1.1

1580g

WBB-20t

20000kg

20

6

3.5

156kg

1.5

1580g

WBB-25t

25000kg

25

6.1

3.9

190kg

1.5

1580g

WBB-35t

35000kg

35

6.8

4.3

300kg

2.1

2580g

WBB-40t

40000kg

40

7.4

4.5

390kg

2.6

2580g

WBB-50t

50000kg

50

7.7

5.1

450kg

2.6

2580g
