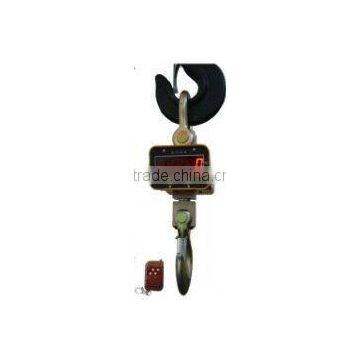

JXCS-Eused in Construction engineering machinery Crane Scale

Standard:

According to OIML class III

Display:

30mm (1.2'') 5digits LCD/LED

Zero Range:

4% F.S.

Tare Range:

20% F.S.

Stable Time:

≤10 seconds

Overload Indication:

100% F.S. + 9e

Max. Safety Load:

125% F.S.

Ultimate Load:

400% F.S.

Battery Life:

≥70 hours

Battery Type:

Fully sealed Lead-Acid battery, 6V/7Ah

Adapter:

DC9V/1000mA

Operating Temp.:

- 10℃ ~ + 40℃

Operating Humidity:

≤85% RH under 20℃

Remote Controller Distance:

Min. 15m

Wireless communicator:

(Opertion) 485MhZ

Connect the Indicator :JX280 or JX680

Model

Max Cap.(Kg)

Min. Weigh (Kg)

Division (Kg)

Total Display Counts (N)

JXCS -1-E

1000

10

0.5

2000

JXCS -2-E

2000

20

1

2000

JXCS -3-E

3000

20

1

3000

JXCS -5-E

5000

40

2

2500

JXCS -10-E

10000

100

5

2000

JXCS -15-E

15000

100

5

3000

JXCS -20-E

20000

200

10

2000

MODEL

A(mm)

B(mm)

C(mm)

H(mm)

N.W

JXCS -1-E

90

280

40

580

16kg

JXCS -2-E

90

280

40

580

16kg

JXCS -3-E

90

280

40

580

16kg

JXCS -5-E

110

280

45

670

18kg

JXCS-10-E

130

280

60

700

20kg

JXCS-15-E

95

280

66

733

50kg

JXCS-20-E

125

280

86

800

88kg

JXCS-30-E

145

280

101

920

132kg
