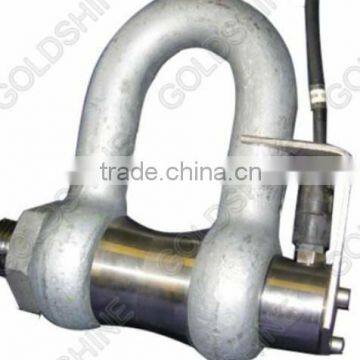

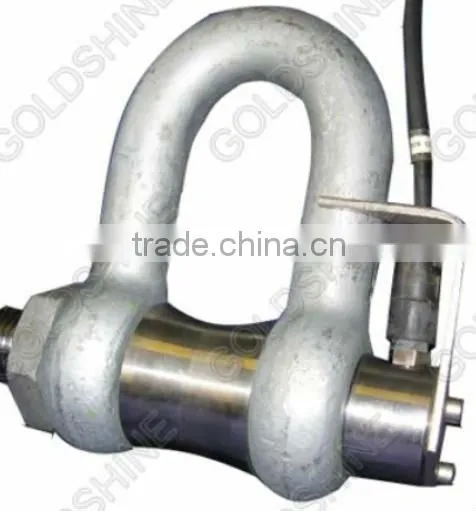

Shackle load cell
- 1000 Piece / Pieces per Month
- Ningbo or Shanghai
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Goldshine | Model Number: | LS01 |
Product Description
Description:
Shackles are recognized as simple and reliable standard components for chain and rope assemblies. By replacing the standard shackle with a load measuring shackle, the load in the line can easily be monitored. This is particularly useful in marine moorings and many other applications.
In a load measuring shackle the original pin is replaced with a load measuring pin, which has exceptional abilities under water in comparison to any other type of load cell. It is unaffected by the outside water pressure, but remains sensitive in the intended load measuring direction.
Our load measuring shackles are made using Green Pin bows as standard(‘D’or ‘Bow’). If necessary other bows can be specially selected or forged to achieve specific shape and size requirements. They are supplied with a fully calibration certificate.
Various options of cables, connectors and internal amplifier are also available to tailor a shackle for a special application. GOLDSHINE also supply a range of associated instrumentation.
Specification:
Capacity: | 3/6/10/17/25/35/50/75/100t |
Proof Load: | See Table Below |
Normal Output: | 2.0m V/V |
Recommended Excitation Voltage: | 10V |
Maximum Excitation Voltage: | 15V |
Zero Balance: | +/-2% of Rated Load |
Bridge Resistance: | 700 ohm nominal, Full bridge |
Operating Temperature: | -20°C to +80°C |
Accuracy: | Typically better than+/-0.75% if rated load |
No-Repeatability: | +/-0.1% if rated load |
Environmental Sealing: | Equivalent to IP68, As Required. |
150 to 1000t available on request.
Where particular requirements are critical or load cells of a higher specification are required, we would be delighted to assist.
Dimension:
Full Load Ton | Max Proof Load Ton | Normal Size ‘A’ | Inside Length ‘B’ | Inside Width ‘C’ | Bolt Dia. ‘D’ | Outside Eye ‘E’ | Unit Weight Kg |
3 | 4.2 | 25 | 85 | 43 | 28 | 60 | 3 |
6 | 8 | 25 | 85 | 43 | 28 | 60 | 3 |
10 | 14 | 32 | 95 | 51 | 35 | 76 | 6 |
17 | 23 | 38 | 125 | 60 | 41 | 92 | 10 |
25 | 34 | 45 | 150 | 74 | 51 | 105 | 15 |
35 | 47 | 50 | 170 | 83 | 57 | 127 | 22 |
50 | 67 | 65 | 200 | 105 | 70 | 152 | 40 |
75 | 100 | 75 | 230 | 127 | 83 | 165 | 60 |
100 | 134 | 89 | 270 | 146 | 95 | 205 | 100 |
