Help CenterSemi-automatic Card Embosser
Related Products
Specifications
1.Thickness of material: 0.4-0.8mm2.Size of material: 54*85.6
3.Productivity: 6000cards/hour
4.Weight Approx: 450 kg

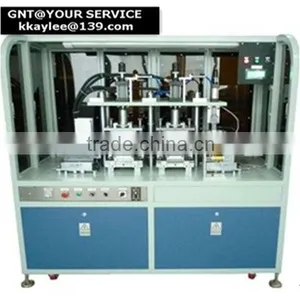

Card embosser YCT-3 can complete embossing and tipping at one time with the speed of 6000 cards per hour. It applies PLC, touch screen and Step-motion system from MITSUBISHI, There are 2 sets of character matrixes for both big size type and small size type. While changing the type, there is no need to change and install the matrixes. By setting program, it may eliminate the letters like “4” and “7”. The speed cannot be affected by the quantity of the code digits. This machine is not applicable for a random code.
Material |
PVC or other plastic material |
Thickness of materials |
0.4-0.8mm |
Size of materials |
54*85.6 |
Pressure of hydraulic system |
no more than 50 KG/cm2 |
Pressure of compressed air |
5 KG/cm2 |
Max. code digit |
19 digits, 3 fixed codes+16 digit number codes |
Power supply |
AC380V 50/60 Hz |
Power |
2.5KW |
Productivity |
6000cards/hour |
Dimension |
L1700*W800*H1700mm |
Weight |
Approx. 450 kg |
