Oxygen Generator
Principles
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2 is bigger than the quadrupole of O2, the adsorption capacity by molecular sieve to N2 is stronger than O2.When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve, the N2 gas is absorbed and O2 is obtained by separation.

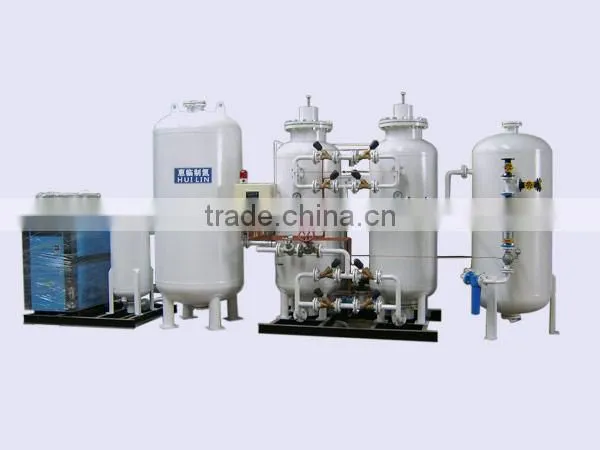

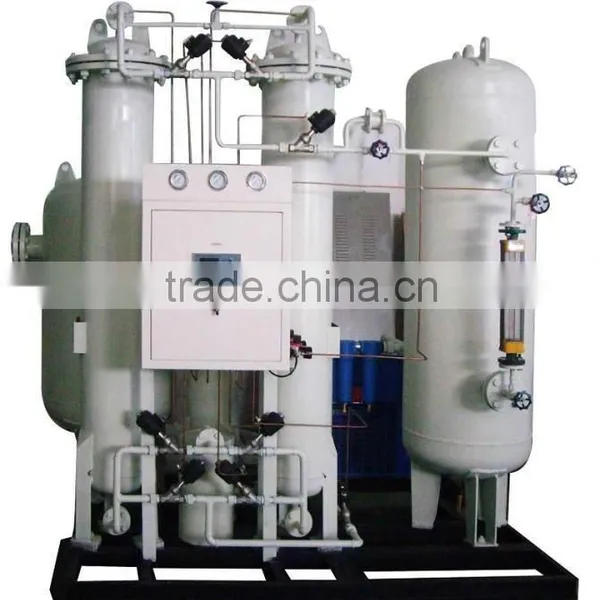

The main part of O2 generator is two towers filled with molecular sieve ,when the compressed air get into adsorption tower, the N2 is absorbed by molecular sieve,O2 is produced from the export terminal .When one tower produces O2,another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve.Two towers alternate adsorption and regeneration to output O2 continuously.
Specifications&Selection
PSA Oxygen Generator
Capacity: 3~3000Nm3/h
Purity: 90~98%
Outlet pressure: 0.1-0.8Mpa
| Model |
Flow (Nm3/hr) |
Air consumption (Nm3/min) |
Inlet (mm) |
Outlet (mm) |
| HL-WG-STDO-3 | 3 | 0.95 | 20 | 15 |
| HL-WG-STDO-6 | 6 | 1.9 | 25 | 15 |
| HL-WG-STDO-10 | 10 | 2.8 | 32 | 15 |
| HL-WG-STDO-20 | 20 | 5.6 | 40 | 20 |
| HL-WG-STDO-30 | 30 | 8.4 | 50 | 20 |
| HL-WG-STDO-50 | 50 | 14 | 65 | 25 |
| HL-WG-STDO-80 | 80 | 22 | 65 | 32 |
| HL-WG-STDO-100 | 100 | 28 | 80 | 32 |
| HL-WG-STDO-150 | 150 | 42 | 100 | 40 |
| HL-WG-STDO-200 | 200 | 56 | 125 | 40 |
Features
HUILIN oxygen generator has 4 strongpoints in PSA oxygen generator field,manufacturing energy-saving oxygen generator.
1.Excellent energy-saving
Unique distribution of gas flow, advanced energy-saving technology, excellent
molecular sieve make HUILIN oxygen plant energy-saving achieve 10~20% than
other do.
2.steady-going, long life-span
Unique clamping cylinder technology effectively extending the life of molecular
sieve.
3.High degree of automation
The automatic control technology could switch machines with one key, and have
remote and centralized operation with nobody control.
Paper and Pulp industries
Glass industries
Metallurgical industries
Chemical industries
Water and Wastewater treatment
Fish farming
