Specification of the equipment
Selections |
Specifications |
Remarks |
|
WG-STDO-110 |
Item No. |
WG-STDO-110 |
—— |
O2 Flow |
110Nm3/hour |
—— |
|
O2 Purity |
93±2% |
—— |
|
Export Pressure of O2 |
150Bar |
Adjustable |
|
O2 Dew Point |
-45°C |
Atmospheric |
|
Compressed Air Consumption |
1320 Nm3/hour |
6Bar |
|
Mode of operation |
Full automatic |
—— |
|
Specification of key machine
1 Air Compressor
Item |
Atlas Copco Screw Air Compressor
|
|
Item |
GA-132 |
|
Air Output |
≥24Nm3/min |
|
Export Pressure |
≥0.7Mpa |
|
Function |
Provide compressed air.
|
2 O2/N2 Separation System
Item |
Specifications |
Notes |
|
Item |
WG-STDO-110 |
HUILIN |
|
O2 Flow |
110Nm3/h |
Standard |
|
Compressed Air Consumption |
1320Nm3/hour |
Standard |
|
O2 Purity |
93±2% |
-------- |
|
Output Pressure |
4Bar |
Can be adjustment |
|
O2 Dew Point |
-45°C |
Atmospheric |
|
Running Time |
≥8600h/year |
Continuous Work |
|
Equipment Life |
20 years |
zeolite molecular sieve for 10 years. |

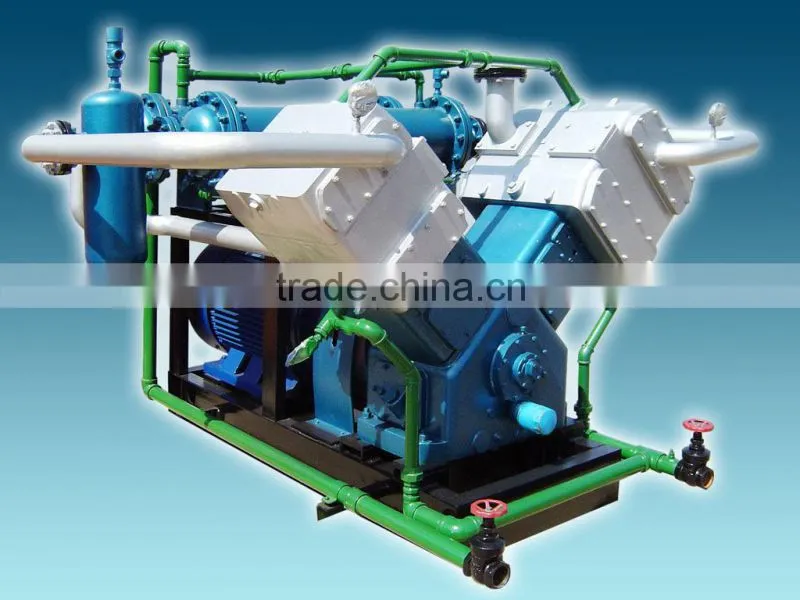

3 Oxygen Compressor
Item |
Oxygen Compressor
|
|
Type |
VW-2/41-150 |
|
Oxygen Output |
≥110Nm3/hour |
|
Export Pressure |
≥150Bar |
|
Function |
Provide compressed Oxygen
|
The Component Description

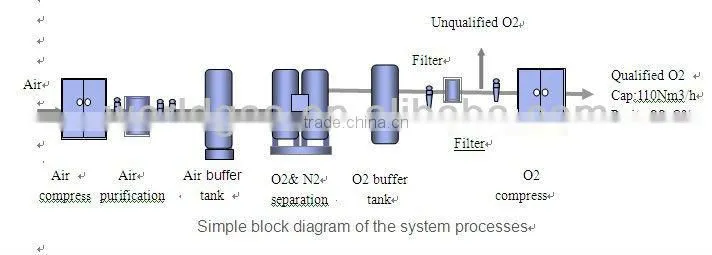

This PSA Oxygen Generator is composed of Air Compressed System, Air Purification System, Air Tank System, O2/N2 Separation System, Oxygen Buffer System, Oxygen Compressed System and Electrical Control System.
Specifications&Selection
PSA Oxygen Generator
Capacity: 3~3000Nm3/h
Purity: 93±2%
Outlet pressure: 0.1-0.8Mpa
| Model |
Flow (Nm3/hr) |
Air consumption (Nm3/min) |
Inlet (mm) |
Outlet (mm) |
| HL-WG-STDO-3 | 3 | 0.95 | 20 | 15 |
| HL-WG-STDO-6 | 6 | 1.9 | 25 | 15 |
| HL-WG-STDO-10 | 10 | 2.8 | 32 | 15 |
| HL-WG-STDO-20 | 20 | 5.6 | 40 | 20 |
| HL-WG-STDO-30 | 30 | 8.4 | 50 | 20 |
| HL-WG-STDO-50 | 50 | 14 | 65 | 25 |
| HL-WG-STDO-80 | 80 | 22 | 65 | 32 |
| HL-WG-STDO-100 | 100 | 28 | 80 | 32 |
| HL-WG-STDO-150 | 150 | 42 | 100 | 40 |
| HL-WG-STDO-200 | 200 | 56 | 125 | 40 |
Paper and Pulp industries
Glass industries
Metallurgical industries
Chemical industries
Water and Wastewater treatment
Fish farming
Why Choose HUILIN PSA Oxygen Generator?
Convenient to install
More economic than other oxygen supplying methods
The macaronis design realizes the automatic running
Peak value / the security system of the trouble
The high-quality components and parts are the reliable assurance of steady operation
Oxygen content shows in succession, equipping the transfinite automatic alarm system
The high-quality zeolite molecular sieve
The advanced loading technology guarantees the service life of equipments
The automatic alarm system for sinking of the carbon molecule sieve
The unqualified oxygen automatic emptying system
Differential pressure indication, concentrating blow down system
The unique inter-circle switching techniques’ of system
