Specifications
Brand Name: Huilin ;Usage: metal treatment ;
O2 Output: 3~3000Nm3/h
Specification
Selections |
Specifications |
Remarks |
|
WG-STDO-110 |
Item No. |
WG-STDO-110 |
—— |
O2 Flow |
110Nm3/hour |
—— |
|
O2 Purity |
93±2% |
—— |
|
Export Pressure of O2 |
150Bar |
Adjustable |
|
O2 Dew Point |
-45°C |
Atmospheric |
|
Compressed Air Consumption |
1320 Nm3/hour |
6Bar |
|
Mode of operation |
Full automatic |
—— |
|
Specification of key machine
1 Air Compressor
Item |
Atlas Copco Screw Air Compressor
|
|
Item |
GA-132 |
|
Air Output |
≥24Nm3/min |
|
Export Pressure |
≥0.7Mpa |
|
Function |
Provide compressed air.
|
2 O2/N2 Separation System
Item |
Specifications |
Notes |
|
Item |
WG-STDO-110 |
HUILIN |
|
O2 Flow |
110Nm3/h |
Standard |
|
Compressed Air Consumption |
1320Nm3/hour |
Standard |
|
O2 Purity |
93±2% |
-------- |
|
Output Pressure |
4Bar |
Can be adjustment |
|
O2 Dew Point |
-45°C |
Atmospheric |
|
Running Time |
≥8600h/year |
Continuous Work |
|
Equipment Life |
20 years |
zeolite molecular sieve for 10 years. |

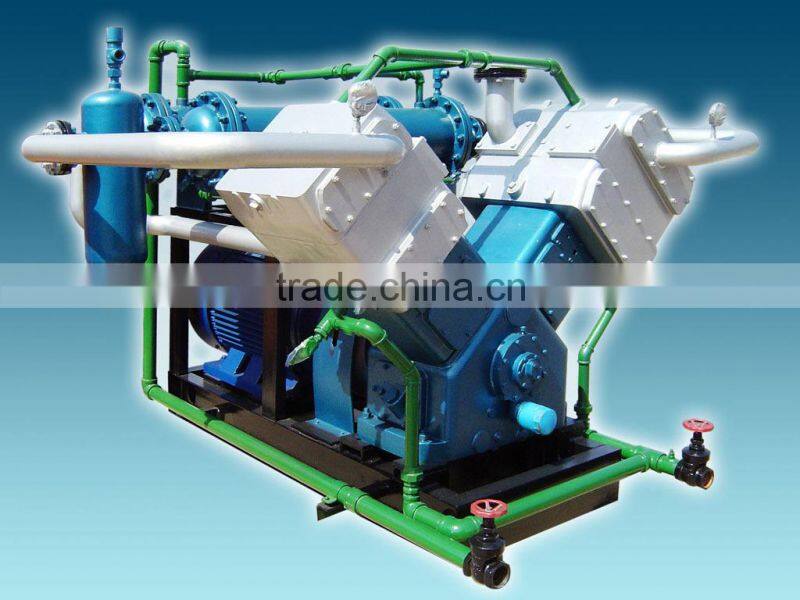

3 Oxygen Compressor
Item |
Oxygen Compressor
|
|
Type |
VW-2/41-150 |
|
Oxygen Output |
≥110Nm3/hour |
|
Export Pressure |
≥150Bar |
|
Function |
Provide compressed Oxygen
|
The Component Description

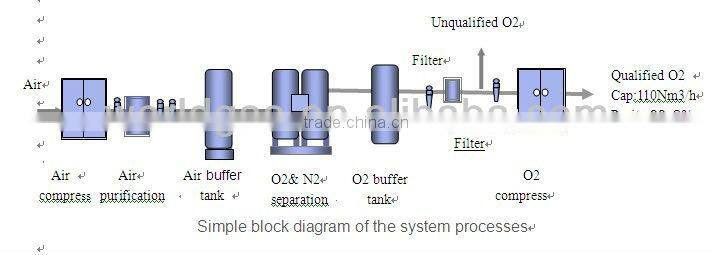

This PSA Oxygen Generator is composed of Air Compressed System, Air Purification System, Air Tank System, O2/N2 Separation System, Oxygen Buffer System, Oxygen Compressed System and Electrical Control System.
Specifications&Selection
PSA Oxygen Generator
Capacity: 3~3000Nm3/h
Purity: 93±2%
Outlet pressure: 0.1-0.8Mpa
| Model |
Flow (Nm3/hr) |
Air consumption (Nm3/min) |
Inlet (mm) |
Outlet (mm) |
| HL-WG-STDO-3 | 3 | 0.95 | 20 | 15 |
| HL-WG-STDO-6 | 6 | 1.9 | 25 | 15 |
| HL-WG-STDO-10 | 10 | 2.8 | 32 | 15 |
| HL-WG-STDO-20 | 20 | 5.6 | 40 | 20 |
| HL-WG-STDO-30 | 30 | 8.4 | 50 | 20 |
| HL-WG-STDO-50 | 50 | 14 | 65 | 25 |
| HL-WG-STDO-80 | 80 | 22 | 65 | 32 |
| HL-WG-STDO-100 | 100 | 28 | 80 | 32 |
| HL-WG-STDO-150 | 150 | 42 | 100 | 40 |
| HL-WG-STDO-200 | 200 | 56 | 125 | 40 |
1.Paper and Pulp industries
2.Glass industries
3.Metallurgical industries
4.Chemical industries
5.Water and Wastewater treatment
6.Fish farming
