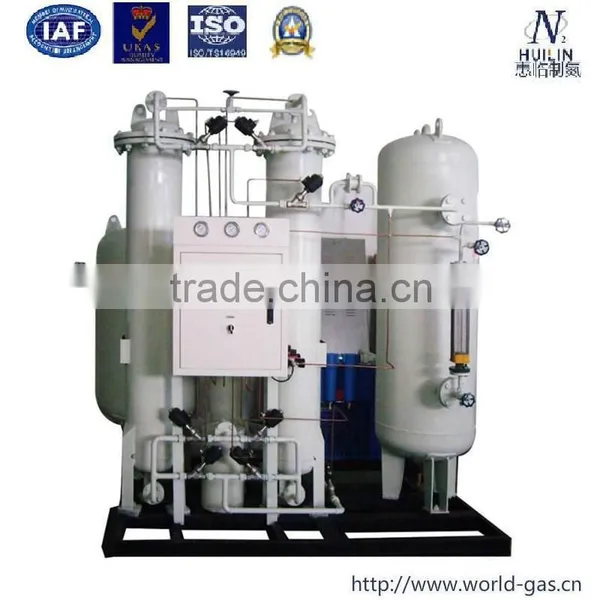

Help CenterPSA Oxygen Generator for Chemical /Industry/Medical
Related Products
-
Competitive Manufacturer of Oxygen Generator (98% Purity)US$ 5,000 - 300,000MOQ: 1 Set -
Industrial/Chemical PSA Oxygen Generator for SaleUS$ 5,000 - 500,000MOQ: 1 Set
-
Medical/Chemical PSA Oxygen GeneratorUS$ 5,000 - 500,000MOQ: 1 Set
-
High Purity PSA Hospital Oxygen GeneratorUS$ 5,000 - 500,000MOQ: 1 Set
-
Oxygen Generator for Medical/Health (93%/95%/98%Purity)US$ 5,000 - 300,000MOQ: 1 Set
Specifications
Oxygen Generator1) Purity:90~98%
2) Flow:3~3000 Nm3/h
3) Pressure:0~0.5MPa
4)Power :380V/220V/50HZ
Oxygen Generator
Specifications
Capacity: 3~3000Nm3/h
Purity: 90-98%
Outlet pressure: 0.1-0.5Mpa
Technical classification
According to the different pressure of adsorption and desorption, we usually divide pressure swing adsorption system into three different technology, users could choose the most suitable technology based on working conditions and requirements to achieve the purpose of reducing energy consumption .
There are usually three kinds of methods to distinguish the technology of O2 generator: PSA, VPSA, VSA.
Comparison of the three technology:
Model Type |
PSA |
VPSA |
VSA |
Production Flow (Nm3/h) |
3~120 |
150~2000 |
2000~10000 |
O2 Purity (%) |
65%~95% |
80%~93% |
80%~93% |
Pressure of Export |
0.2MPa~0.3MPa |
18KPa~30KPa |
10KPa~15KPa |
Dew Point of Standard atmosphere (°c) |
-45 |
-40 |
-40 |
Energy Consumption |
0.4~0.52 KWh/Nm3 O2 |
0.35~0.45 KWh/Nm3 O2 |
0.30~0.42KWh/Nm3 O2 |
Competitive Advantage
.Reliability of operations second to none
.Customized design
.Lower cost
.Excellent after sales services
.High efficiency operation
.Automated unattended operation
.Remote monitoring and control available
.Minimal space requirements
.Long-term commitment to R&D
.Your own independent on-site supply of oxygen
.Proprietary CMS with long life time and excellent performance
.Cabinet, skidded, containerized on-site oxygen generator systems available
Paper and Pulp industries
Glass industries
Metallurgical industries
Chemical industries
Water and Wastewater treatment
Fish farming
