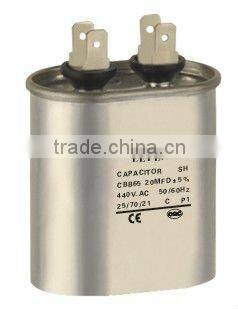

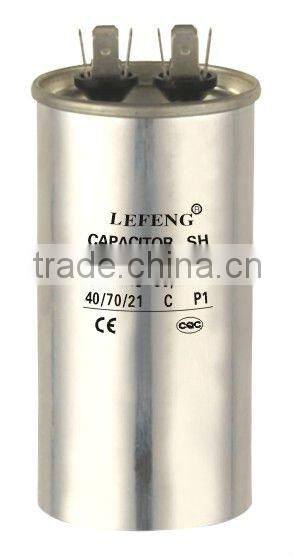

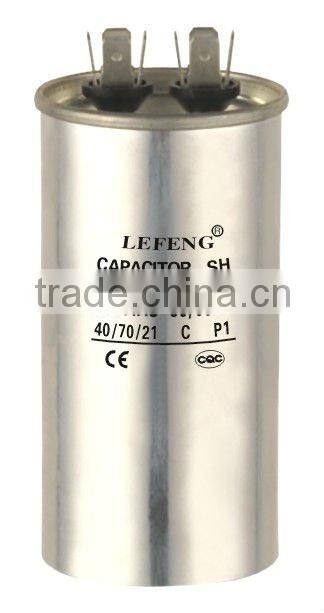

Capacitor 50uf (with CE.CQC.ROHS APPROVED)

Name: Capacitor 50uf (with CE.CQC.ROHS APPROVED)
Brand: VENUS
SKU: 128746201
Availability: InStock

US$ 1.23 - 2.58 MOQ: 1000 Square Centimeters

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

VENUS

Model Number:

CBB65

Wenling City Venus Capacitor Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo &shanghai etc

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name VENUS

Model Number CBB65

Type Polypropylene Film Capacitor

Application AC / Motor

Package Type Other

Capacitance 25MFD

Rated Voltage 250-450VAC

Operating Temperature 25/85/21

Specifications

Motor capacitor 50uf
1,CE,CQC & ROHS proved
2.good capacitance stability
3.reasonable price
4.delivery on time

Capacitor 50uF

1 with CE CQC authority
2 small light good self-healing
3.good price good performance excellent service
MOQ:1000PCS

AC Capacitor CBB65 can be made of aluminium case and can be covered by colorful plastic film.


Technique Data of Motor Running Capacitor:
Climate Type:	40/70/21; 25/85/21
Rated Voltage:	250-660VAC 50uF
Rated Capacitance:	250VAC: 1-120 uF
	450VAC: 1-100 uF
Tolerance:	±5%
Testing Voltage:	T-T:2.0·Un, 2S no breakdown
	T-C:2500VAC, 10S no breakdown
Insulation Resistance:	T-T:≥3000MΩ·uF
	T-C:≥1000MΩ
Loss Tangent:	tgδ≤0.001 (100Hz)
Safety Class	P0,P2
ROUND AND SQUARE TYPE ARE AVAILABLE.
LOOKING FORWARD TO YOUR INQUIRY.
