Usb2.0 to 8 Port RS232 Serial Db9 Converter

Usb2.0 to 8 Port RS232 Serial Db9 Converter thumbnail-1
Usb2.0 to 8 Port RS232 Serial Db9 Converter thumbnail-2
Usb2.0 to 8 Port RS232 Serial Db9 Converter photo-1

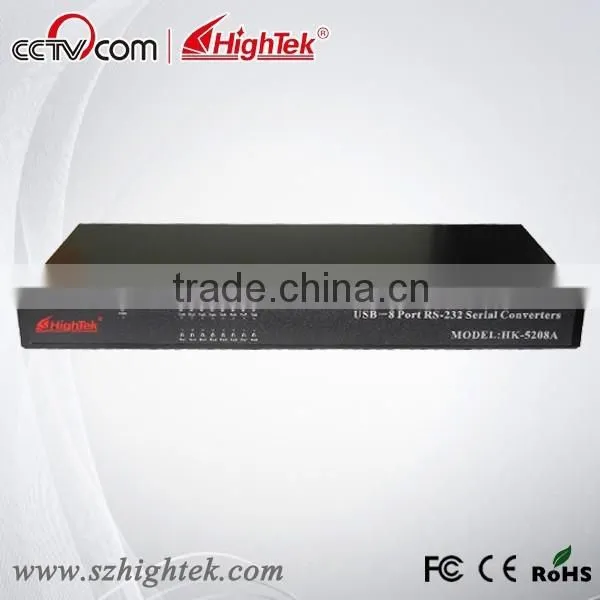

Usb2.0 to 8 Port RS232 Serial Db9 Converter photo-2
US$ 158 - 260 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HighTek
Model Number:
HK-5208A
Contact Supplier Request Quote Chat Now
Shenzhen Fangxing Liutong Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HighTek
Model Number HK-5208A

Specifications

usb2.0 to 8 port RS232 serial db9 converter
UK FTDI master chip
Industrial grade
+/-15KV ESD protection
8 ports DB9 male

usb2.0 to 8 port RS232 serial db9 converter details:





Product Description



The data communication rate can be as high as 300-921.6Kbps by the point-to-pointcommunication by HK-5208A interface. Power indicator light and datatraffic indicator light are also available with the converter for malfunctionindication. Conversion fromUSB to RS-232 is supported.



Performance parameters

1. Standards: conforming to USBV1.0, 1.1 and 2.0 and EIA RS-232.

2. USB signals: VCC, DATA+, DATA-, GND and FG..

3. RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI

4. UK FTDI master chip, inustrial grade

5. Working mode: asynchronous point-to-point.

6. Direction control: adoption of automatic data stream control for automatic recognition and control of data transmission direction.

7. Baud rate: 300-921.6Kbps, automatic detection of the transmission rate of the serial interface signal.

8. Transmission distance: 5 meters for RS-232 and less than 5 meters for USB.

9. Interface protection: +-15KV electrostatic protection.

10. Interface forms: B interface female connector and DB9 male connector for USB.

11. Signal indication: 9 indicator lights for Power (PWR), Send (TXD) and Receive (RXD).

12. Transmission media: twisted-pair cable or shielded cable.

13. Dimensions: 159mmX130mmX33mm.

14.Working environment: -40 to 85 , relative humidity 5% to 95%.

15. Windows95/98/2000/XP/7/8/Vista and IMAG are supported.

16. Both BUS and external power supply are supported.



Connector and signal

1. DB9 PIN: RS-232 output signals and PIN assignment.



usb2.0 to 8 port RS232 serial db9 converter

DB9 Female (PIN) RS-232C interface signal
1 Protection grounding DCD
2 Receiving data SIN(RXD)
3 Sending data SOUT(TXD)
4 Data termainal perparetion DTR
5 Signal grounding GND
6 Data equipment preparation DSR
7 Request sending RTS
8 Clear sending CTS
9 Ring indication RI





2. USB-B female: USB output signals and PIN assignment

usb2.0 to 8 port RS232 serial db9 converter

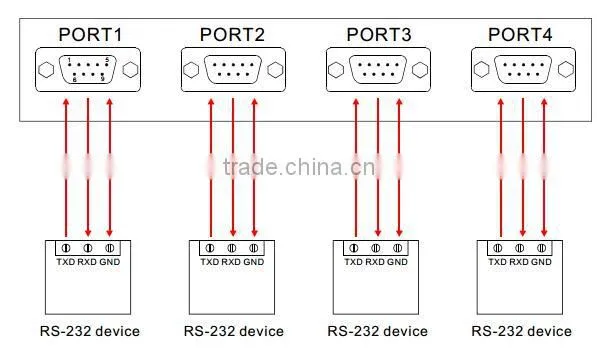

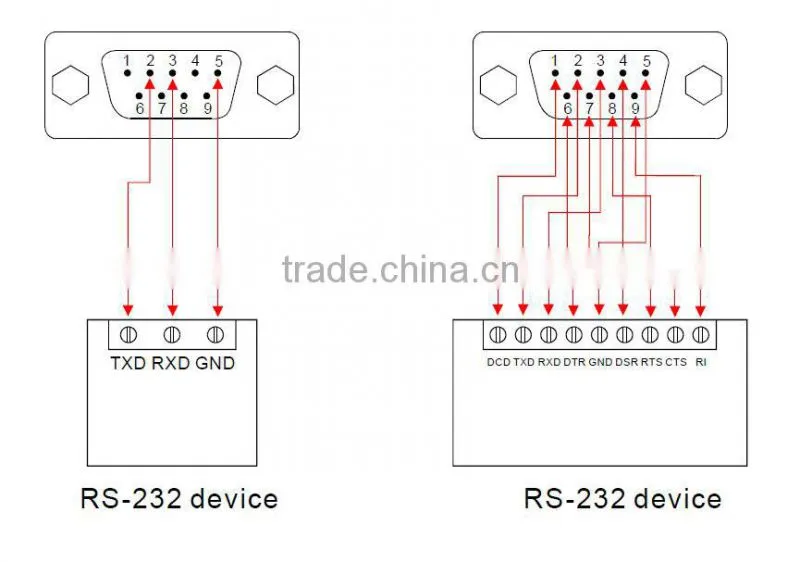

Communication Connection Chart

usb2.0 to 8 port RS232 serial db9 converter

  1. DCD 2,RXD 3,TXD 4,DTR 5,GND 6,DSR 7,RTS 8,CTS 9,RI



usb2.0 to 8 port RS232 serial db9 converter

Problems and troubleshooting

1. Data communication failure

A. Check to make sure USB cable is OK.

B. Make sure RS-232 output interface connection is correct.

C. Make sure power supply is OK.

D. Make sure the wire terminal connection is OK.

E. Make sure the indicator lights flash when receiving.

F. Make sure the indicator lights flash when sending.

2. Data missing or incorrect

A. Check to see whether the data rate and format at both ends of thecommunication equipment are consistent.

usb2.0 to 8 port RS232 serial db9 converterusb2.0 to 8 port RS232 serial db9 converter

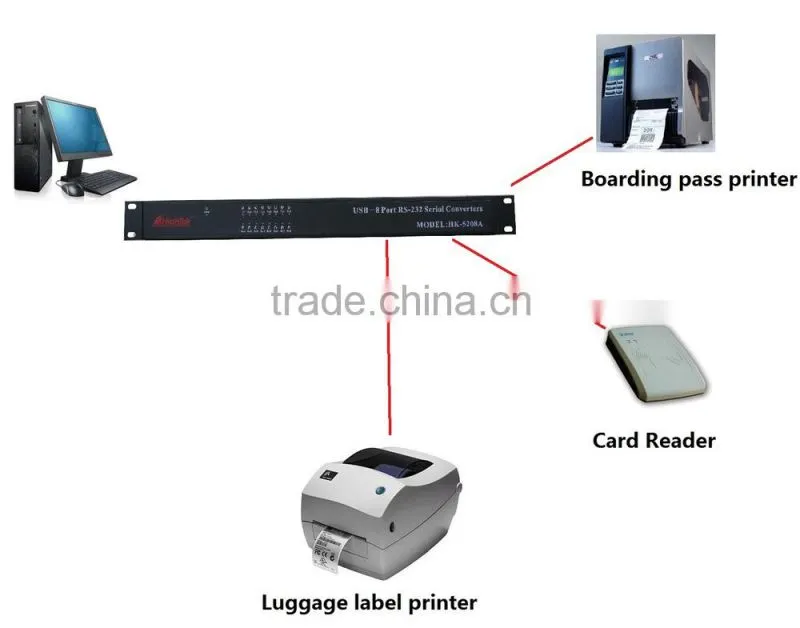

Product Uses

usb2.0 to 8 port RS232 serial db9 converter





Company Information

usb2.0 to 8 port RS232 serial db9 converter

usb2.0 to 8 port RS232 serial db9 converter



Certifications

usb2.0 to 8 port RS232 serial db9 converter



Packaging & Shipping

usb2.0 to 8 port RS232 serial db9 converterusb2.0 to 8 port RS232 serial db9 converter



FAQ

Q1: Can you provide OEM service?

Yes, we work on OEM orders.which means design, packing solution,etc will depend on your requests; and your logo will be customized on our products.

Q2: What information should i let you know if i want to get a quotation?

1.Which products are your need?

2.package

3.Quiantitles



Q3: WHY US?

1.The only recommended brand of interface converter by CCTV;

2.Established in 2000, there are 8 branch companies all over China;

3.More than 20 years’ manufacturing in communication filed and more than 15-year customization experience;

4.With professional management, R&D, manufacturing, QC and service team, we are always ready to provide perfect products and service for you;

5.Always the selection of Telefonaktiebolaget LM Ericsson, Huawei, Wachovia Corporation, Foxconn, Motorola, OKI, CNPC, Sinopec and China Mobile since the first cooperation between us.
