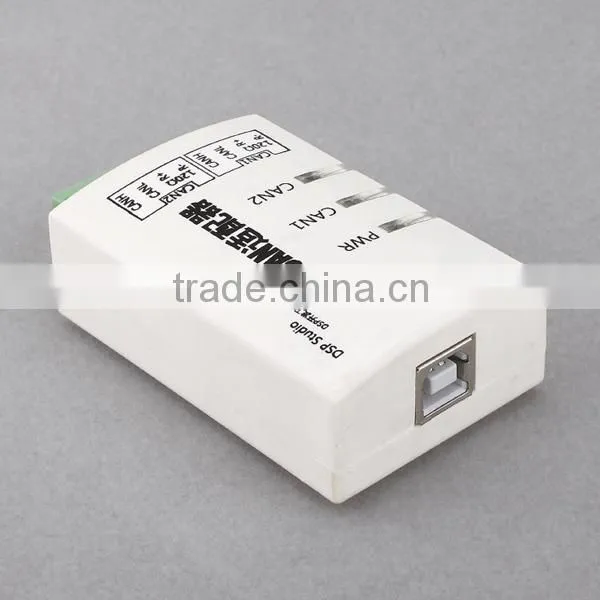

Specifications
With 2 -channel CAN interfaceSupport CAN2.0A and CAN2.0B protocol
Internal CAN transmit buffer capacity is 1000 per channel
Application:
1. Sending and receiving CAN bus network via USB interface of PC or laptop;
2. Quick CAN network data collection, data analysis;
3. CAN bus-USB gateway;
4. USB interface to CAN network interface;
5. Extend the length of the CAN bus network communication;
6. CAN network data monitoring of industrial field.
Main specifications:
1. With 2 -channel CAN interface ;
2. USB interface supports USB2.0, compatible with USB1.1;
3. Support CAN2.0A and CAN2.0B protocol, support standard and extended frames ;
4. Support bi-directional transmission , CAN transmitting and CAN receiving;
5. Support data frame , remote frame format ;
6. Baud rate of CAN controller is selectable between 10Kbps-1Mbps , you can configure the software ;
7. CAN bus interface is not isolated ;
8. Maximum flow: two CAN channels (simultaneous operation) can separately receive 8000 / s, send 8000 / s;
9. Internal CAN transmit buffer capacity is 1000 per channel ( if failed to send then automatic retransmission will occur), CAN receive buffer capacity is 2000 per channel;
10. USB bus directly powered, no need external power supply;
11. Working temperature : -20 ~ 85 degree C;
12. Case Size : 70 * 45 * 24mm.
13. Compatibility: library similar to ZLG-USBCAN interface adapter .
14. Support Win7(64/32 bits), Server 2007/2008, Vista, XP (64/32 bits), Windows 2000.
Secondary development

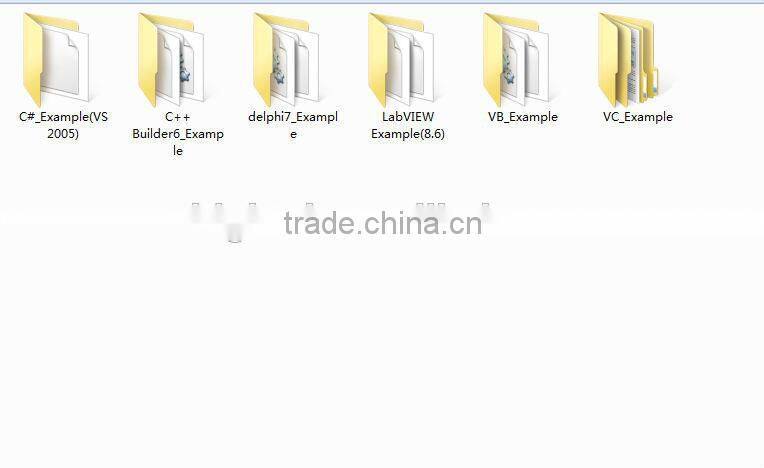

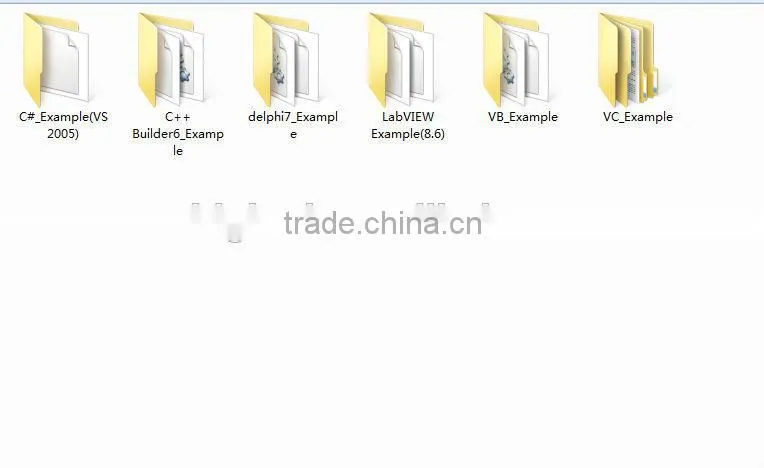

The Example code of Secondary Development

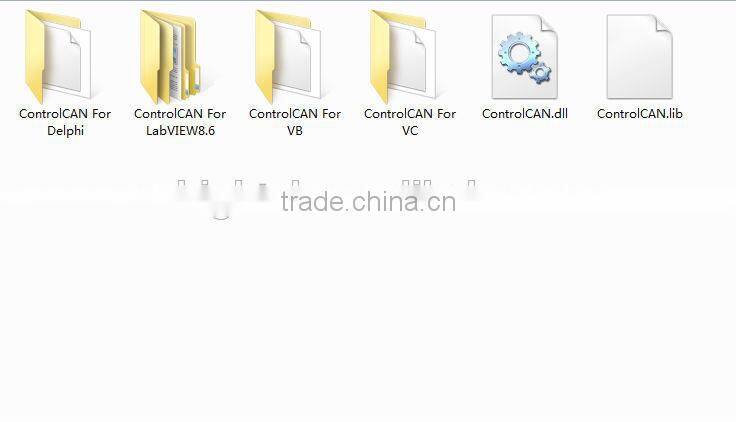

Library Files of the Secondary Development

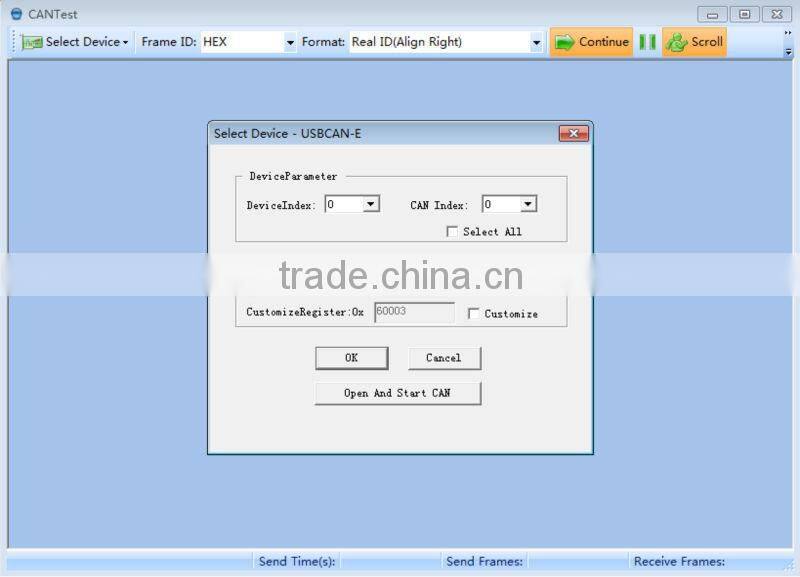

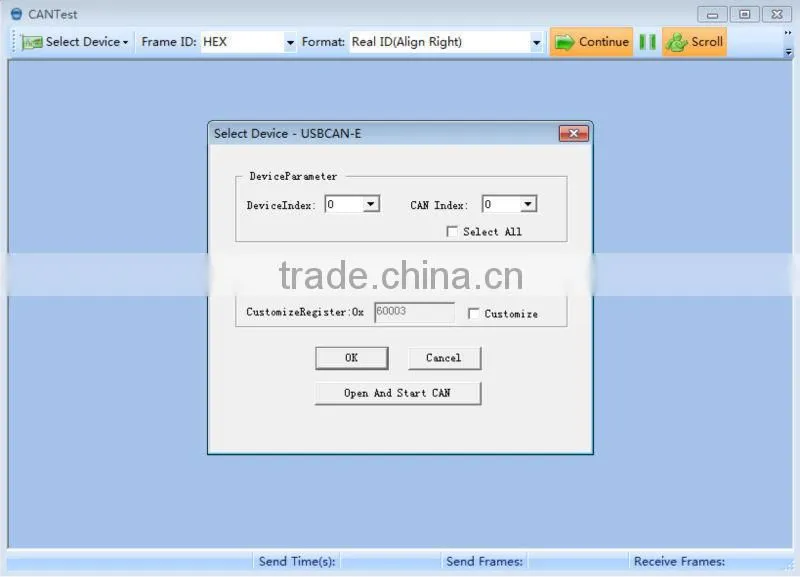

Test software
