Specifications

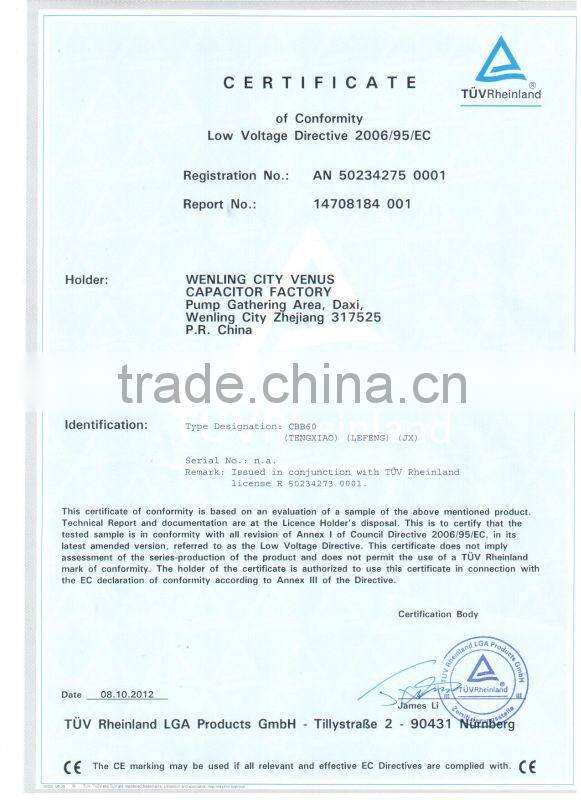

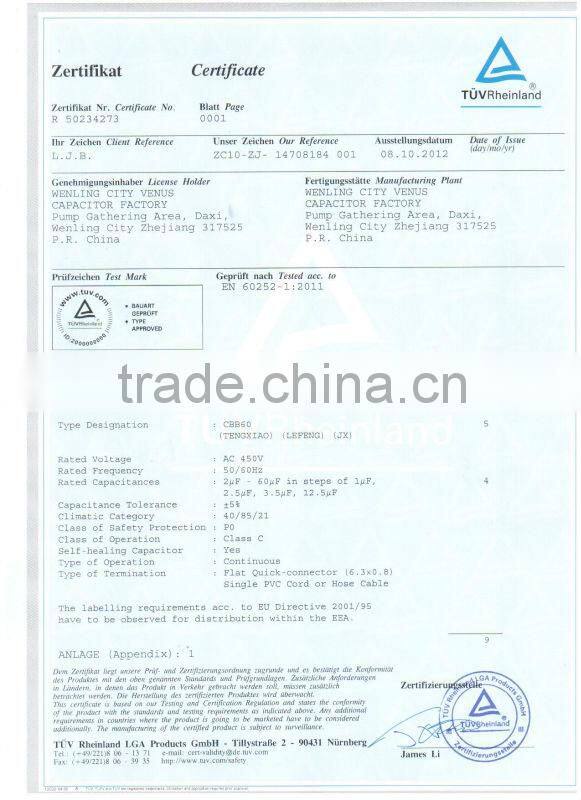

250vac capacitor1,CE,CQC & ROHS proved
2.good capacitance stability
3.reasonable price
4.delivery on time

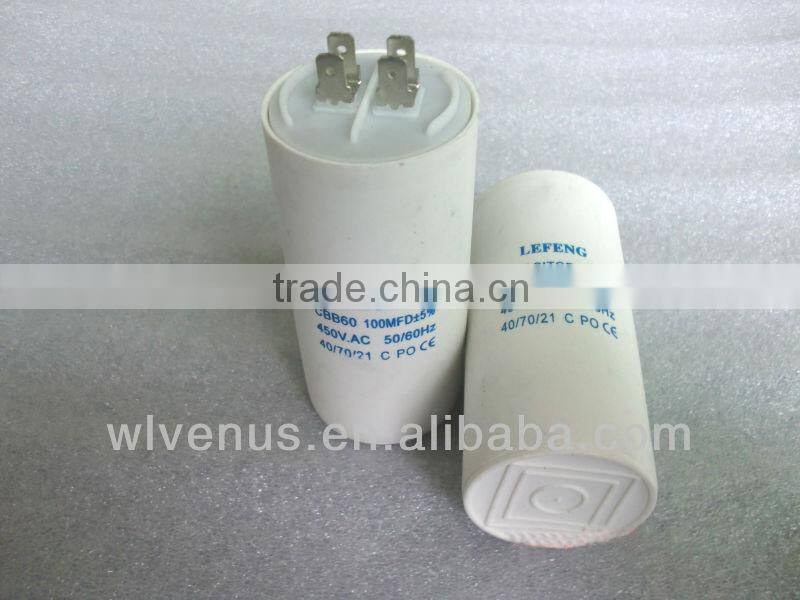

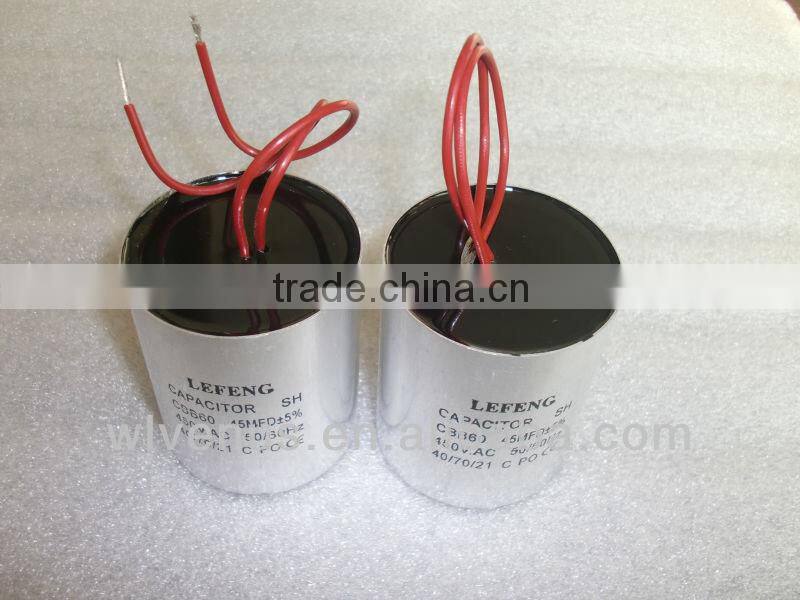

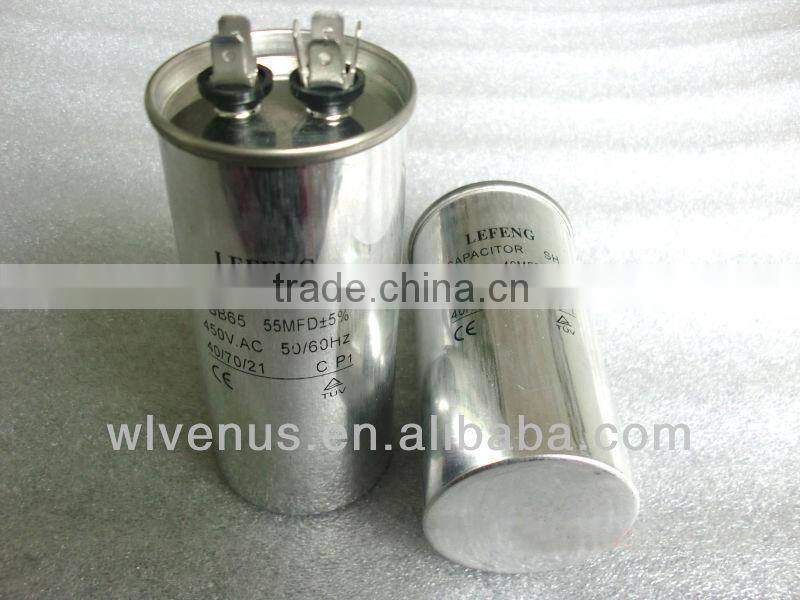

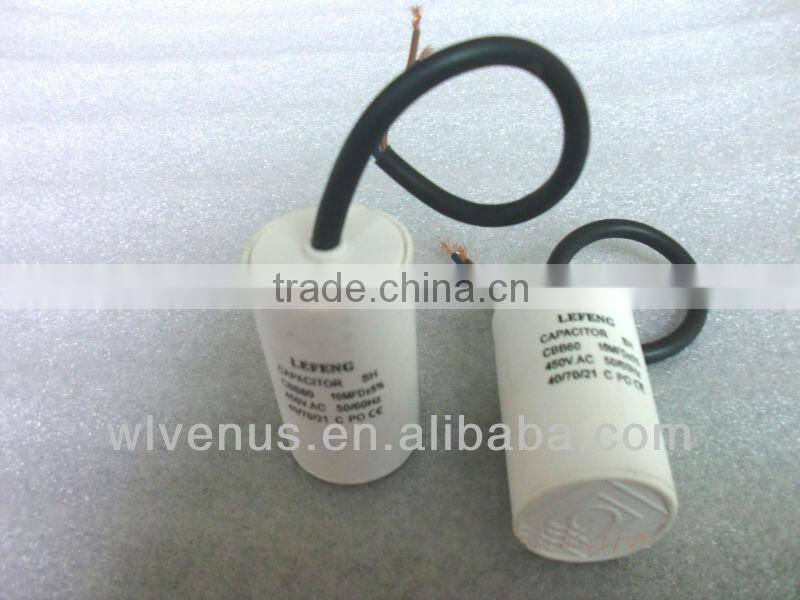

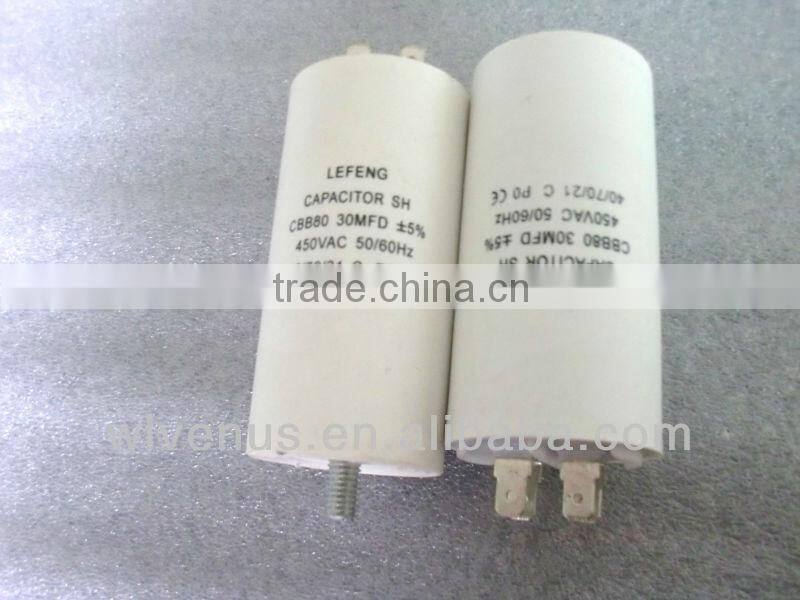

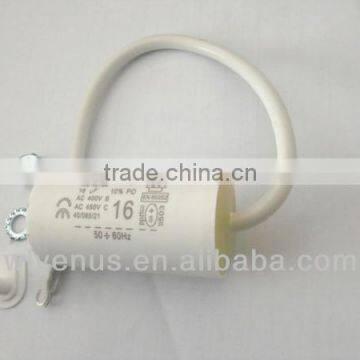

CBB60 TYPE POLYPROPYLENE CAPACITORS SERIES:
Detailed Product Description
1. Used widely in motors, air conditioner, water pumps,air etc
2.High performance & Long life Capacitor.
3. Work well even in hot area
Main Feature:
Low dissipation factor, small inherent temperature rise. Excellent self-healing stability, safety and high voltage withstand,etc.
Applications:
Used widely in washing machine, water pumps, air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.
Techinnical Parameters:
Capacitance range |
1-150μf |
Rated voltage Un |
250v.ac/450/450V.ac |
Rated frequency |
50Hz;60Hz |
Capacitance tolerance |
±5%;±10% |
Climatic category |
-25+70°C |
Dissipation factor(at 50Hz-Hz and 20°C) |
≤0.002(100Hz,20°C) |
Test voltage between terminals |
2×Un for 3s |
Test voltage between terminals and case |
2×Un+1000VDC FOR 2s |
Reference standard |
EN 60252;IEC252 |
Outline size
Rated Capacitance(μf } |
250V. ac |
400 V. ac-450 V. ac |
||
ΦDH x (mm)1 |
ΦD x H(mm)2 |
ΦDH x (mm)1 |
ΦD x H(mm)2 |
|
3 |
Φ30x60 |
Φ32x55 |
Φ30x60 |
Φ32x55 |
4 |
Φ30x60 |
Φ32x55 |
Φ30x60 |
Φ32x55 |
5 |
Φ30x60 |
Φ32x55 |
Φ30x60 |
Φ32x55 |
6 |
Φ30x60 |
Φ32x55 |
Φ30x60 |
Φ32x55 |
7 |
Φ34x63 |
Φ36x58 |
Φ34x63 |
Φ36x58 |
8 |
Φ34x63 |
Φ36x58 |
Φ34x63 |
Φ36x58 |
9 |
Φ34x63 |
Φ36x58 |
Φ34x63 |
Φ36x58 |
10 |
Φ34x63 |
Φ36x58 |
Φ34x63 |
Φ36x58 |
12.5 |
Φ34x68 |
Φ36x70 |
Φ34x68 |
Φ36x70 |
15 |
Φ38x73 |
Φ36x70 |
Φ38x73 |
Φ36x70 |
16 |
Φ38x73 |
Φ36x70 |
Φ38x73 |
Φ36x70 |
18 |
Φ38x73 |
Φ40x70 |
Φ38x73 |
Φ40x70 |
20 |
Φ42x75 |
Φ40x70 |
Φ42x75 |
Φ40x70 |
25 |
Φ45x94 |
Φ45x92 |
Φ45x94 |
Φ45x92 |
# Special requirement can be fulfilled at the request Of Customers
