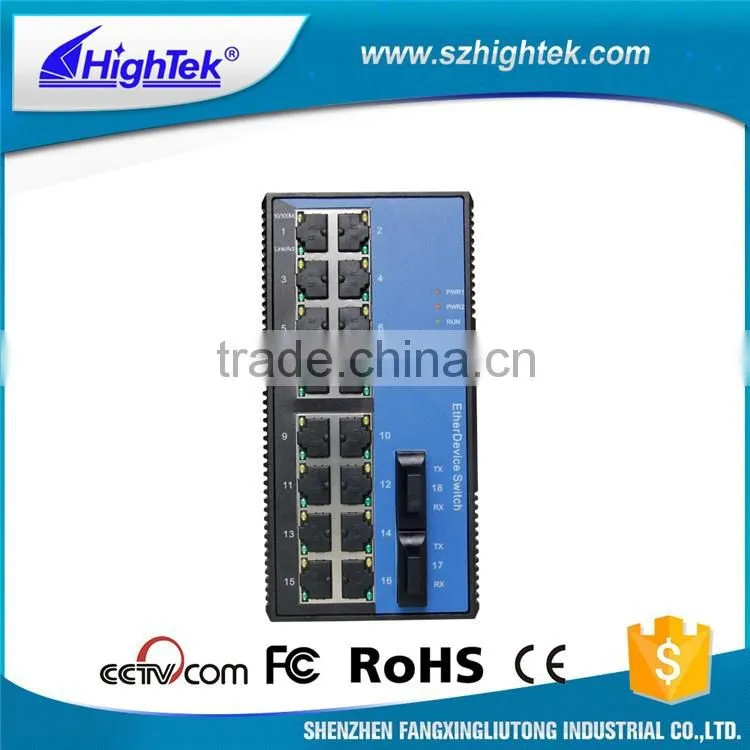

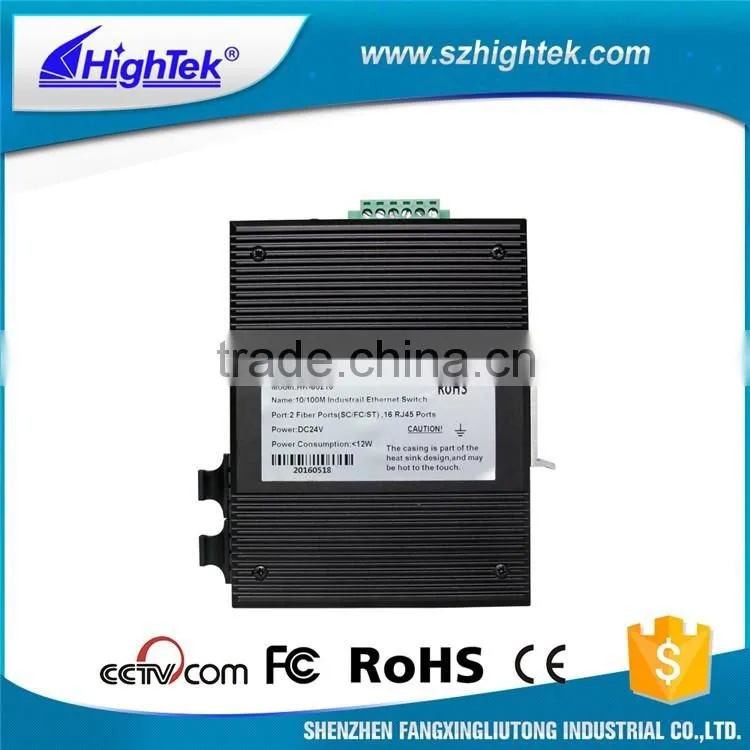

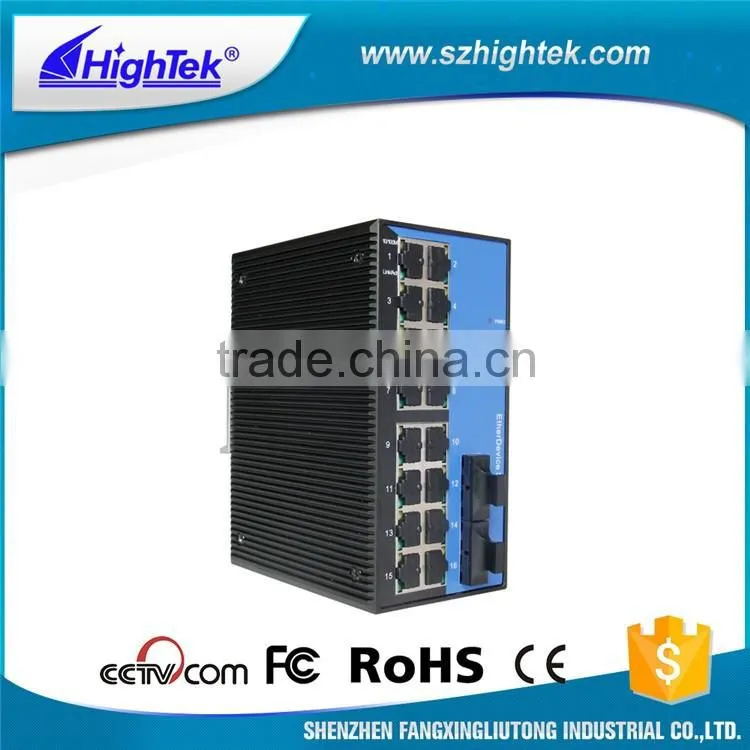

HighTek HK-86216 has 16x10/100 Base-TX DIN-Rail un-management industrial Ethernet switch, which is specialized in industrial communication highway. For flexible industrial necessary, our switch provided a kind of solution for high industrial Ethernet communication, which make industrial communication more smoothly, more reliable and faster.
The un-management series of switch is suitable for plug-and-play. All 10/100 Base-TX ports support many functions of automated trust negotiation, 10/100Mbps full duplex and half duplex, flow control, Auto-MDI/MDI-X and so on. it has redundancy power supply, which can support DC and AC of wide range to input. In the construction and installation, this switch takes less space up and is convenient to install by card-track.
HK-86216 has 16 10/100 Base-TX and 2 100Base-Fx of single-mode/multi-mode fiber.
2.Product characteristic
Industrial features
Store and forward mode, Backplane bandwidth is 8.8Gbps.
RJ45 port, 10/100Base auto negotiation speed and auto MDI/MDI-X connection
Full-duplex flow control, semi-duplex interface flow control
Redundancy dual power supply input, suitable for high performance requirement.
No interference operation in EMI work Environment.
Industrial application project
Redundancy dual power supply input design.

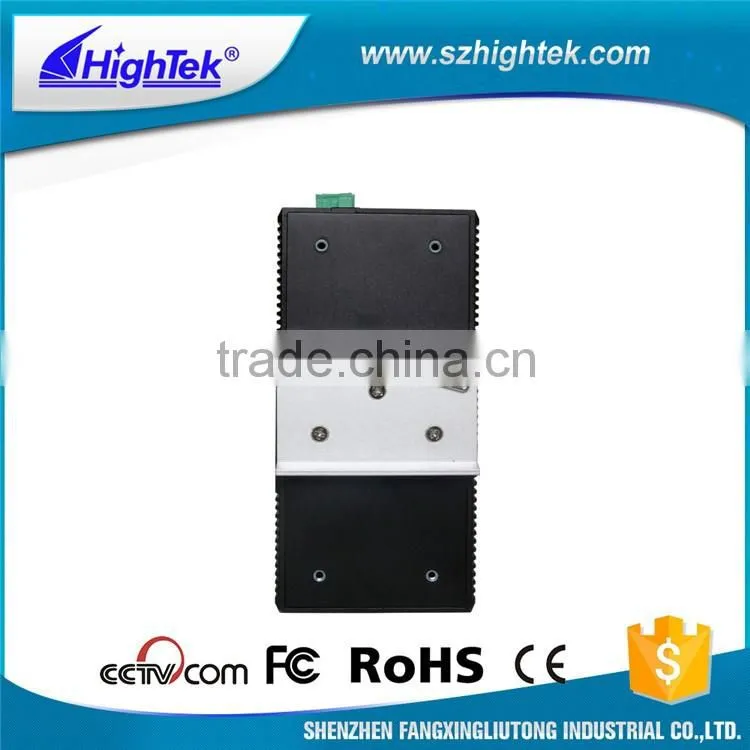

DIN-Rail install
Relay output warning for power failure and port break alarm.
Real time tracing Network Time Protocol (NTP).
3.Product parameters:
RJ45 port |
16 10/100 Base-TX port |
Twisted-pair |
0~100m, RJ45 port, 10/100Base auto negotiation speed and auto MDI/MDI-X connection |
Fiber optic port |
HK-86216 has 2 ports(SC/FC/ST) |
Fiber optic line |
multi-mode:<5km; Single-mode:20km40km60km80km |
Input Voltage |
24VDC(standard);12-36V;48VDC(customized); AC/DC:AC85-265V/DC110-370V (customized); |
Watt loss |
<20W |
Backplane bandwidth |
8.8G |
Filtering and forwarding |
148810bps |
MAC address |
8K |
Flow control |
Full-duplex flow control, semi-duplex interface flow control |
Broadcast Storm Control |
Supports broadcast data packets and broadcast storm control. The data packets out of the limited time will be abandoned. |
Operating temperature |
-40℃~75℃ |
Storage temperature |
-45℃~85℃ |
Ambient Relative Humidity |
0~95%(non-condensing) |
Dimension |
144mm×110mm×72mm |
Installation |
DIN-Rail |
Weight |
0.8kg |
Case protection grade |
IP40 |
Casing |
Closed high-strength aluminum casing, enabling the system to work reliably in harsh and hazardous industrial environments |
IEC61000-4-2 electrostatic prevention |
±8kv contact discharge, ±15kv air discharge |
IEC61000-4-3 electromagnetic field |
10V/m (80~1000MHz) |
IEC61000-4-4 fast transient response pulse signal port |
±4kv power line,±2kv data line |
IEC61000-4-5 surge guard signal port |
±4kv(line-GND)±2kv(line-line),±1kv data line |
IEC61000-4-6 radio frequency presentation |
3V(10kHz~150kHz),10V(150kHz~80kHz) |
EN55022 |
EN55022 Class A |
IEEE standard |
802.3,802.3u, 802.3z, 802.3x, 802.1P ,802.1Q,8 02.1D/W |
