Din-rail 10/100Base unmanaged industrial 6 ports and 2 Fiber ports Ethernet Switch details:
Main Features:
8 Port Din-rail 10/100Base Unmanaged Industrial 6 ports and 2 ports Ethernet Switch | |
HK-85206 |
6×10/100Base-TX 2×10/100Base-FX |
Interface | |
10/100Base TX Port |
10/100Base-TX Self-adaption Ethernet RJ45 |
10/100Base FX Port |
10/100Base-FX SC interface |
Sugre Protection |
3000V(Power Supply) |
Max data packet |
1536 bytes |
Cache |
1M |
Communication Distance | |
Twisted-pair |
100m |
Fiber (multimode) |
5KM |
Fiber(Single mode) |
20KM |
multimode |
50/125,62.5/125,100/140um |
| single mode | 8.3/125,8.7/125,9/125,10/125 |
Power | |
Power Supply |
12~48V DC, 12~38V AC |
Power consumption |
<10W |
Support |
automatic alarm, current overload protection |
IEEE Standard |
IEEE802.3,IEEE802.3u,IEEE802.3x |
Certification |
CE,ROSH,FCC |
Environmental | |
Operating temperature |
-40°C~85°C |
Storage temperature |
-55°C~150°C |
Ambient Humidity |
5%~95% |
Front LED Lights | |
Alarm lights |
FAIL |
Power lights |
PWR1,PWR2 |
Interface lights |
Link/ACT, Speed (TX) |
Physical Data | |
Material |
Metal |
Size |
160mm×122mm×48mm |
Weight |
0.7kg |

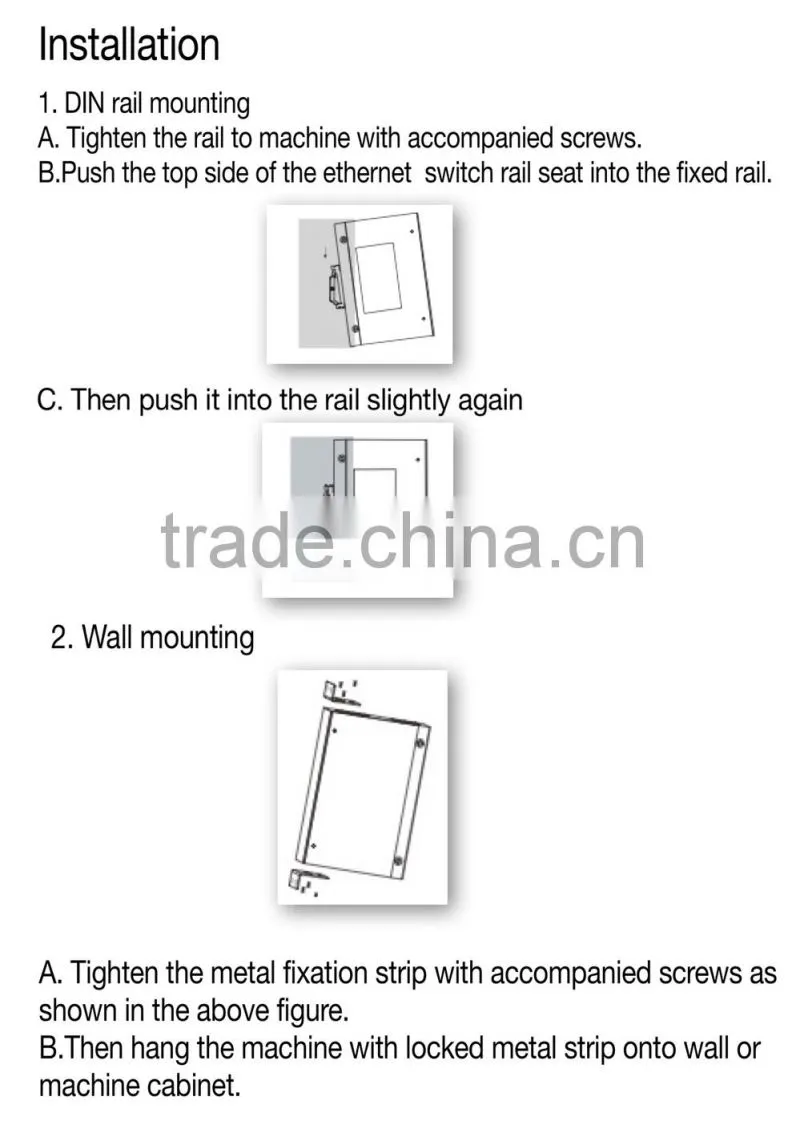

Installation |
Din-rail/Wall-mounted |
Warranty |
5 years |
| |
