XCMG GR135 Mini Motor Grader For Sale

Name: XCMG GR135 Mini Motor Grader For Sale
Brand: XCMG
SKU: 128730797

US$ 55,000 - 65,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Shanghai Bomar Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Qingdao/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number GR135

Weight 11200kg

Dimension(L*W*H) 8015*2380*3050mm

Certification ISO

After-sales Service Provided Overseas third-party support available

Product Description

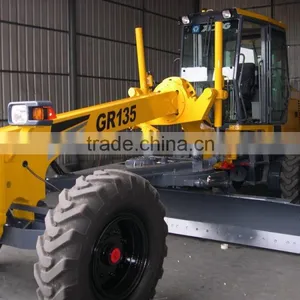

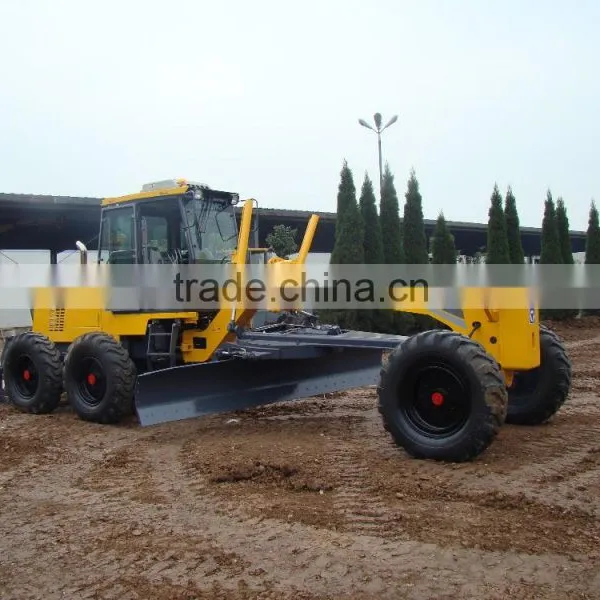

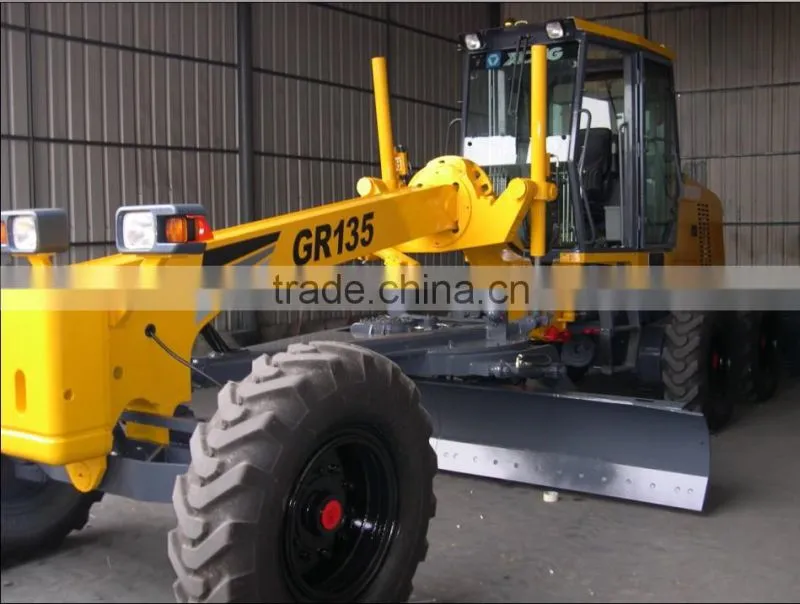

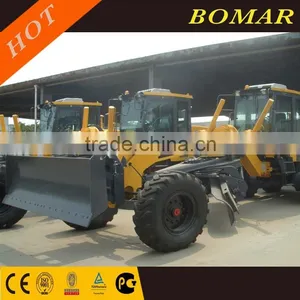

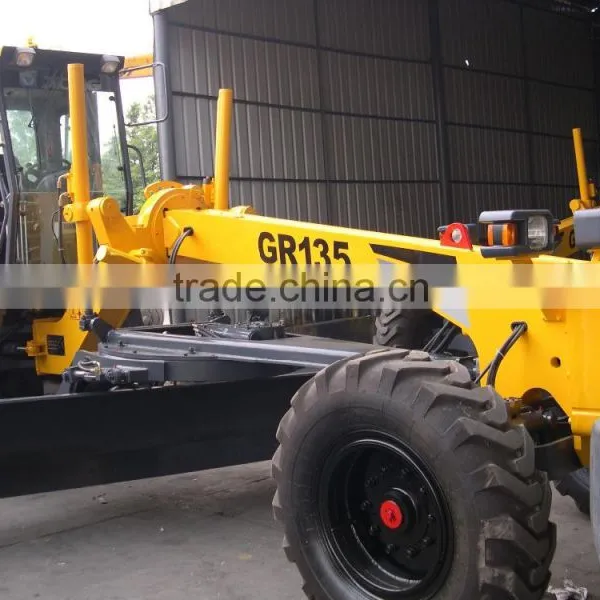

XCMG Brand New Motor Grader GR135, Mini Motor Grader for sale

Basic specification
Engine model	6BT5.9
Rated power/speed	100/2200kw/rpm
Dimension(LxWxH)	8015×2380×3050mm
Operating weight(Standard)	11000kg
Performance specification
Travelling speed ,forward	5,8,13,20,30,42km/h
Travelling speed ,reverse	5,13,30km/h
Tractive force(f=0.75)	61.3KN
Max. gradeability	20%
Tire inflation pressure	300kPa
Working hydraulic pressure	16MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±49°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	16
Frame articulation angle	±27°
Min. turning radius using articulation	6.6m

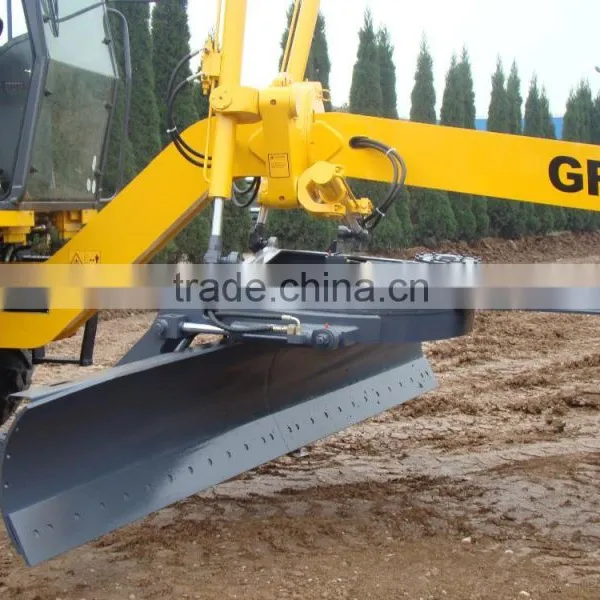

Biade
Maximum lift above ground	410mm
Maximum depth of cutting	535mm
Maximum blade position angle	90°
Blade cutting angle	28°-70°
Circle reversing rotation	360°
Moldboard width X height	3710×610mm
