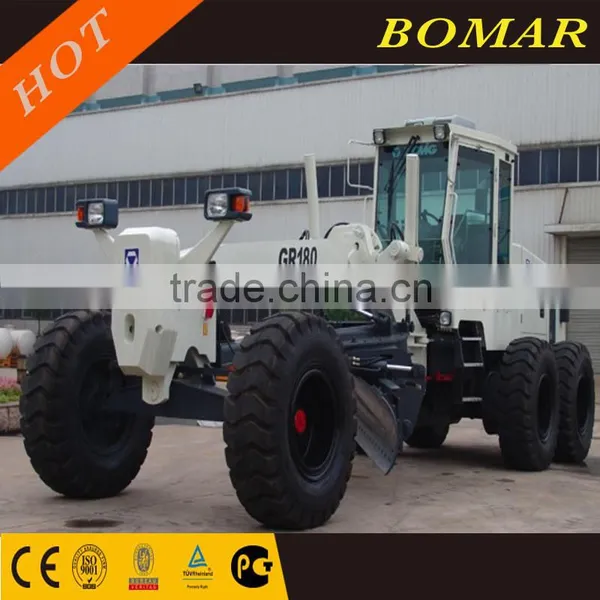

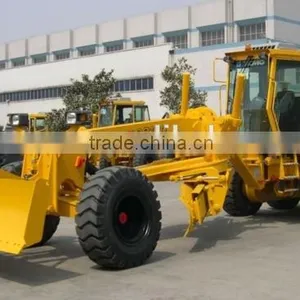

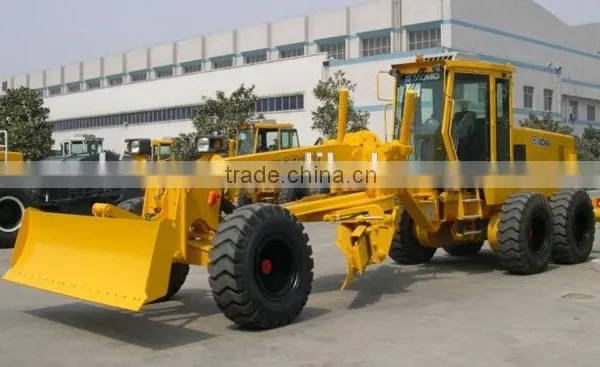

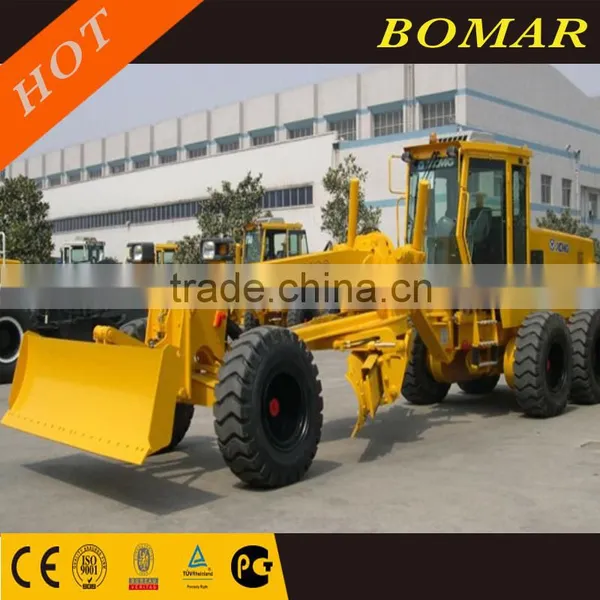

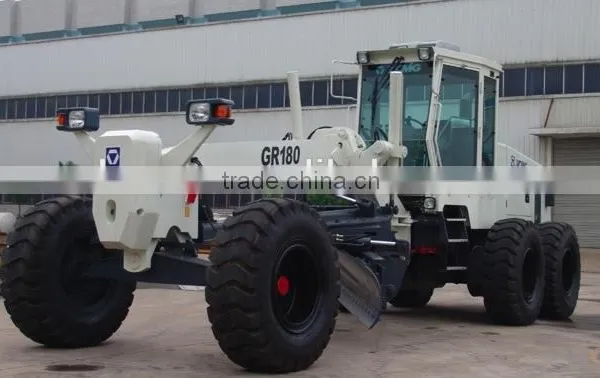

XCMG Motor Grader GR180
Model: GR165 /GR180 /GR200 /GR215
GR Series Motor Grader is mainly used for the work of road, airport, farmland leveling, digging, screeding, soil loosing, snow scrubbing. It is high working efficient, adopting imported parts as the main parts. It is considered as the ideal equipment for the National defence engineering, mine building and road building.
Technical Parameter
Model |
GR180 |
GR200 |
GR215 |
|
Engine |
D6114ZGB |
D6114ZGB |
Cummins 6CT8.3-C215 |
|
Rated Power/Speed |
140kW(190hp)/2200rpm |
147kW(200hp)/2200rpm |
160kW(215hp)/2200rpm |
|
Dimension |
9298×2601×3430mm |
9298×2601×3430mm |
9422×2601×3430mm |
|
Weight |
15400kg |
16000kg |
17000kg |
|
Front Wheel Weight |
4620kg |
4800kg |
5100kg |
|
Rear Wheel Weight |
10780kg |
11200kg |
11900kg |
|
Tyre |
17.5-25RP12 |
17.5-25RP12 |
17.5-25RP12 |
|
Min Ground Clearance |
430mm |
430mm |
430mm |
|
Axle(Front to Rear) |
6266mm |
6266mm |
6266mm |
|
Rear Wheels Distance |
1639mm |
1639mm |
1639mm |
|
Max Steering Angle |
±45° |
±45° |
±45° |
|
Max Tilting Angle |
±17° |
±17° |
±17° |
|
FrontAxle Swing Angle |
±15° |
±15° |
±15° |
|
Frame Steering Angle |
±25° |
±25° |
±25° |
|
Min Steering Radius |
7.8mm |
7.8mm |
7.8mm |
|
Blade |
Max Lifting Height |
460mm |
460mm |
460mm |
Max Dozing Depth |
500mm |
500mm |
500mm |
|
Max Tilting Angle |
90° |
90° |
90° |
|
Cutting Angle |
28°~70° |
28°~70° |
28°~70° |
|
Turning Angle |
360° |
360° |
360° |
|
L×H |
3965×610mm |
4270/3965×610mm |
4270×610mm |
|
Forward Speed |
5, 8, 11, 19, 23, 38km/h |
5, 8, 11, 19, 23, 38km/h |
5?8?11?19?23?38km/h |
|
Backward |
5, 11, 23km/h |
5, 11, 23km/h |
5,11,23km/h |
|
40'HQ & Bulk Vessel & Roll On/Off Vessel
