Help CenterOil Weir Skimmer
Related Products

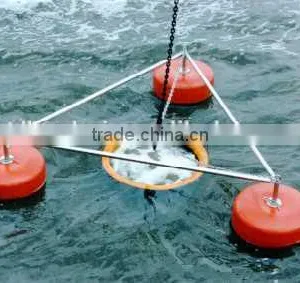

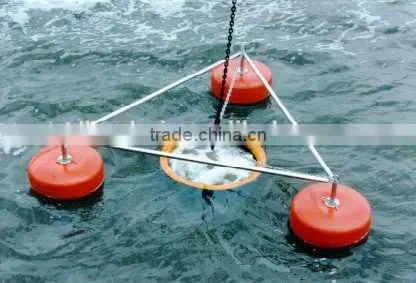

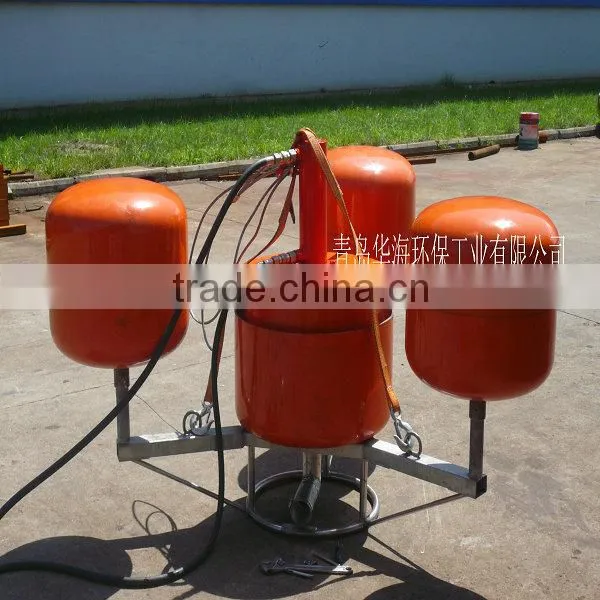

The weir skimmer consists of floatable head, power pack and oil hoses between the skimmer head and the power pack. Hydraulic power pack works under the diesel engine which drives oil pump and change diesel power into hydraulic power. It is used to drive weir to run and adjust the weir in suitable position. Then the scraping slice can made the oil fall off and then collect oil to collecting-oil groove by oil-conveying groove. Finally spilling oil is collected to the oil equipment in sea shore.
This weir skimmer can be widely used on harbors, oil ports, wharfs, rivers, lakes, shipyards, ship-breaking yards, petroleum and chemical industries, power plants, wastewater treatment plants and other site where are oil spills to be recovered.
The weir skimmer is suitable for recovery of oil spills with low and medium viscosity. It can be used with our containment booms, for both containing and collecting oils at the same time.
|
Model Parameter |
YSJ-30 |
YSJ-50 |
YSJ-100 |
Max. skimming rate(m³/h) |
30 |
50 |
100 |
underwater depth of overflow weir(mm) |
35-90 |
50-120 |
80-150 |
drive power(diesel engine or explosion-proof motor)(KW) |
14.5/7.5 |
14.5/11 |
21/15 |
suction head of oil recovery pump(m) |
8 |
8 |
8 |
operating pressure if hydraulic cylinder(mpa) |
5 |
5 |
5 |
Qingdao Huahai Environmental Protection Industry Co., Ltd. was founded in 1975, formerly known as Qingdao No. Seven Rubber Products Plant. Our company lies in Qingdao seashore, covering an area of 93,000 square meters with building area of 55,000 square meters, and employs over 400 staff.
We have scientific research, production, sale and service. Our leading products are rubber sheets, rubber matsrubber dams, rubber booms and oil spill response equipment. Our rubber sheets, rubber mats and rubber dams have been exported to Japan, Korea, America, Europe and other countries and regions.
"Satisfaction from customers is our persevering pursuit" is the tenet we have always been following. We warmly welcome friends from all circles to contact us for potential cooperation.
