Specifications
small scale concrete block making machines-Mechanical transmission
-Semi-auto control
-China No.1 Stable operation

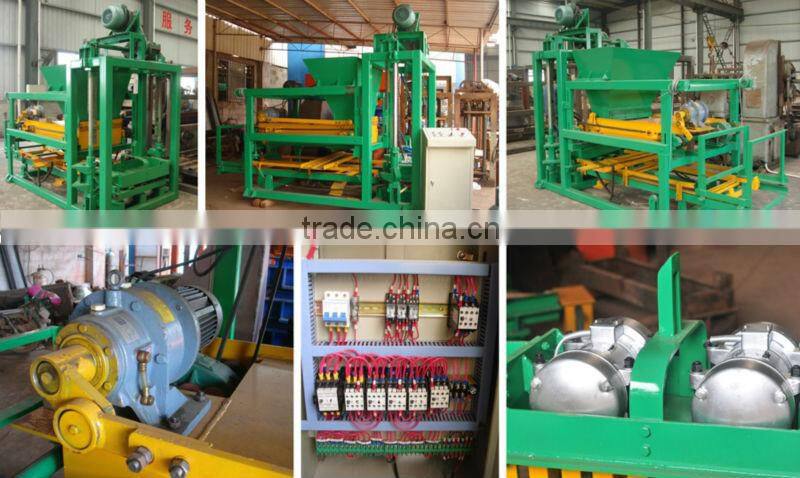

latest products QTJ4-40 semi-automatic small scale concrete block making machines
I. Characteristic of QTJ4-40 semi-automatic small scale concrete block making machines
QTJ4-40 is the semi-automatic brick machine which we design & develop to meet the market demand, it is all mechanical transmission, has the features of compact structure, reliable operation, easy maintenance and low failure rate, it utilize the table vibration method to form the brick with excellent shape, dense frame and high strength, as well as lower cement comsumption.
By changing different forming mold, the QTJ4-40 can produce different wall brick, hollow brick, solid brick, paver brick and so on, it is the best solution of the small construction engineering or the middle-small scale brick factory. small scale concrete block making machines
Operation Cycle | 25~40s | Pallet Size | 840*450*25mm |
Brick Height | 60~200mm | MainPower Capacity | 16.5Kw |
Mixer Model | JS350 | Vibration Force | 40kN |
Net Weight | 3t | Main Machine Dimension | 3100*1530*2380mm |
Power Source | 3Phase, 380V/50Hz (Special voltage & frequency is available according to your local power source.) | ||
Brick Type | Dimension | Blocks/Cycle | Blocks/Hour | Blocks/Shift | Remark |
Hollow Brick | 390*190*190mm | 4 | 360 | 2880 | |
Porous Brick | 240*115*90mm | 9 | 810 | 6480 | |
Interlock Brick | 225*112.5*60mm | 9 | 810 | 6480 | |
Solid Brick | 240*115*53mm | 21 | 1890 | 15120 | |
Note: Special brick model is available according to customer demand.
IV. Advantage: of small scale concrete block making machines
1. Automatic pallet and concrete feeding, it can save manpower and reduce the labor intensity, increase the forming speed and enhance the working efficiency;
V. Raw Material: of sandcrete block making machine
Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.
Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protected by wooden boxes.
I. Factory Ability:
CNC Lathe | 06 sets | Boring Lathe | 02 sets | Shaper | 02 sets |
Milling Machine | 04 sets | Press Brake | 02 sets | CNC Flame Cutter | 01 set |
Crane | 10 sets | Shot Blast Machine | 01 set | X-ray Inspection Instrument | 01 set |
We adopt the high quality steel materials, and every process will have the strict inspection and test comply with the ISO-9001or CE standard to ensure the machine has perfect performance.
III. Our Achievement:
Until now we have successfully export and handover our brick machine and production line to customers in Vietnam, Indonesia, Angola, India and Papua New Guinea, and acquire the good reputation of user.
small scale concrete block making machines
Note: We manufacture high quality construction machine include concrete brick machine, concrete mixer, aggregate batcher, cement silo, belt conveyor, construction hoist and so on, we are seeking the good agent worldwide, welcome to contact and discuss the cooperation term.
small scale concrete block making machines
