Help CenterNew China Technology Export QTJ4-40 Concrete Brick Cement Block Making Machine
Related Products
-
Shenta Export QTY8-15 Concrete Coment Block and Brick Making Machine Made in ChinaUS$ 35,000 - 42,000MOQ: 1 Unit -
Guangxi Shenta QTY10-15 Full Automatic Cement Block Brick Making MachineUS$ 40,000 - 45,000MOQ: 1 Unit
-
Shenta QT10-15 Automatic Cement Concrete Brick Block Making MachineUS$ 49,999 - 99,999MOQ: 1 Set
-
Shenta Hydraulic Automatic Turkish Block Making Machines for SaleUS$ 46,000 - 50,000MOQ: 1 Set
-
Hot Sale! PLC Controller,import Hydraulic Valve. ShentaQTY6-15 Automatic Hydraform Brick Making Machine in South AfricaUS$ 40,000 - 60,000MOQ: 1 Set
Specifications
block and brick making machine1. Brick Making Machine
2. ISO9001--2008
3. Automatic pallet & material feeding
4. CE
Shenta Concrete block and brick making machine QTJ4-40
Your best tools to Success and Prosperity!
Our Advantages
We are brick and block making machine manufacturer with 40 years professional experience.
We can offer large scale, millde scale and small scale brick and block making machine.
We have more than 40,000 square meters production area with over 200 workers.
Welcome to visit Shenta factory.

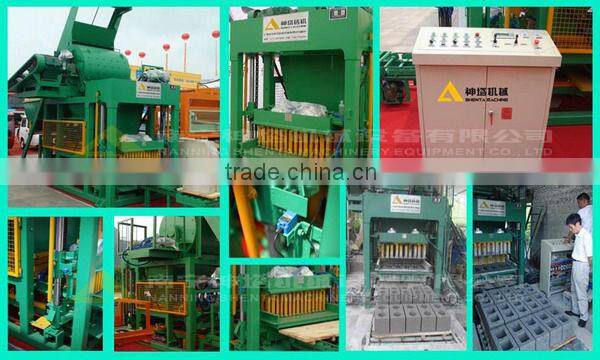

1. Main Description of Brick Making Machine QTJ4-40:
QTJ4-40 is the semi-automatic brick making machine we design and fabricate to meet the market demand, it is all mechanical transmission, automatic pallet feeding and concrete material feeding to save manpower and reduce the labor intensity, has the advantage of compact structure, reliable operation, very low malfunction rate, and easy maintenance and transportation, utilize the mold vibration technology (total 6 units vibration motor) to form the excellent shape, dense frame and high compressive strength brick, with fewer cement consumption.
By changing different mold, the QTJ4-40 brick making machine can produce different wall brick, porous brick and cement solid brick, it can meet the brick requirement of all kinds of civil construction project, is the best solution of middle-small scale brick factory or mobile brick factory.
2. Main Specification of Brick Making Machine QTJ4-40:
| Outside Dimension (mm) | 3500x1530x2350 | Operation Cycle (s) | 40 |
| Main Machine Weight (t) | 2.8 | Vibration Frequency (rpm) | 4300 |
| Total Power Capacity (Kw) | 16.2 | Vibration Power (Kw) | 10 |
| Pallet Dimension (mm) | 880x460x65 | Brick Height (mm) | 60~200 |
3. Main Productivity of Brick Making Machine QTJ4-40:
| Brick Size | Blocks/Cycle | Blocks/h | Blocks/8h | Blocks/Year |
| Hollow Brick (400X200X200mm) | 4 | 360 | 2,880 | 950,400 |
| Hollow Brick (400X200X150mm) | 5 | 450 | 3,600 | 1,188,000 |
| Hollow Brick (400X200X100mm) | 7 | 630 | 5,040 | 1,663,200 |
| Porous Brick (240X115X90mm) | 9 | 810 | 6,480 | 2,138,400 |
| Solid Brick (240X115X53mm) | 18 | 1,620 | 12,960 | 4,276,800 |
4. Brick Making Machine QTJ4-40:
Equipment List:
1. QTJ4-40 Brick Making Machine 2. B500 Belft Conveyor 3. JX-350 Vertical Concrete Mixer 4. Wooden Pallet
5. Brick Materials:
1. Cement-12%; 2. Fly Ash or Fine Stone Powder or Fine Sand-38%; 3. Crushed Stone (<15mm)-50%

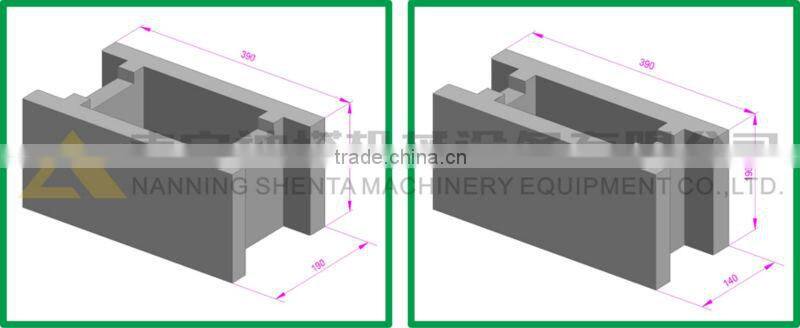

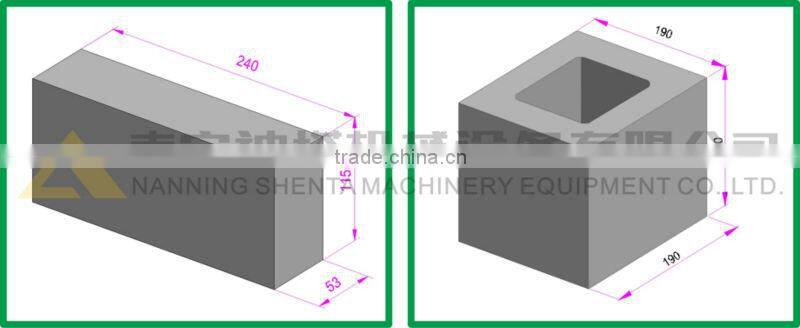

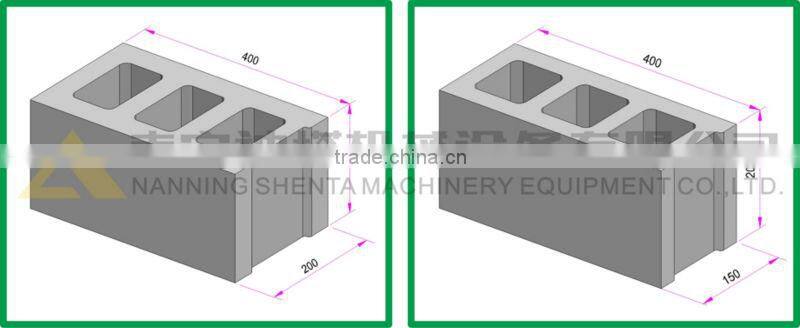

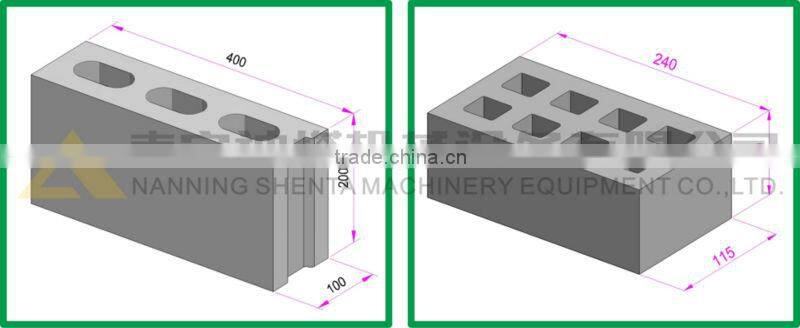

6. Brick Sample:
Shenta machine can produce: various types of concrete brick and block, cement brick and block, standard bricks, perforated bricks and paving bricks, solid/hollow/cellular masonry brick and block, paving stones with or without face mix, garden and landscaping products. slab, edger, kerbstone, grass blocks, solpe blocks, interlocking blocks. These products are of good quality, high compression strength and accurate dimension. Besides, more kinds can be produced such as paving bricks, color grassland bricks and curb bricks if the second raw materials feeding system is added to the line. Widely used in building, road paving, squares, gardens, landscaping. city constructions etc. |

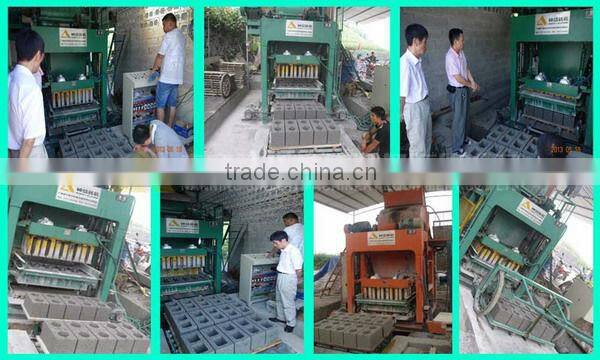

7. Brick and Block Prouduce Site
8. Exhibition
………………………………………………………………………………………………………………
9. Shenta Profile
WELCOME TO VISIT SHENTA FACTORY.
