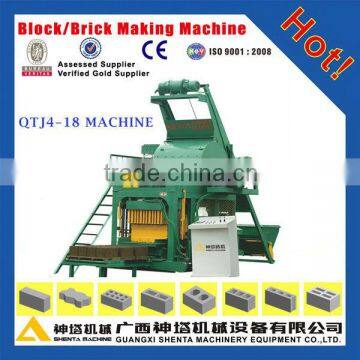

QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery thumbnail-1
QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery photo-1
US$ 25,000 - 28,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Contact Supplier Request Quote Chat Now
Guangxi Shenta Machinery Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or Fangcheng Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Molding Machine
Method Other, fully automatic&intelligent control &synchronous vertical vibration
Automatic Yes
Capacity 6400-33600 blocks/shift(8hours)
Place of Origin Guangxi, China
Brand Name SHENTA
Model Number QTJ4-18
Voltage 380V
Power 37kW
Dimension(L*W*H) 5600*3000*4300mm
Certification CE, ISO9001:2008, BV
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas




 I. Characteristic of  QTJ4-18 Block Making Machine :

  1. Control system: Adopted with Taiwan intelligent programmable logic controller (PLC) and high performance LCD, our brick machines can realize the man-machine conversation and fully automatic intelligent operation.

  2. High efficient vibration system: Adopt intelligent control and synchronous vertical vibration techniques. Bricks formed by synchronous vibrations of press head and mould table, which makes the forming speed faster and the bricks denser.
  3. Machinery Manufacturing: Made of high strength steels according to the national standard. Special welding techniques and advanced mechanical working processes bring high precision, durable and a long service life.
  4. Transmission system: Adopted with mechanical transmission and two pillars oriented. Simple and compact structure brings it stable and consecutive actions and easy to be maintained.
  5. Feeding system: Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.

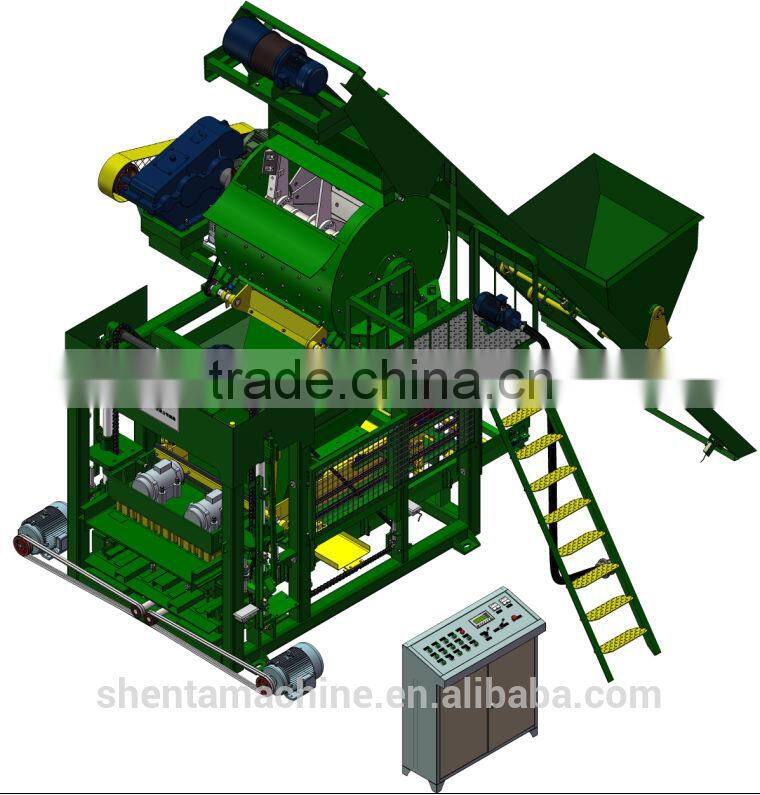

QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery



II. Advantage of QTJ4-18 Block Making Machine :
QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery
1.Hydraulic from Taiwan, Hydraulic valve from Japan ,wellknown brand.
2.Siemens PLC ,touch screen.
3.The steel is our best national standard No.45 steel.
4The welding is the best welding technology in our country,anti-wear, aseismatic,anti Moist .
5.The mould is high temperature carburizing heat treatment through 900 Degrees Celsius .
6.The mixer is included in QTJ4-18 host concrete block machine.

III. Main specification of QTJ4-18 Block Making Machine :

Operation Cycle

18-25

Pallet Size

840*450*30mm

Brick Height

60~200mm

MainPower Capacity

37Kw

Mixer Model

JS350

Vibration Force

45kN

Net Weight

7Ton

Main Machine Dimension

5600*3000*4300mm

Power Source

3Phase, 380V/50Hz (Special voltage & frequency is available according to your local power source.)

IV. Theoretic Productivity of QTJ4-18 Block Making Machine :

Brick Type

Dimension

Blocks/Cycle

Blocks/Hour

Blocks/Shift

Remark

Hollow Brick

390*190*190mm

4

800

6,400

  QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

Porous Brick

240*115*90mm

9

1,800

14,400

  QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

Paver Brick

(Non-color)

200*100*60mm

 12 2,400 19,200  QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

Solid Brick

240*115*53mm

21

4,200

33,600

  QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

  Note: Special brick model is available according to customer demand.



IIV. Process Flow of  QTJ4-18 Block Making Machine :



QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery



IIIV. Raw Material of  QTJ4-18 Block Making Machine :

Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.

1. Cement: 10%~20%;
2. Sand: 30%~40%;
3. Crushed Stone (<5cm): 30%~40%;
4. Fly Ash or Additive: 0~10%
5. Construction
QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

IIIIV. Brick Sample of  Block Making Machine & Application :

Our machine can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick, road traffic stone and so on.

 QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

 QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery
QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protected by  wooden boxes.

QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

About us:



1.SHENTA Machinery Equiment Co.,Ltd, established in 1973, is the earliest professional manufacturer of concrete block making machine. We are capable of manufacturing and supplying machineries and equipments either in manual, semi automatic and automatic operations.


2.After 40 years of hard working , SHENTA equipments have not only a big market in the Southwest china, our equipments are also exported to SouthEast Asia, Mid-East , Africa and Oceania etc. Accurate market positioning target at fine service which makes the company highly trusted by the customers.



3.SHENTA is the manufacturer of cement brick making machines, fly ash brick making machines, concrete block machines, hollow block machines, interlocking paver machines and curbing block machines that produce various sizes and designs of cement bricks, fly ash bricks, coloured bricks, concrete blocks, hollow blocks, interlocking pavers and curbing blocks, either by manual,semi automatic or automatic operations.Mould for various sizes and designs of bricks/block can be supplied according to customers specifications and requirements,



4. Facility:


CNC Lathe

06 sets

Boring Lathe

02 sets

Shaper

02 sets

   Milling Machine

04 sets

Press Brake

02 sets

  CNC Flame Cutter



01 set



Crane

10 sets

Shot Blast Machine

01 set

X-ray Inspection Instrument

01 set




QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

II. Quality Control & Certificate:

We adopt the high quality steel materials, and every process will have the strict inspection and test comply with the ISO-9001or CE standard to ensure the machine has perfect performance.

QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery







III. Exhibitions:

We take parts in many exhibitions every year,  such as Canton  Fair in  Guangzhou;  India  international engineering  machinery,  building  materials machinery,  mining  machinery,  engineering  vehicles  and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc. QTJ4-18 Construction Equipment, Automatic Blocks Making Machinery

IV. Contact Information:

 Welcome contact us via email or telephone as below:



 SKYPE: shentamachinery

 Tel:+86 771 3815999

 Mobile: +86.18376000779



Buying tips:

We'd like to offer you the block making machine. (we involve small scale, middle scale, and large scale machine);

when you want to buy,

Please tell me:

1.Your bricks size ( length, width and height);

2.Your bricks pricture(If you have);

3.Your production bricks /days
