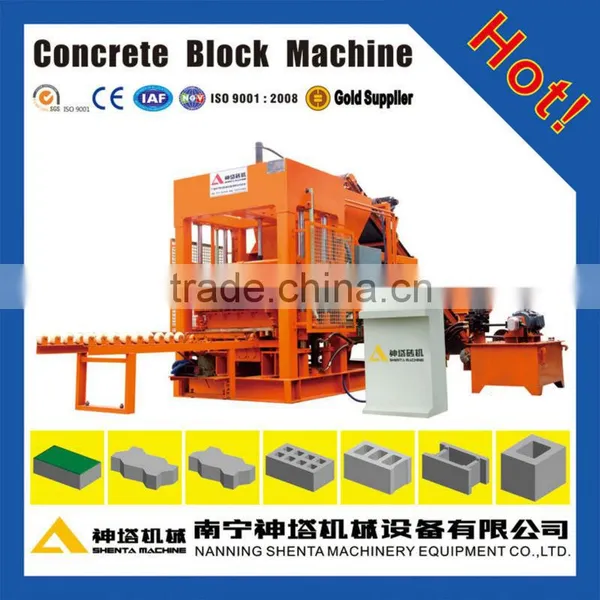

production line of concrete blocks,QTY10-15 paving block making machine

Seaworthy packing
production line of concrete blocks,QTY10-15 paving block making machine

Specifications

1. paving block making machine
2. High productivity
3. Manpower saving
4. More than 35 years manufacturing experience

production line of concrete blocks,QTY10-15 paving block making machine





Complete Production Line Layout

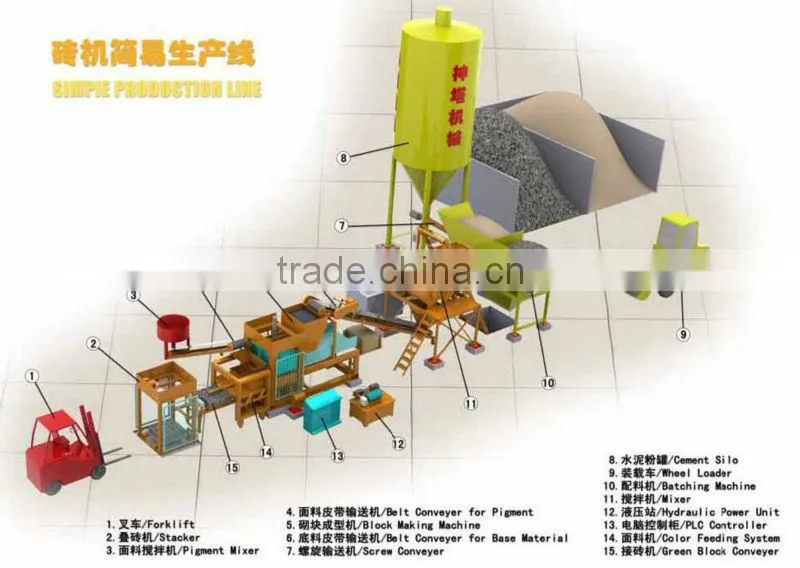

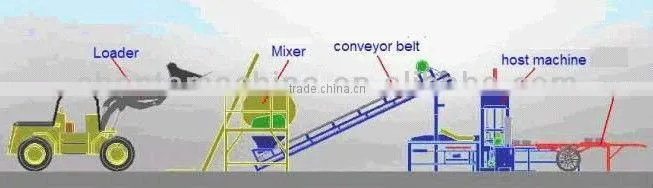

Simple Production Line Layout







Characteristic

1. Adopt Taiwan import PLC controller, HMI operates and brick produce are full automatic, has the function of automatic reset, lack material and lack pallet alarm, the operations are more humanity, the electric parts are provided by well-known company to ensure the safety and stable performance, the malfunction rate is more lower.
2. The main machine utilized the advanced pressure and vibration technology to form the block, the strength and density of brick is higher.
3. The hydraulic system parts adopt high quality production import from Taiwan or Japan, the working life is longer.
4. Swift speed arch breaking device can consumedly shorten the concrete material distributing time.
5. The control system has the data setting device, the distributing time and vibration time is resettable to meet various material.
6. Adopt the four guide pillar and super long-life wearable materials to ensure the high precision press of forming mould and press head.
7. Multi-purpose and strong adaptability, change different mould can produce various wall brick, porous brick, color paver brick, grass brick and shielding-slope brick.
8. Super strong welded profile steel frame structure provides the long term stable and reliable operation.
9. The high quality frequency converter can protect the working life, as well as reduce the power consumption.



Technical Specification



Outside Dimension (mm)	5200x2700x3100	Operation Cycle (s)	15~25
Main Machine Weight (Ton)	10	Vibration Frequency (rpm)	4300
Power Consumption (Kw)	50	Vibration Force (Kn)	120
Pallet Dimension (mm)	1100x950x25	Vibration Power (kW)	22





Theoretical Productivity



Brick Size	Blocks/Mould	Blocks/Hour	Blocks/Shift	Remark
Hollow Brick (400x200x200mm)	10	2,400	19,200
Hollow Brick (390x190x190mm)	10	2,400	19,200
Porous Brick (240x115x90mm)	21	5,040	40,320
Solid Brick (240x53x115mm)	45	10,800	86,400

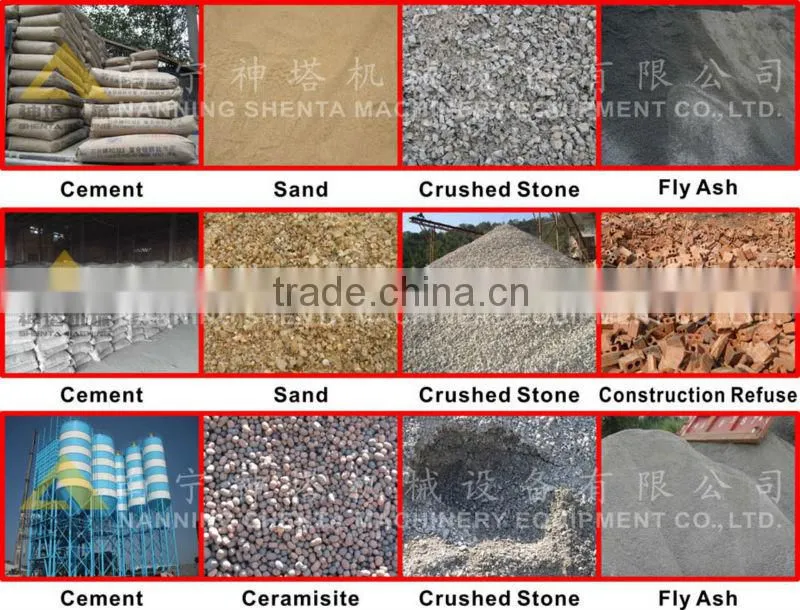

Raw material

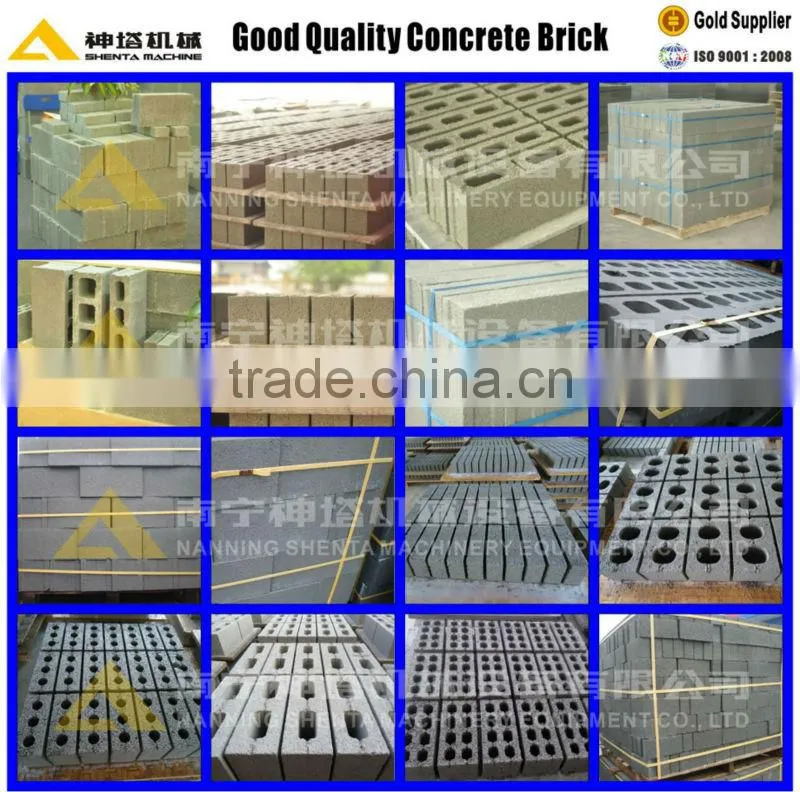

Brick Sample











Technological Process







Brick Making Moulds







Machine Working Site











Exhibition







Certificate and Factory View



if you are interested our block making machine ,please contact Alisa!





SERVICE:

Pre-sale:

Analyze the customer’s need and factory layout design, confirm scale of operation;

Select the fitting choice;

Provide perfect solution to set up a factory.



Sales:

Help to set up the factory;

Provide free service of installation and commissioning;

Provide training for operator and maintenance person.



After-sale:

Help customers to establish production craft formula;

Provide the consultation all the time;

Supply moulds and parts all the time.





We build  the  solid  future!
