QTY10-15 full automtic hydraulic brick making production machines

Seaworthy Packing

Specifications

brick making production machines ;
Hydraulic Press/vibration;
100,000 pieces/8h;
ISO9001:2008
Concrete brick factory.

brick making production machines QTY10-15, Your best tools go to Success and Prosperity!



1. Main Use:



1) Cement produces various products, hollow block, solid standard bricks, vias brick, brick pathways, square brick road shoulder, curbing stone, river brick, the terminal bricks, insulation layer, lawn brick.

2) A multi-purpose machine, completely meet market demand, the greatest degree of users reduce investment risks.



2. Technical Features:



1) Classic vibration mode, particularly suitable for production of high-strength blocks, such as standard bricks .Short molding cycles, and higher efficiency.

2) Vibration machine for efficient vibrator, exciting force powerful, the density effect of better products.

3) Forming large area, can produce a variety of cement products, a wide range of production.

4) Compulsory mechanical positioning, infantry expected rapid, uniform and manufactures precision, consistency, good.

5) PLC automatic control systems, interactive user interface, the control system, security configuration logic control, production procedures and fault diagnosis display.

6) The low cost of production, raw materials, make full use of sand, stone powder, flour, coal ash, slag, and other residue.



3. Main Specification:



Outside Dimension (mm)	5200x2200x2800	Operation Cycle (s)	15~25
Main Machine Weight (t)	12	Vibration Frequency (Hz)	0~50
Total Power Capacity (Kw)	50	Vibration Power (Kw)	25
Pallet Dimension (mm)	1100x950x25	Brick Height (mm)	60~200



4. Main Productivity:



Brick Size	Blocks/Cycle	Blocks/h	Blocks/8h	Blocks/Year
Hollow Brick (400X200X200mm)	10	1,800	14,400	4,500,000
Hollow Brick (400X200X150mm)	12	2,160	17,280	5,500,000
Hollow Brick (400X200X100mm)	18	3,240	25,920	8,500,000
Porous Brick (240X115X90mm)	28	5,040	40,320	13,000,000
Solid Brick (240X115X53mm)	56	13,440	107,520	35,000,000



5. Cement paving bricks machine and Production Line Layout:



                                                                   Main Machine Outlook



                                                                Brick Production Line Layout

Equipment List:



1. Cement Silo;	2. Cement Conveyor;	3. Cement Scale System;	4. Aggregated Batcher;
5. Concrete Mixer;	6. Brick Forming Machine;	7. Hydraulic Pump Station;	8. Belt Conveyor;
9. Automatic Pallet Loader;	10. Brick Discharge Table;	11. Automatic Control Table;	12. Brick Forming Die;
13. Automatic Brick Stacker;	14. Forklift;



                                                                         Machine Details



                                                                Compulsory Concrete Mixer

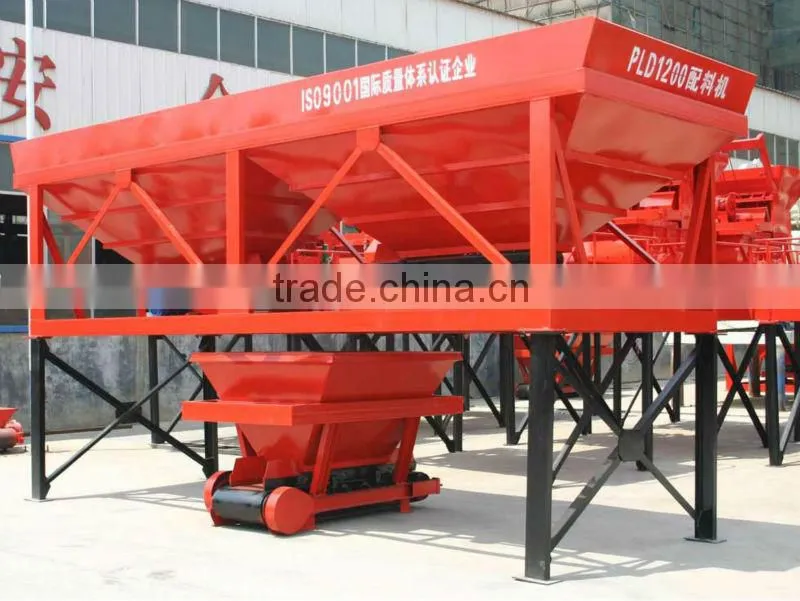

                                                            PLD1200 Aggregated Batcher



                                                                     Automatic Brick Stacker



6. Brick Raw Material





MU10.0 Strength Brick Material Rate:

1. Cement-12%; 2. Fine Stone Powder or Fine Sand-40%; 3. Crushed Stone (<8mm)-40%; 4. Fly Ash or Additive-8%



7. Brick Sample:



                                                                   Solid Brick (MU10.0)



                                                          Hollow Brick (MU20.0)



                                                              Arc Brick (MU20.0)



                                                              Interlock Paving Brick

8. About SHENTA Machine:



Nanning SHENTA Machinery Equipment Co., Ltd, lies at the beautiful “Green City of China” – Guangxi Nanning, is one of the first group of the manufacturer specialized in research, development, fabrication of the concrete block machine, mixing machine and other construction material machine in China, pass the ISO 9001:2008 Certificate. We uphold the philosophy “advanced technology, nice craft, strict supervision and perfect service”, provide customer the excellent and reliable equipments for the new and eco-friendly construction material industry.

SHENTA Machine locate in the south of China, far from the frontier of Vietnam only 200km, is the closest Brick Machine Manufacture from ASEAN, with the advantageous geographical location and transportation, we build the solid foundation with the ASEAN country to develop the long-term and stable cooperation.

SHENTA Machine’s plant occupy 40,000m2 area, include 20,000m2 workshop, 210 workers team, 20 administrators and 15 technicians, produce the brick production lines and machine more than 500 units per annum, sell in domestic and export to South-east Asia, USA, Afric and Middle East region.



Welcome Contact Maky (Skype: Shenta_maky, Mobile: +86.13788113588) for more information and specification of the brick making production machines QTY10-15
