Specifications
Concrete block and brick making machineImport PLC controller
Machine including mixer
ISO9001 , CE, & BV

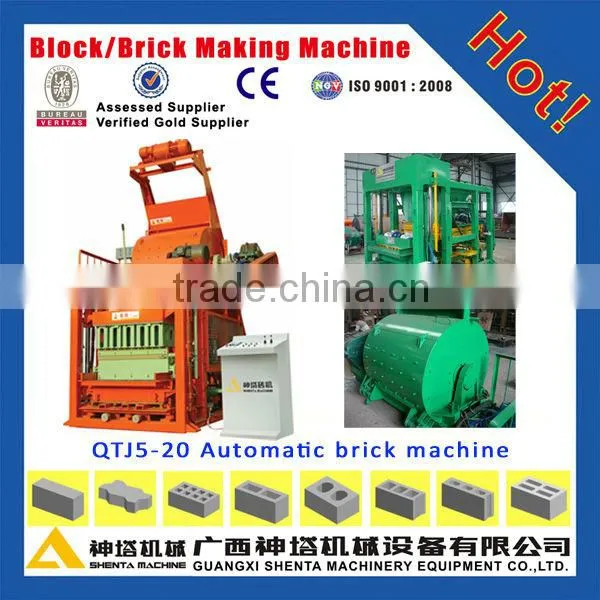

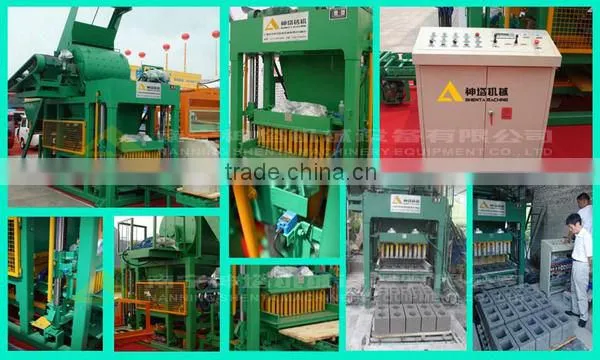

QTJ 5-20 automatic concrete cement brick and block making machine
…………………………………………………………………………………………………
1. Our Advantages |
|
→ We are brick and block making machine manufacturer with 40 years professional experience. → We can offer large scale, millde scale and small scale brick and block making machine. → We have more than 40,000 square meters production area with over 200 workers. → Welcome to visit Shenta factory. |
………………………………………………………………………………………………………………
2. Characteristics
1 |
Full mechanical transmission with feature of compact structure and reasonable design, stable running, lower malfunction rate, easy operation and maintenance; |
2 |
Adopt Japan Mitsubishi PLC program control, produce the cement brick automatically, Electrical parts ate provided by the famous brand manufacturer, the operation is more safety and reliable; |
3 |
The main making machine utilize the pressing and high frequency vibration to mold the brick, the finished product is more dense and solid; |
4 |
The high speed arch breaking device can consumedly shorten the material distributing time |
5 |
By changing difference mould, the block making machine can produce either load-bearing brick or non-load-bearing brick, and multitude shape wall brick; |
6 |
Machine frame adopt super strong profile steel to weld to provide the stability and reliability intervening the long working life |
………………………………………………………………………………………………………………
3. Specifications
Outside Dimension (mm) |
3400x2040x4300 |
Operation Cycle (s) |
20~25 |
Main Machine Weight (ton) |
8 |
Vibration Frequency (rpm) |
4300 |
Power Consumption (kw) |
44 |
Vibration Force (kn) |
55 |
Pallet Dimension (mm) |
1050x550x30 |
Vibration Power (kw) |
15 |
Operator quantity |
4 people |
Land required |
3500m2 |
………………………………………………………………………………………………………………
4. Prouduce Capacity
Brick Size |
Blocks/Mould |
Blocks/Hour |
Blocks/Shift |
Remark |
Hollow Brick (400x200x200mm) |
4 |
580~720 |
4,600~5,700 |
|
Hollow Brick (400x150x200mm) |
6 |
860~1,080 |
6,900~8,600 |
|
Hollow Brick (400x100x200mm) |
9 |
1,300~1,620 |
10,400~13,000 |
|
Hollow Brick (390x190x190mm) |
5 |
720~900 |
5,800~7,200 |
|
Porous Brick (240x115x90mm) |
16 |
2,300~2,880 |
18,400~23,000 |
|
Solid Brick (240x53x115mm) |
32 |
4,600~5,760 |
36,800~46,000 |
|
Interlock Brick (225x112x60mm) |
16 |
2,300~2,880 |
18,400~23,000 |
………………………………………………………………………………………………………………

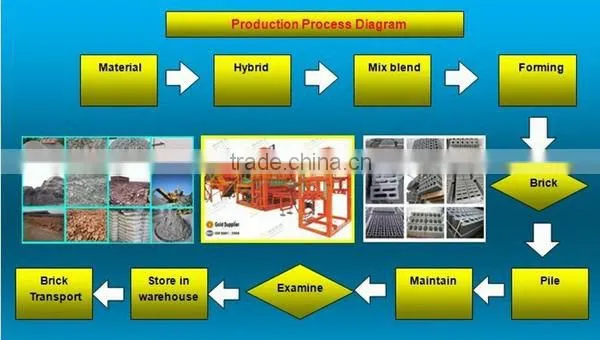

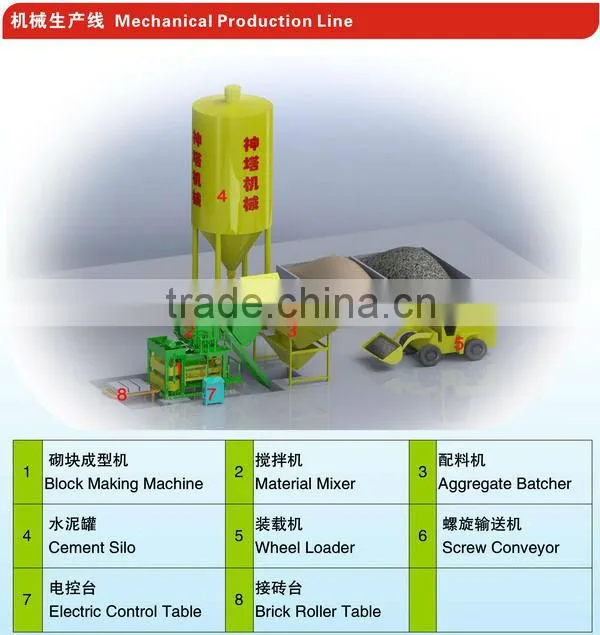

5. Production Line
………………………………………………………………………………………………………………
6. Raw Materials |
|
Ⅰ.Cement—12%; Ⅱ. Fly ash or refine stone powder or refine sand—38%; Ⅲ. Crushed stone (diameter<15mm)—50% Materials such as sand, crushed stone, cement, dust and fly coal ash, cinder, gravel, perlite, wet ash in power plant, dry ash, hybrid ash, boiler slag, spontaneous combustion coal gangue, mountain flour, haydite, mine tailings, scoria, steel slag, carbide slag, water-granulated slag, wind-granulared slag, dry slag, smelting slag, sulfuric acid residue, phosphate fertilizer slag, caustic sludge, laterite in aluminum manufacturers, electrolytic copper slag, stonework waste, potsherd, waste brick power, construction waste, etc(among which one or two kinds are enough) |
………………………………………………………………………………………………………………

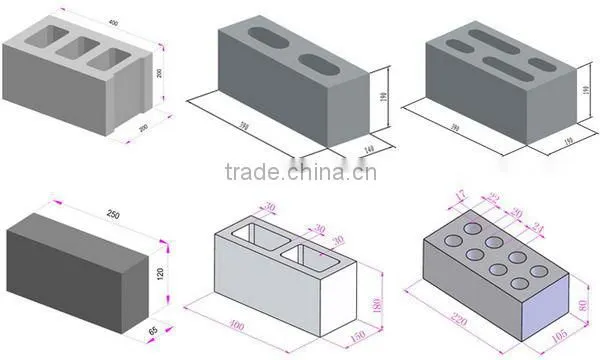

7. Produce Brick and Block |
Shenta machine can produce: various types of concrete brick and block, cement brick and block, standard bricks, perforated bricks and paving bricks, solid/hollow/cellular masonry brick and block, paving stones with or without face mix, garden and landscaping products. slab, edger, kerbstone, grass blocks, solpe blocks, interlocking blocks. These products are of good quality, high compression strength and accurate dimension. Besides, more kinds can be produced such as paving bricks, color grassland bricks and curb bricks if the second raw materials feeding system is added to the line. Widely used in building, road paving, squares, gardens, landscaping. city constructions etc. |
………………………………………………………………………………………………………………

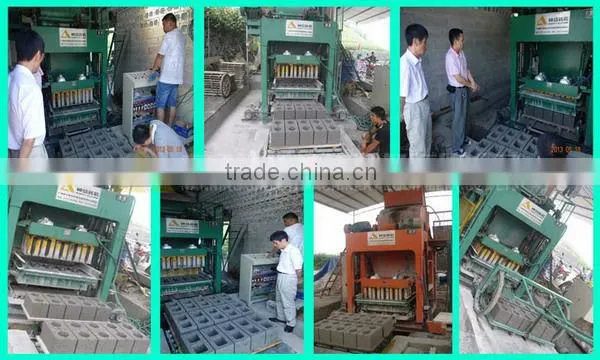

8. Brick and Block Prouduce Site
………………………………………………………………………………………………………………
9. Exhibition
………………………………………………………………………………………………………………

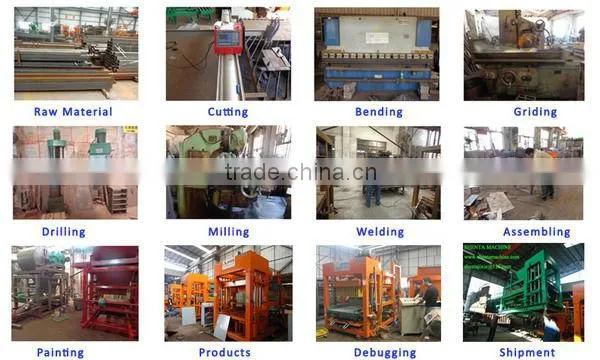

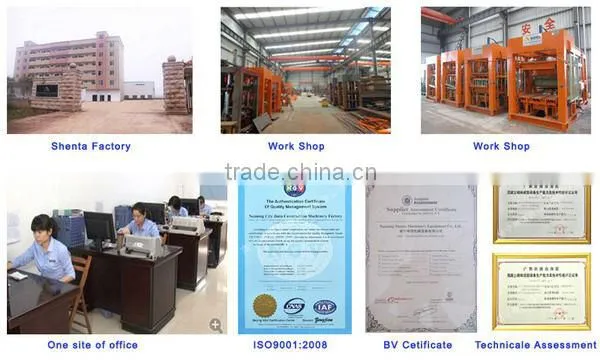

10. Shenta Profile |
……………………………………………………………………………………………………………
Welcome to visit Shenta machine factory.
