PLC Control QT5-15 Automatic Hydraulic Block Making Machine in Ghana

Standard seaworthy packing suitable for sea long distance transportation

Specifications

QTY5-15  Automatic hydraulic block making machine in ghana

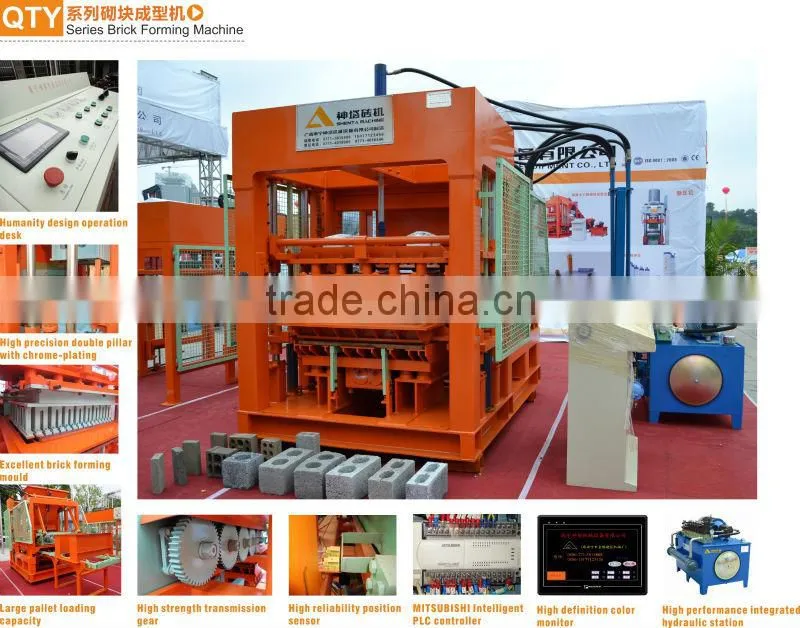

  Characteristic of  QT5-15 Automatic hydraulic block making machine in ghana 1.Conttem: Adopt intelligent programmable logic controller (PLC) and high performance touch screen. Realize the man-machine conversation and fully automatic intelligent operation.

 2.High efficient vibration system: Adopt intelligent control technique in the frequency conversion vibration system, distribute materials

in low frequency and form the bricks in high frequency. Moreover, with the synchronous vertical vibration technology, the brick forming

speed becomes faster and the bricks are more compacted.

3.Transmission system: Adopt fully hydraulic transmission, four pillars oriented and synchronous mechanism.  Machine operation is stable,

 precise and less malfunctions.

4.Feeding system: Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.

5.Machinery Manufacturing: Made of high strength steels according to the national standard. Special welding techniques and advanced mechanical

working processes bring high precision, durable and a long service life.

Main Specification of  QTY5-15 Automatic hydraulic  block making machine in ghana

Theoretic Productivity of QT5-15 Automatic hydraulic  block making machine in ghana

Brick Type	Dimension	Blocks/Cycle	Blocks/Hour	Blocks/Shift	Remark
Hollow Brick	390*190*190mm	5	1200	9600
Porous Brick	240*115*90mm	16	3840	30720
Paver Brick	200*100*60mm	18	4320	34560
Solid Brick	240*115*53mm	32	7680	61440

 Note: Special brick model is available according to customer demand.

Components of Automatic Production Line:

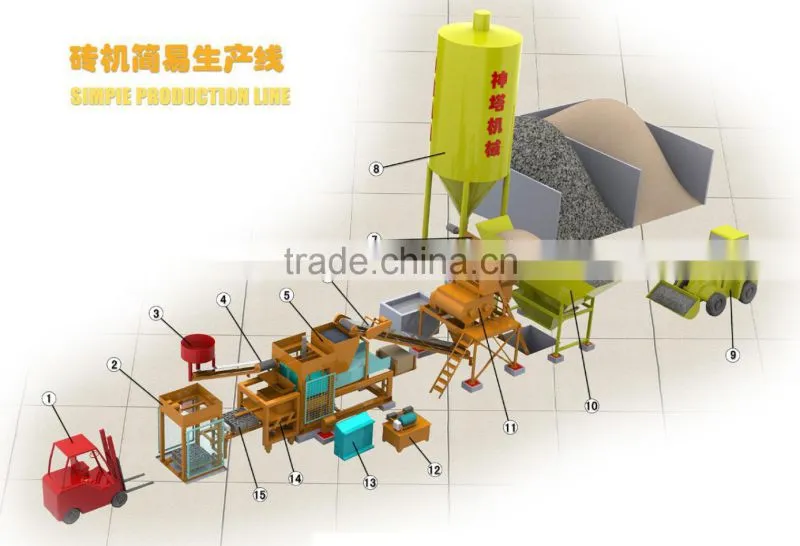

Simple Automatic Production Line of  QT5-15 Automatic hydraulic block making machine in ghana

Equipment List:

Raw Material of QTY5-15 Automatic hydraulic  block making machine in ghana

By changing difference moulds , Our machine  Automatic hydraulic block making machine in ghana can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.

1.   Sand: 30~40%;                      2. Fly Ash or Additive: ~10%
3.   Cement:  10%~20%;             4. Crushed Stone (<5cm): 30~40%;

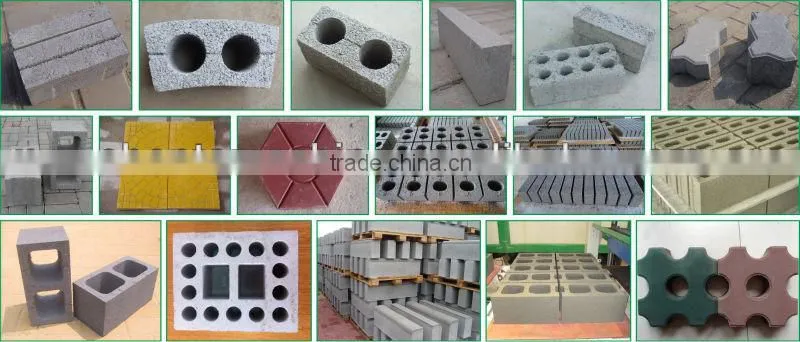

Brick Sample of  QTY5-15 Automatic hydraulic  block making machine in ghana

By changing difference moulds, Our machine Automatic hydraulic block making machine in ghana can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick, road traffic stone etc .

Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protect by the wooden box.

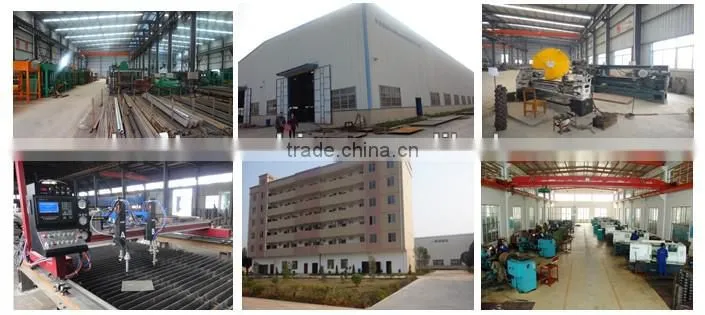

Factory Ability:

Quality Control:

We adopt the high quality steel materials, and every process will have the strict inspection and test to ensure the machine has perfect performance.

Exhibitions:

We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India;  The ASEAN-China Exposition in Nanning, etc.

Pre-sale:

Analyze the customer’s need and factory layout design, confirm scale of operation;

Select the fitting choice;
 Provide perfect solution to set up a factory.

Sales:

Help to set up the factory;

Provide free service of installation and commissioning;

Provide training for operator and maintenance person.

After-sale:

Help customers to establish production craft formula;

Provide the consultation all the time;

Supply moulds and parts all the time.

Q1:  What is the standard packing for the brick machine?
A1: It depends. If necessary, wooden cases with fumigation are available.

Q2:  If OEM  and ODM services available?
A2: Yes. We can make the machines with customers’ brand and logo. With professional engineers, we also

can design and produce the machines according to customers’ requests.

Q3: What is the production lead time?
A3: Normally, if the brick machine are standard,  it will be 35 to 40days. If not, the production lead time will be longer.

My dear friends, if you have any questions about the Automatic hydraulic block making machine in ghana , please feel free to  contact Alice:)
