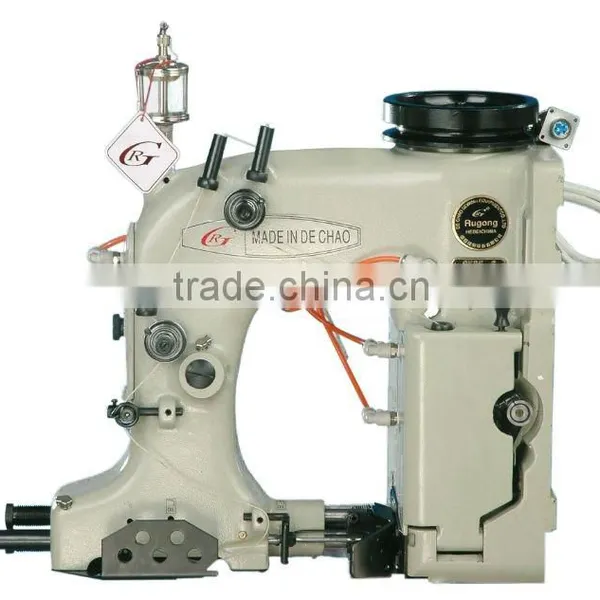

GK35-6A Automatic Dual Thread Chain Stitch Sewing Machine

Specifications

applicable to the chemistry industry, construction, chemical fertilizer, foods, ports, warehouses automatic bag sewing

GK35-6A Automatic industrial sewing stitching machine







The machine adopt semi-closed structure for easy matainance



suitable for closing filled bags and sacks made of cotton,jute,plastic,and paper etc.





Model Item	GK35-2C	GK35-6A
Max..speed	1900 rpm
Working Speed	1700rpm
Thickness of material	8mm
Range of Stitch Width	6.5-11mm
Stitch Type	Double thread chain stitch
Thread Type	20/6,20/9 synthetic fiber thread or cotton thread
Needle	Model 80800 200-250#
Pulley	Φ114mm
Thread chain cutter	Manual operated	Electro-pneumatic operated
Motor	Common motor	Brake motor
Motor power	370w
Weight	27kgs	30kgs
Size(L*W*H)	350×215×440(mm)	350×240×440(mm)

















































Work process:   assembled on the conveyor,when  the bags  filled with material are within the range of 10cm from the sewing machine , The sewing machine automatically start under the control of the light control switch, sewing bag, automatic  cutting line braid, then Auto stop.
