Specifications
1.semi-close structure2.easy maintenance
3.high speed, wear resistance,flexible

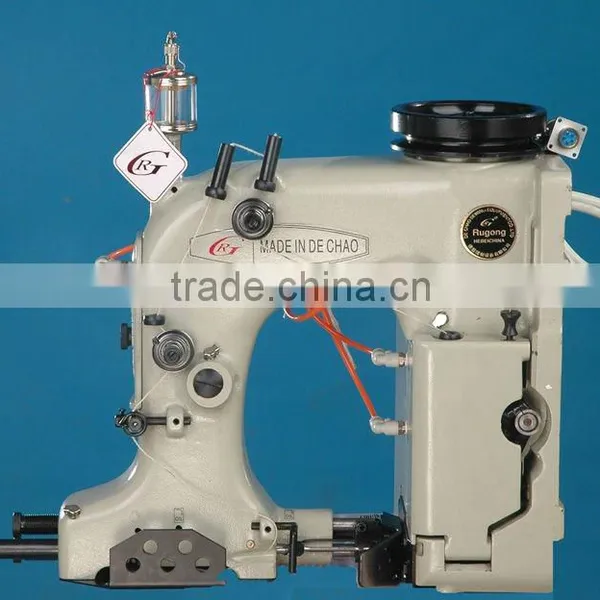

Automatic Industrial Bag Sewing Machine
The machine adopt semi-closed structure for easy matainance
suitable for closing filled bags and sacks made of cotton,jute,plastic,and paper etc.
Model Item |
GK35-2C |
GK35-6A |
Max..speed | 1900 rpm | |
Working Speed | 1700rpm | |
Thickness of material | 8mm | |
Range of Stitch Width | 6.5-11mm | |
Stitch Type | Double thread chain stitch | |
Thread Type | 20/6,20/9 synthetic fiber thread or cotton thread | |
Needle | Model 80800 200-250# | |
Pulley | Φ114mm | |
Thread chain cutter | Manual operated | Electro-pneumatic operated |
Motor | Common motor | Brake motor |
Motor power | 370w | |
Weight | 27kgs | 30kgs |
Size(L*W*H) | 350×215×440(mm) | 350×240×440(mm) |
Work process: assembled on the conveyor,when the bags filled with material are within the range of 10cm from the sewing machine , The sewing machine automatically start under the control of the light control switch, sewing bag, automatic cutting line braid, then Auto stop.
