Home > Products > Plastic pipe production line > Plastic extrusion machine
Plastic extrusion machine
- 10 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Application: | Other, pipe, granules, sheet, film, profile, plates | Plastic Processed: | Other, PE, PP, PPR, PVC, WPC |
Screw Design: | Other, single-screw, doulbe-screw | Automatic Grade: | auto | Place of Origin: | Jiangsu, China |
Brand Name: | Xinda | Model Number: | SJ, SJZ | Voltage: | 220, 380, 400, 440V |
Power(W): | 45-315kw | Dimension(L*W*H): | 3600*1600*1600 mm | Weight: | 3500kg |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

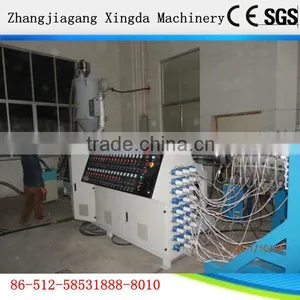

Plastic extrusion machine
SJ series single screw extruder
SJ series single screw extruder is developed with German technology. Screw is separate type with mixing part. Barrel is grooved feed type with lengthened feeding part. With separate screw and grooved barrel, the extruder has advantages:Optimizing melt process to get high output.Extrusion with low melt temperature.
The cut from separate clearance makes material evenSuitable for all kinds of polyolefin material especially PE, PP and PP-R..
Main technical parameter
Model | Screw diameter (mm) | Rotational speed (rpm) | Motor power (kw) | Motor type | Output (kg/h) | Center height (mm) |
SJ-25/25 | 25 | 25 | 1.5 | AC | 3 | 1000 |
SJ-30/25 | 30 | 50 | 2.2 | AC | 5 | 1000 |
SJ-65/30 | 65 | 20-120 | 45 | AC | 150 | 1000 |
SJ-65/33 | 65 | 20-120 | 55 | AC | 200 | 1000 |
SJ-75/33 | 75 | 12-120 | 75/90/110 | DC | 350 | 1000 |
SJ-90/33 | 90 | 12-100 | 160 | DC | 450 | 1100 |
SJ-120/33 | 120 | 10-80 | 250/315 | DC | 850 | 1200 |
SJ-150/33 | 150 | 7.5-75 | 315 | DC | 1200 | 1300 |
SJZ series conical twin-screw extruder
SJZ series conical twin screw extruder is even mixing, good quality, high output, wide application and long working life. It can make PVC powder into pipes, boards and profiles with different moulds and downstream.
Main technical parameter
Model | Screw diameter (mm) | Rotational speed (rpm) | Motor power (kw) | Motor type | Output (kg/h) | Center height (mm) |
SJZ-45 | 45/100 | 45 | 15 | AC | 100 | 1000 |
SJZ-51 | 51/105 | 45 | 18.5 | AC | 120 | 1000 |
SJZ-55 | 55/110 | 37 | 22 | AC | 150 | 1000 |
SJZ-65 | 65/132 | 38 | 37 | AC | 300 | 1000 |
SJZ-80 | 80/156 | 38 | 55 | DC | 450 | 1100 |
SJZ-92 | 92/188 | 36 | 110 | DC | 850 | 1200 |
