PVC pipe extrusion machine
Process flow

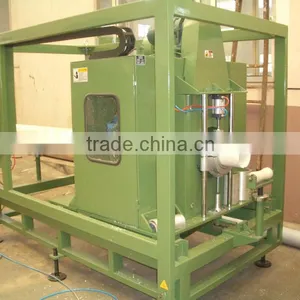

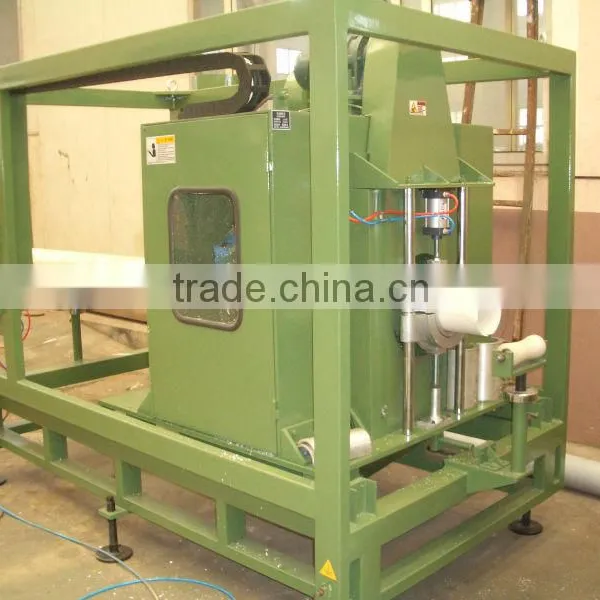

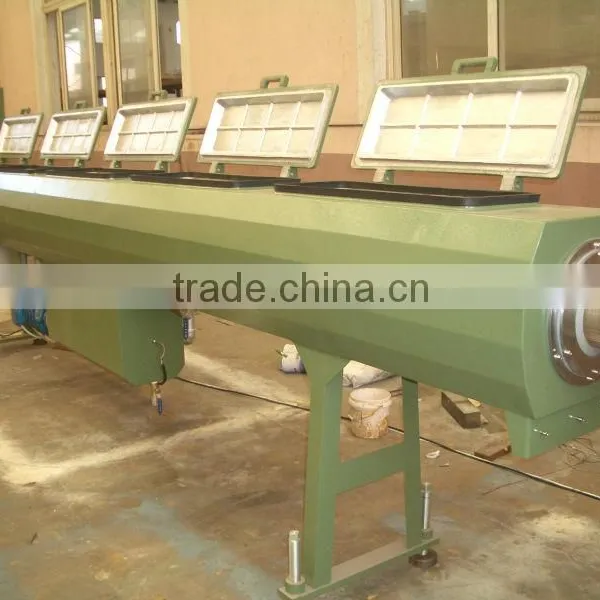

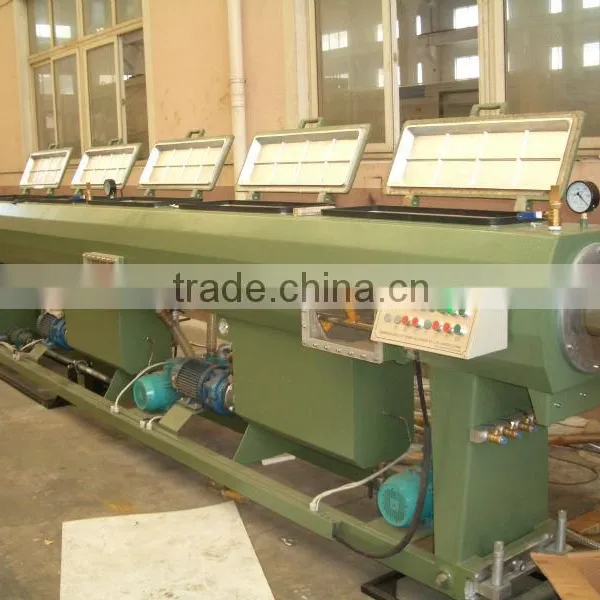

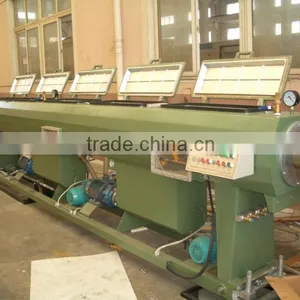

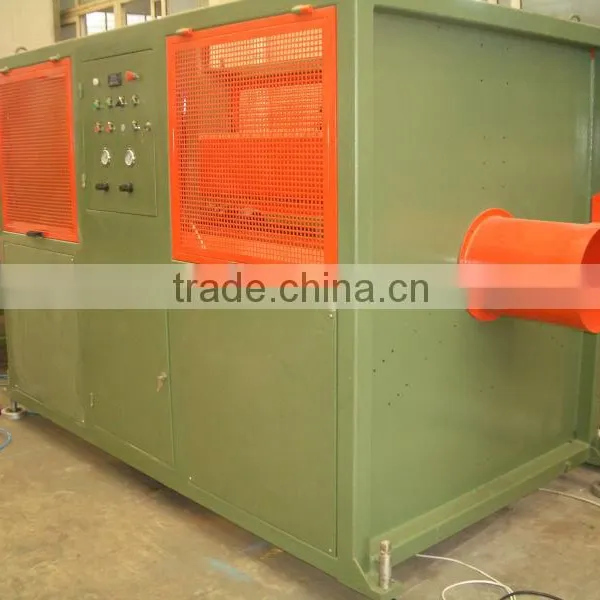

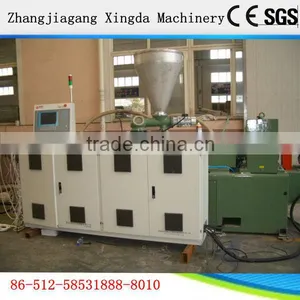

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum calibration tank → water cooling tank → printer → haul-off machine → cutting machine → pipe storage shelve
Technical parameter
Model |
PVC-16/63 |
PVC-20/110 |
PVC-50/160 |
PVC-75/250 |
PVC-110/315 |
PVC-200/450 |
PVC-315/630 |
PVC-500/800 |
Pipe diameter |
16-63mm |
20-110mm |
50-160mm |
75-250mm |
110-315mm |
200-450mm |
315-630mm |
500-800mm |
Max output |
120kg/h |
120kg/h |
180kg/h |
300kg/h |
450kg/h |
650kg/h |
800kg/h |
1400kg/h |
Extrusion speed |
1.5-15m/min |
0.8-8m/min |
0.5-5m/min |
0.4-4m/min |
0.3-2m/min |
0.1-1m/min |
0.07-0.7m/min |
0.05-1 m/min |
Extruder model |
SJZ-50/105 |
SJZ-50/105 |
SJZ-55/110 |
SJZ-65/132 |
SJZ-80/156 |
SJZ-92/188 |
SJZ-92/188 |
SJZ-105/220 |
Installed power |
45kw |
45kw |
55kw |
75kw |
105kw |
160kw |
205kw |
305kw |
Center height |
1000mm |
1000mm |
1000mm |
1000mm |
1100mm |
1100mm |
1200mm |
1350mm |
Installation area |
22*2.5*2.0m |
24*2.8*2.0m |
24*2.8*2.0m |
30*2.8*2.2m |
35*3.0*2.4 m |
36*3.0*2.4 m |
38*3.2*2.8 m |
42*3.5*3.2 m |
