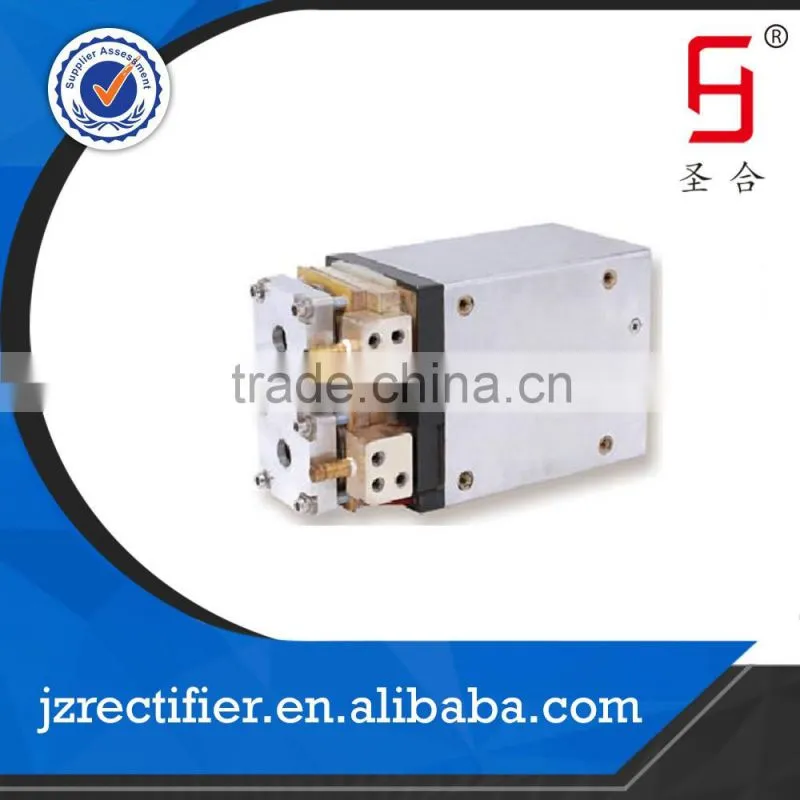

Medium frequency 130KVA resistance welding transformer
Medium frequency 130KVA resistance welding transformer
Name |
Technical parameter |
Primary nominal voltage |
500V |
Frequency |
1000HZ |
Secondary no-load voltage |
9.2V |
Transformer capability and secondary current |
63 KVA (ED100z%) 7 KA |
|
98 KVA(ED50%) 12KA |
|
130 KVA(ED20% 15KA |
Insulation class |
F |
Weight |
14kg |
Turns ratio |
54 |
Maximum environment Temperature |
70 ℃ |
Cooling water quantity |
≥6L/Min ,≤30℃ |
Type of Diode |
ZE10500 A/200V*2 |
Jinzhou Shenghe Power Electronic Co., Ltd. is China’s first independent research and development production of resistance welding machine delicated rectifier diode manufacturer. Our main production include: Capsule type device, Stud type device, Power module, Bridge rectifier and Welding machine device.We specialized in this field for many years. We have preferential price and high quality,which makes your products more competitive in your market. If you have any inquiry, please feel free to contact us.

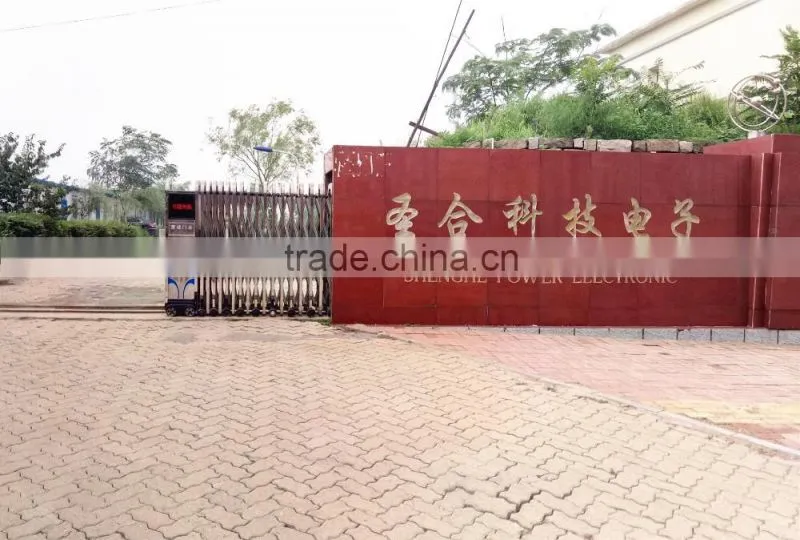

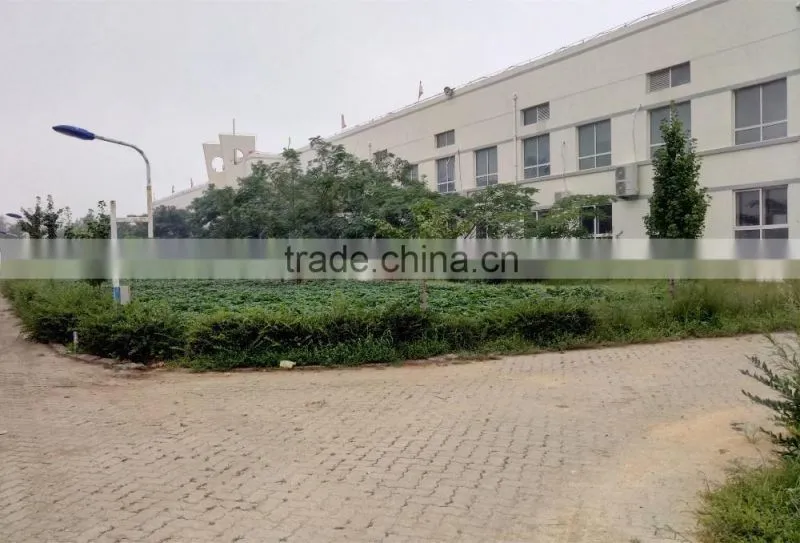

Company Environment
Participate in the 21st Beijing ESSEN Welding&Cutting Fair

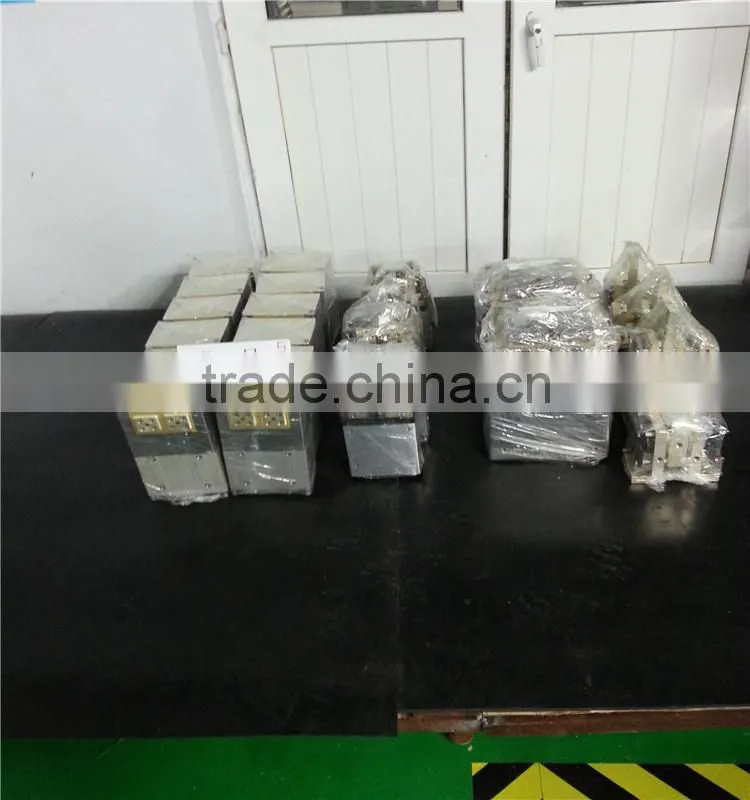

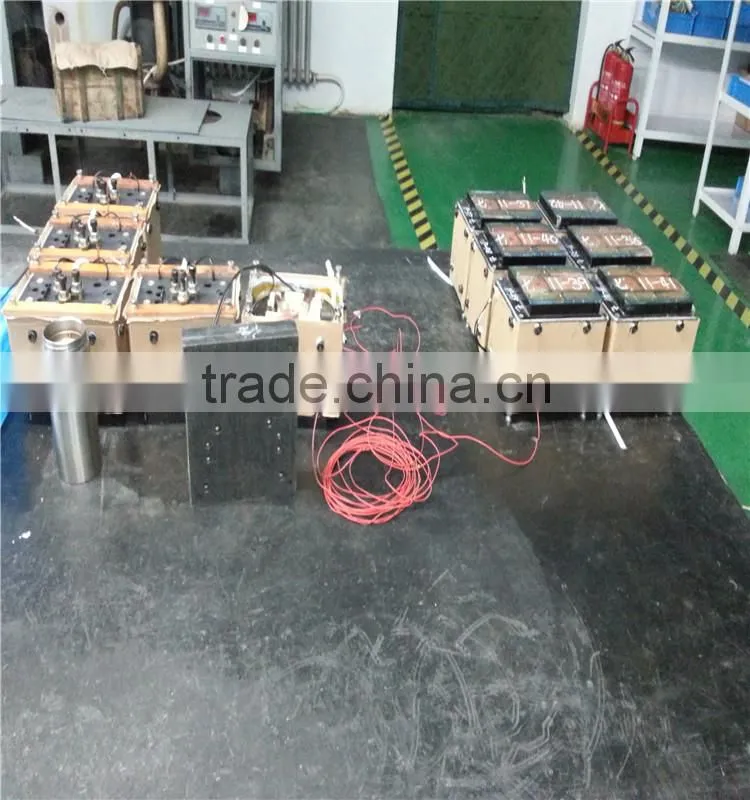

Products Show
Enterprise Qualification
1. How is your Quality control?
100% of the products will be tested for Parameters and Appearance. At the same time ,we have detailed records for all this products. Once everything is ok, We will send the goods.
2. Are you manufacturers?
yes,We are the professional manufacturers of power semiconductor devices and silicon rectifier equipment production enterprise for many years.
If you have any other question please feel free to contact us at belows:
Sales Jack Li
JinZhou ShengHe Power Electronic Co., Ltd
www.jzrectifier.en.china.cn
Tell:86-416-2936666
Skype:weldingdiodes at hotmail dot com
