Specifications

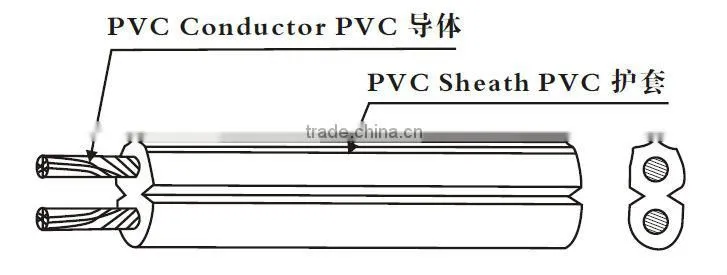

UL SPT-2 16awgx2c American power cable flat electrical wire1. PVC sheathed
2. UL approved
3. 300V
4. 16AWGx2C
UL SPT-2 16awgx2c American power cable USA power cable flat electrical wire
1. PVC sheathed
2. UL approved
3. Rating: 300V 60°c- 105°c
4. Color: White
5. 16AWGx2C
| Type |
Specification
|
Conductor Construction (No./mm) |
Insulation thickness (mm) |
Overal diameter (mm) |
Max Conductor resistance at 20°C (Ω/km)
|
||
| No. of core | AWG |
Bare |
Tinned |
||||
| SPT-1 | 2 | 18 | 41/0.160 | 0.76 | 2.8 ± 0.1x5.6 ± 0.2 |
21.8 | 23.4 |
| 3 | 18 | 41/0.160 | 0.76 | 2.8 ± 0.1x8.0 ±0. 2 |
21.8 | 23.4 | |
| SPT-2 | 2 | 18 | 41/0.160 | 1.14 | 3.5±0.1x7.0 ± 0.2 | 21.8 | 23.4 |
| 16 | 65/0.160 | 1.14 | 3.8±0.1x7.4 ± 0.2 | 13.7 | 14.7 | ||
| 3(1) | 18 | 41/0.160 | 1.14 | 3.5±0.1x9.0 ± 0.2 | 21.8 | 23.4 | |
| 16 | 65/0.160 | 1.14 | 3.8±0.1x10.0±0.2 | 13.7 | 14.7 | ||
| 3(2) | 18 | 41/0.160 | 1.14 | 3.5±0.1x10.1±0.2 | 21.8 | 23.4 | |
| 16 | 65/0.160 | 1.14 | 3.8±0.1x11.0 ± 0.2 | 13.7 | 14.7 | ||
| SPT-3 | 2 | 18 | 41/0.160 | 1.52 | 4.4±0.1x8.7 ± 0.2 | 21.8 | 23.4 |
| 16 | 65/0.160 | 1.52 | 4.7±0.1x9.5 ± 0.2 | 13.7 | 14.7 | ||
| 14 | 41/0.254 | 2.03 | 6.0±0.2x12.0 ± 0.3 | 8.59 | 9.24 | ||
| 12 | 65/0.254 | 2.41 | 7.5±0.2x14.0 ± 0.3 | 5.41 | 5.82 | ||
| 3 | 18 | 41/0.160 | 1.52 | 4.4±0.1x10.8 ± 0.2 | 21.8 | 23.4 | |
| 16 | 65/0.160 | 1.52 | 4.7±0.1x12.0 ± 0.3 | 13.7 | 14.7 | ||
| 14 | 41/0.254 | 2.03 | 6.0±0.2x14.5 ± 0.3 | 8.59 | 9.24 | ||
| 12 | 65/0.254 | 2.41 | 7.5±0.2x16.0±0.3 | 5.41 | 5.82 | ||

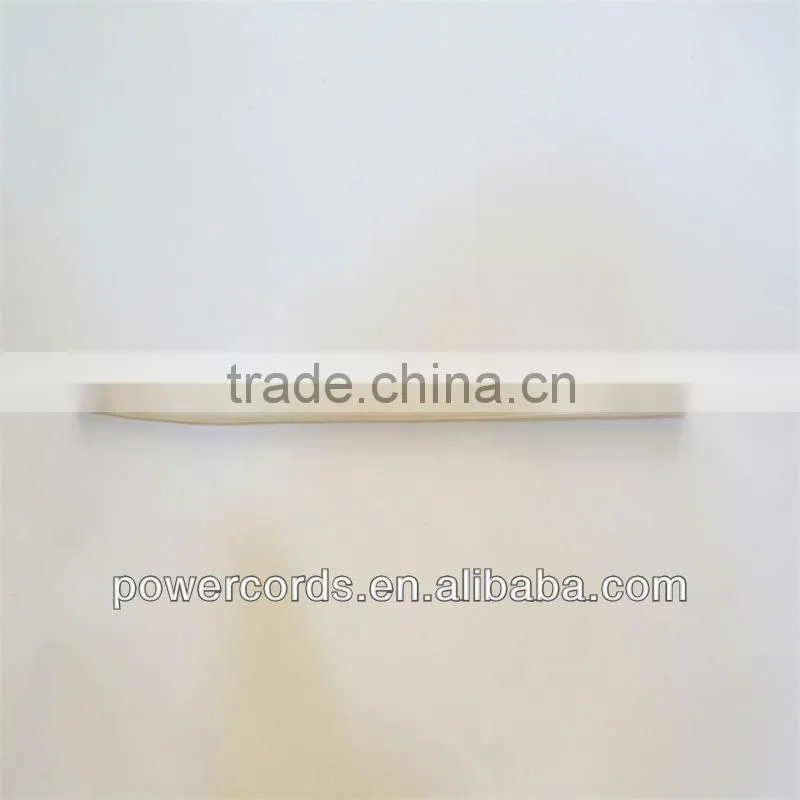

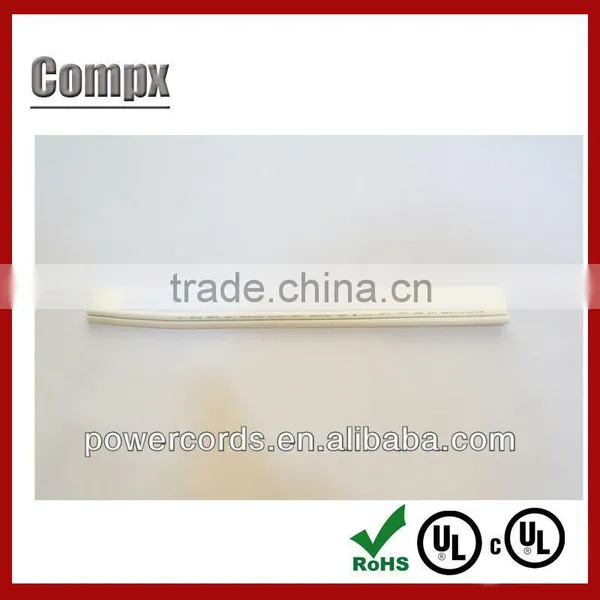

Product Picture:
Factory Picture:
Certificated Approval:
CCC, UL/CUL,CEE,VDE,GS,NF,BS,CSA,PSE,SAA,SABS,SEV,NBR,EK,KEMA and so on.
QC Team :
A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Market:
Contact:
We will reply your email within 24 hours.
You can call us at any time if there is any question, thanks.
If you want to know more information, pls do not hesitate to contact us!
Email: tina(at)
