Applied for continuing spray the surface of:
*Glass-steel door
*Aluminium alloy door
*Timber door
*Cabinet door
Door Automatic Spraying Equipment / door spraying machine /
spray painting equipment
JXUV -DAS -1300
1. Door Automatic Spraying Equipment Suit for continuing surface spraying according to the heteromorphosis work piecessuch,such as plastic-steel door,glass-steel door,aluminium
alloy door,timber door,cabinet door and glass.
2. Five-axis CNC machine painting structures, paint spraying speed, the gun can be flexible rotation angles, fully realized personification spray way.
3. Door Automatic Spraying Equipment is a kind of humanoid operation, automatic control, repeatable programming,can be perform a variety of spraying work in the three dimen
sional space.
4. Door Automatic Spraying Equipment is suitable for many varieties flexible manufacturing. It has a important role for stability and improve product painting quality, production efficiency, improve the labor intensity and the rapid upgrading of the product.
5. Door Automatic Spraying Equipment Saving operation time, easy to operation.
6. Door Automatic Spraying Equipment machine is suit for continuing surface spraying according to the heteropmorphosis workpiece,such as plastic-steel door,aluminium alloy door,timber oor, cabinet door and glass.
7. Door Automatic Spraying Equipment configuration automatically rotating structure, rotary table has two tables, wooden doors after the completion of the painting will automatically rotate to the formation of the flow-trough opetaions, Can achieve continuous production, covers an area of conservation, saving operation time.
Model |
JXUV-DAS-1300 |
Overall Dimensions (mm) |
4200*2200*1800 |
Total Power (KW) |
3.47 |
Effective Processing Width (mm) |
300—1000 |
Effective Processing Length (mm) |
600—2500 |
Effective Processing Thickness (mm) |
10 — 50 |
Oil-supply Way |
Diaphragm pump |
Air Pressure (Map) |
0.4-0.6 |
Servo System (KW) |
Japan Yaskawa moter,0.85 0.75 0.37 |
PLC |
PANASONIC FP-X C6OR |
Spraying Gun Brand |
Japan ANEST IWATA |
Spraying Gun caliber (mm) |
0.37 |
Quantity of Spraying Gun |
2 |
Conveying (complete) speed (min/pic) |
1~5 |
Convey Type |
Rotary Type |
Paint Type |
PU,UV,NC,AC,water-based paints |
Machine Weight (kg) |
2600 |

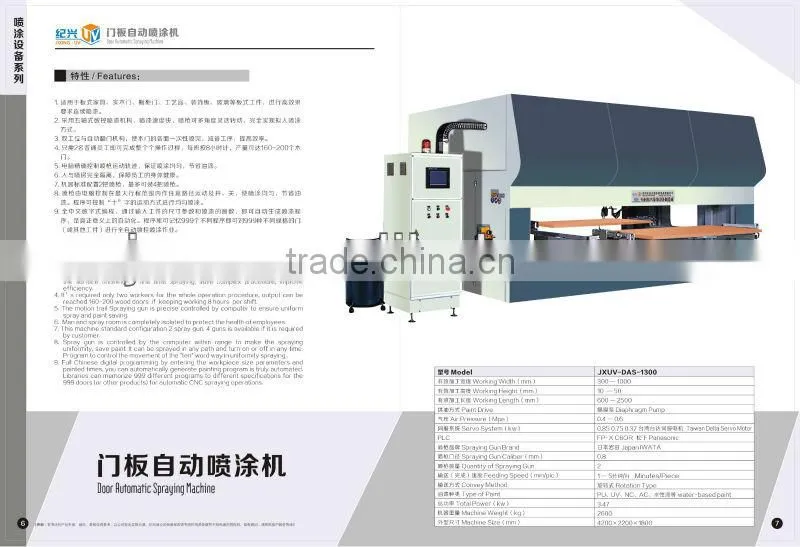

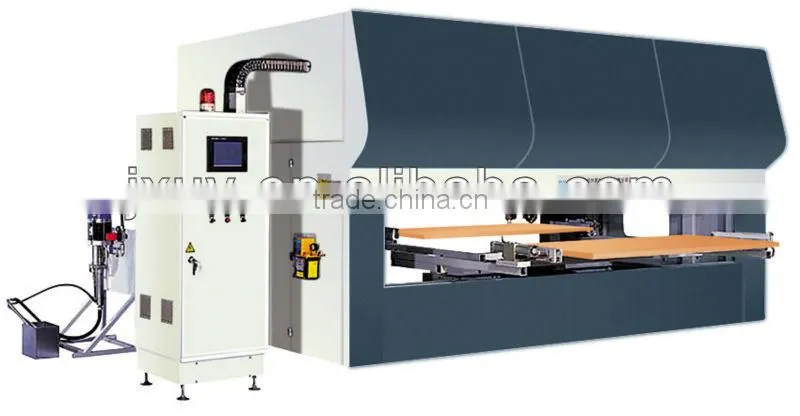

Picture of Door automatic spraying equipment :

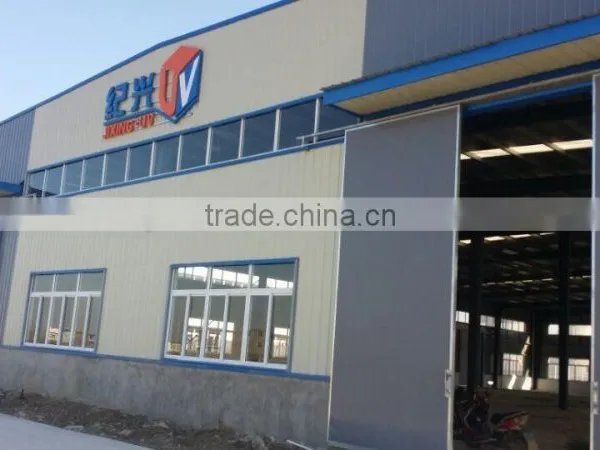

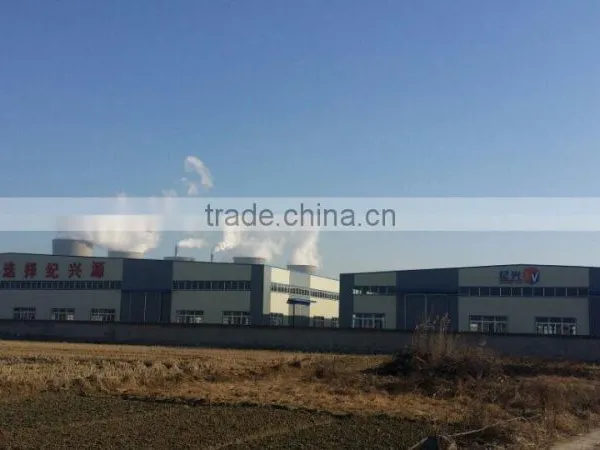

pictures about us :
about us:
Shenzhen jixingyuan painting equipment Co.,Ltd is established in 2003. is engaged in the production ,sale and service of uv surface & edge coating equipments ,such as roller coaters ,Spraying equipment, UV Curing Machine, Sander Machine etc. for 10 years. So we have great creativity and vitality, the staffs are rich in ideals and skillful and our company is already has a large number of senior technician and professional technical knowledge to ensure high quality.
We have Jixingyuan Hong Kong holding group co Ltd , Shenzhen Jixingyuan Painting Equipment Co. Ltd., East China Branch (Huainan Jixingyuan Painting Equipment Co. Ltd), Fujian Branch office, Beijing branch Office and Shandong office and Hebei office , We have two factories (one is located in Shenzhen ,the other is in Huainan ),which is provided best and quickest service for our Mainland client .
Our factory produce the equipments to meet customers home and abroad, Most of our products are distributed to clients in Singapore, the Middle East India ,Southeast Asia , Dubai and other foreign countries . We provide our customers with high quality products and technical information services
