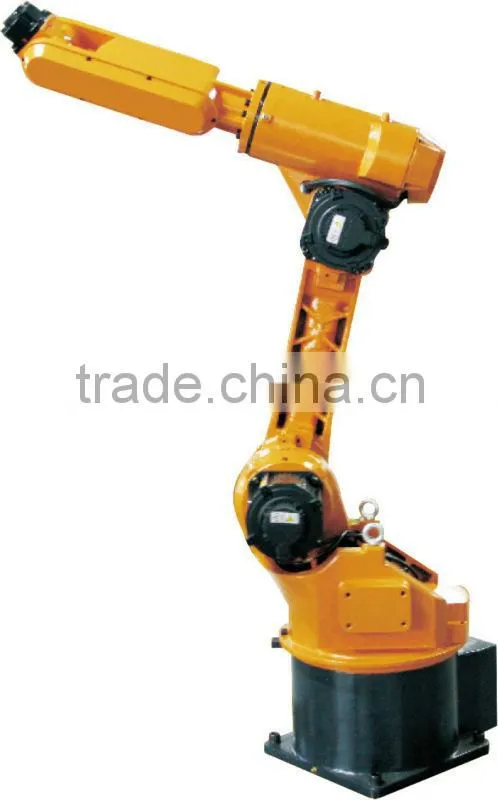

Help CenterWood Floor / Furniture / Door Robotic Arm Painting Robot
Related Products
-
Spray System Spray Robotic Arm MachineUS$ 70,000 - 90,000MOQ: 1 Piece -
Spraying Robot Arm Machine for Any Kinds of MaterialUS$ 70,000 - 90,000MOQ: 1 Piece
-
Spraying Robot Arm Machine for Any Shape of MaterialsUS$ 70,000 - 90,000MOQ: 1 Piece
-
Cabinet Door Spraying Painting MachineUS$ 26,000 - 29,000MOQ: 1 Set
-
Wood Spray Painting MachineUS$ 26,000 - 29,000MOQ: 1 Set
Specifications
Continuing of a variety of products*Paint type:UV/PU/PE/AC and water based paint

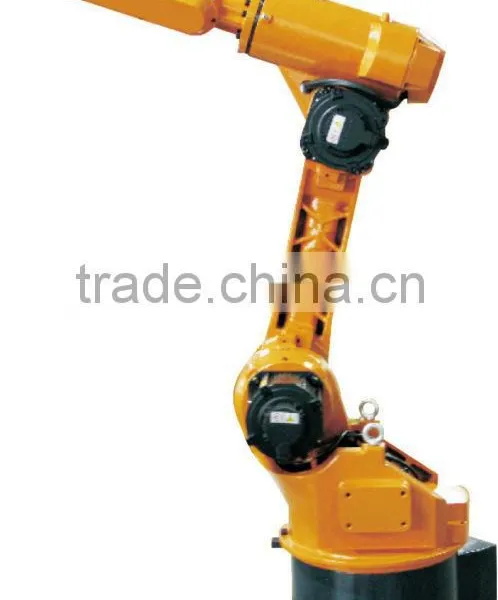

Furniture Robotic Arm Equipment JX2050-A
Description:
1.The entire series including the Robot Arm, Rotating Supply Platform,
Spaying and Control System and Oil Supply System.
2.Adopted Japan ASAHI-AGB40 automatic spraying guns.
3.Display Panel can be translated in English or as per your request
language.
4.Different kinds of installation, such as vertical, inclined and
hanging saves the spraying space and cut the cost.
5.Can be widely equipped with exterior equipment.
6.Action Radius=2050mm, Max Speed=2500m/s.
7.Integrated equipment guarantee: 1year (except spraying guns and
diaphragm pump!)
Technical parameters
Items |
Specifications |
||||
Model |
JX2050-A |
||||
Freedom of motion |
6Shaft |
||||
Drive style |
Holoaxial AC Servormotor +Absolute value coder |
||||
Placement style |
Standing or hoisting |
||||
Max Action Range |
Arm |
J1 |
Involution |
360° |
|
J2 |
Nether Action Angle |
180° |
|||
J3 |
Upper Action Angle |
+5°-163° |
|||
Wrist |
J4 |
Rotation 1 |
±260° |
||
J5 |
Action Angle |
±140° |
|||
J6 |
Rotation 2 |
±260° |
|||
Accepted Inertia Moment |
Arm |
J1 |
Involution |
34.1/N.M |
|
J2 |
Nether Action Moment |
34.1/N.M |
|||
J3 |
Upper Action Moment |
9.8/N.M |
|||
Wrist |
J4 |
Rotation 1 |
0.97/kg. m² |
||
J5 |
Action Moment |
0.4/kg. m² |
|||
J6 |
Rotation 2 |
0.1/kg. m² |
|||
Max Speed |
2.0M/S |
||||
Place overlap precision |
±0.5mm |
||||
Max Vertical Distance |
2767mm |
||||
Max Vertical Distance |
2035mm |
||||
Rated Load |
10KG(spraying guns included) |
||||
Temperature Application |
0°-45° |
||||
Humidity |
20-85%RH without Frost |
||||
Display Panel |
40Words,12Rows,4.7″No Backlight LCD |
||||
Power |
3Phase:AC200V(+10%-15%)5060HZ(-2%- +2%) |
||||
Weight |
370KG |
||||
Package
wooden standard carton is suitable for the export and long transportation,free fumigation.
Payment
We usually accept T/T, payment terms : 30% TT deposit, the balance before shipping.
Shipment
Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can
help you to handle the export ,we can accept the factory price(EXW.),
We arrange the local shipment,which’s easy for you to control the transportation cost.
Warranty
- 1 years warranty for the machines.
- Any warranty shipping cost to us is responsible by buyer
