Home > Products > NETWORK/LAN CABLE > COMPUTER CABLES AND WIRES
COMPUTER CABLES AND WIRES
- 10000 Box / Boxes per Month
- SHA
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | utp | Type | Cat 5e | |
| Number of Conductors | 4 |
Product Description
Specifications
1. CE, ISO, ROHS, LSZH, and FLUKE CERTICIATION2.CONDUCTOR: CU/CCA
3.SOLID TWIST PAIR
Frequency MHz | Attenuation dB/100m | NEXT dB | PS-NEXT dB | RL dB | ELFEXT dB | PS-ELFEXT dB |
1 | 2.0 | 65.3 | 62.3 | 20.0 | 64.0 | 61.0 |
4 | 4.1 | 56.3 | 53.3 | 23.0 | 52.0 | 49.0 |
8 | 5.8 | 51.8 | 48.8 | 24.5 | 45.9 | 42.9 |
10 | 6.5 | 50.3 | 47.3 | 25.0 | 44.0 | 41.0 |
16 | 8.2 | 47.2 | 44.4 | 25.0 | 39.9 | 36.9 |
20 | 9.3 | 45.8 | 42.8 | 25.0 | 38.0 | 35.0 |
25 | 10.4 | 44.3 | 41.3 | 24.3 | 35.8 | 33.0 |
31.25 | 11.7 | 42.9 | 39.9 | 23.6 | 34.1 | 31.1 |
62.50 | 17.0 | 38.4 | 35.4 | 21.5 | 28.1 | 25.1 |
100 | 22.0 | 35.3 | 32.3 | 20.1 | 24.0 | 21.0 |

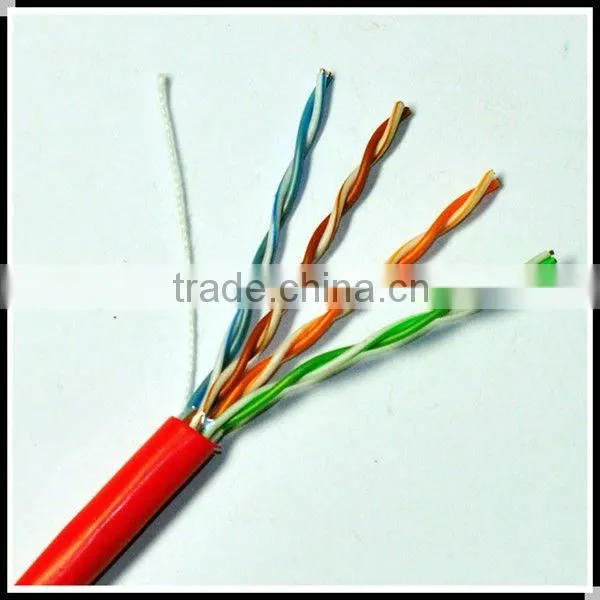

Structure:
Conductor: 24AWG(0.50mm) Copper
Insulation: 0.90mm HDPE
Sheath: PVC or LSZH
AWG 24 Cat5e Cable is used for local communication. And Cat5e UTP Cable is a twisted pair cable for carrying signals and main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second
