Super Link H07VVH6-F 450/700V 2.5KV Flat Cable Elevator Controller Europe Hot Selling
US$ 1,200 - 8,500
MOQ: 50 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
superlink/OEM
Model Number:
H07VVH6-F
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Superlink2015 ELECTRIC CABLE Use CAR AUTO CABLE H05VV-F UL2464 4*0.75/1.0/1.5/2.5 MM2 300/500V High Quality Power CableNegotiableMOQ: 100 Boxes -
Superlink Network Cable Lan Cable Cat6 FTP UTP SFTPUS$ 20 - 50MOQ: 50 Boxes
-
Water Proof Network Cable Lan Cable Cat5e UTP Ftp Cat5E CAT6US$ 23 - 222MOQ: 100 Boxes
-
Patch Cord LAN Cable Cat 5e CAT6 UTP 4-100 PairNegotiableMOQ: 1000 Kilometers
-
CAT 5e SFTPUS$ 0.1 - 1MOQ: 10 Kilometers
Place of Origin
Zhejiang, China
Brand Name
superlink/OEM
Model Number
H07VVH6-F
Insulation Material
PVC
Type
Low Voltage
Application
Industrial
Conductor Material
Copper
Jacket
PVC

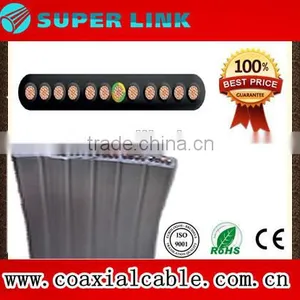

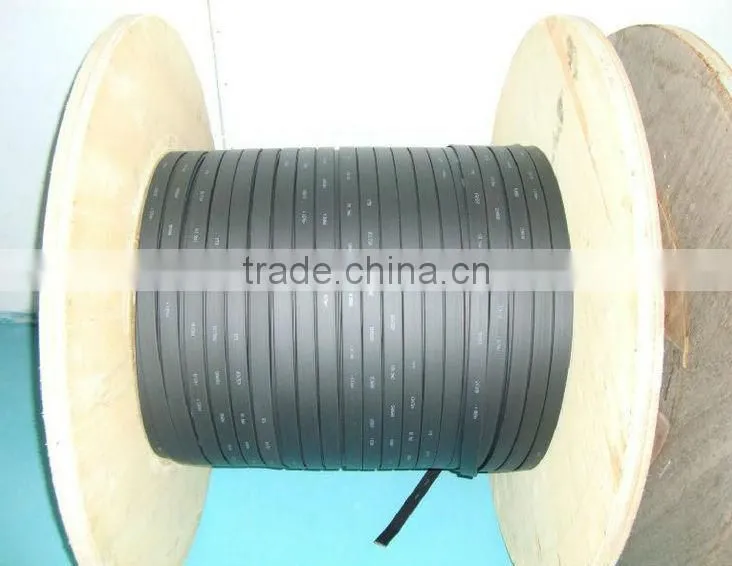

H07VVH6-F 450/700V 2.5KV Flat Cable Elevator Controller Europe Hot Selling
Application
The cables are used for applications with medium mechanical stresses and sharp bending in one place.
They are suitable for use in dry, damp and wet rooms as power and control cable, especially on hoisting
equipment, handling systems, machine tools, etc.
Properties
The outer sheath is extensively resistant to oil and cooling liquid.
Standards: GB5023.6, IEC60227-6, EN 50214
Structure
Conductor: Fine strands of bare copper wire,
Acc. To VDE0295 CLASS5
Insulation: Special PVC
Colour: Yellow, white, orangeg with black number with white digital coding
Bearing: Steel rope
Outer sheath: Flexible PVC, cold resistance, flame resistance
Colour: Grey(RAL7001)
Technical data
Rated voltage: 450/700V
Test voltage: 2500V
Minimum bending radius: 0.3m
Burning vertically test: GB/T18380.1-2001
IEC60332-1.1 993 test passed
Used under the nomal conditions. The temperature of conductor is lower than 70ºC
Temperature range: -15ºC to +70ºC
TVVB (Parallel) free suspension length must not exceed 35 meters, and the lift speed 1.6m/s.
TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s
| Product Name | Specification | Width(mm) | Thickness(mm) | Weight (kg/km) |
Struction |
| H05VVH6-F | 2C0.5mm2 | 7.3± 1.0 | 4.1± 0.5 | 55 | Straight line |
| H05VVH6-F | 3C0.5mm2 | 9.3± 1.0 | 4.1± 0.5 | 71 | Straight line |
| H05VVH6-F | 4C0.5mm2 | 12.3± 1.0 | 4.1± 0.5 | 93 | Straight line |
| H05VVH6-F | 5C0.5mm2 | 15.2± 1.0 | 4.1± 0.5 | 114 | Straight line |
| H05VVH6-F | 6C0.5mm2 | 17.2± 1.0 | 4.1± 0.5 | 130 | Straight line |
| H05VVH6-F | 7C0.5mm2 | 19.2± 1.0 | 4.1± 0.5 | 146 | Straight line |
| H05VVH6-F | 8C0.5mm2 | 21.2± 1.5 | 4.1± 0.5 | 162 | Straight line |
| H05VVH6-F | 9C0.5mm2 | 23.2± 1.5 | 4.1± 0.5 | 178 | Straight line |
| H05VVH6-F | 10C0.5mm2 | 25.2± 1.5 | 4.1± 0.5 | 194 | Straight line |
| H05VVH6-F | 11C0.5mm2 | 27.2± 1.5 | 4.1± 0.5 | 210 | Straight line |
| H05VVH6-F | 12C0.5mm2 | 29.2± 1.5 | 4.1± 0.5 | 226 | Straight line |
| H05VVH6-F | 13C0.5mm2 | 31.2± 2.0 | 4.1± 0.5 | 242 | Straight line |
| H05VVH6-F | 14C0.5mm2 | 34.2± 2.0 | 4.1± 0.5 | 263 | Straight line |
| H05VVH6-F | 15C0.5mm2 | 36.2± 2.0 | 4.1± 0.5 | 279 | Straight line |
| H05VVH6-F | 16C0.5mm2 | 38.2± 2.0 | 4.1± 0.5 | 295 | Straight line |
| H05VVH6-F | 17C0.5mm2 | 40.2± 2.0 | 4.1± 0.5 | 311 | Straight line |
| H05VVH6-F | 18C0.5mm2 | 43.1± 2.0 | 4.1± 0.5 | 332 | Straight line |
| H05VVH6-F | 19C0.5mm2 | 45.1± 2.0 | 4.1± 0.5 | 348 | Straight line |
| H05VVH6-F | 20C0.5mm2 | 47.1± 2.0 | 4.1± 0.5 | 364 | Straight line |
| H05VVH6-F | 21C0.5mm2 | 49.1± 2.0 | 4.1± 0.5 | 380 | Straight line |
| H05VVH6-F | 22C0.5mm2 | 51.1± 2.0 | 4.1± 0.5 | 396 | Straight line |
| H05VVH6-F | 23C0.5mm2 | 53.1± 2.0 | 4.1± 0.5 | 412 | Straight line |
| H05VVH6-F | 24C0.5mm2 | 56.1± 2.0 | 4.1± 0.5 | 434 | Straight line |
| H05VVH6-F | 24C0.5mm2 | 31.3± 2.0 | 8.4± 0.5 | 428 | Bunch core |
| H05VVH6-F | 30C0.5mm2 | 39.9± 2.0 | 7.8± 0.5 | 530 | Bunch core |
| H05VVH6-F | 36C0.5mm2 | 43.5± 2.0 | 8.4± 0.5 | 628 | Bunch core |
| H05VVH6-F | 40C0.5mm2 | 50.7± 2.0 | 7.8± 0.5 | 677 | Bunch core |
| H05VVH6-F | 42C0.5mm2 | 49.5± 2.5 | 8.4± 0.5 | 717 | Bunch core |
| H05VVH6-F | 48C0.5mm2 | 55.5± 2.5 | 8.4± 0.5 | 806 | Bunch core |
| H05VVH6-F | 54C0.5mm2 | 61.5± 2.5 | 8.4± 0.5 | 895 | Bunch core |
| H05VVH6-F | 60C0.5mm2 | 67.5± 2.5 | 8.4± 0.5 | 984 | Bunch core |
| H05VVH6-F | 66C0.5mm2 | 73.5± 2.5 | 8.4± 0.5 | 1074 | Bunch core |
| H05VVH6-F | 2C0.75mm2 | 8.0± 1.0 | 4.2± 0.5 | 68 | Straight line |
| H05VVH6-F | 3C0.75mm2 | 10.4± 1.0 | 4.2± 0.5 | 90 | Straight line |
| H05VVH6-F | 4C0.75mm2 | 13.7± 1.0 | 4.2± 0.5 | 118 | Straight line |
| H05VVH6-F | 5C0.75mm2 | 17.1± 1.0 | 4.2± 0.5 | 145 | Straight line |
| H05VVH6-F | 6C0.75mm2 | 19.4± 1.0 | 4.2± 0.5 | 167 | Straight line |
| H05VVH6-F | 7C0.75mm2 | 21.8± 1.5 | 4.2± 0.5 | 188 | Straight line |
| H05VVH6-F | 8C0.75mm2 | 24.1± 1.5 | 4.2± 0.5 | 210 | Straight line |
| H05VVH6-F | 9C0.75mm2 | 26.5± 1.5 | 4.2± 0.5 | 231 | Straight line |
| H05VVH6-F | 10C0.75mm2 | 28.8± 1.5 | 4.2± 0.5 | 253 | Straight line |
| H05VVH6-F | 11C0.75mm2 | 31.2± 2.0 | 4.2± 0.5 | 274 | Straight line |
| H05VVH6-F | 12C0.75mm2 | 33.5± 2.0 | 4.2± 0.5 | 277 | Straight line |
| H05VVH6-F | 13C0.75mm2 | 35.9± 2.0 | 4.2± 0.5 | 298 | Straight line |
| H05VVH6-F | 14C0.75mm2 | 39.2± 2.0 | 4.2± 0.5 | 323 | Straight line |
| H05VVH6-F | 15C0.75mm2 | 41.6± 2.0 | 4.2± 0.5 | 344 | Straight line |
| H05VVH6-F | 16C0.75mm2 | 43.9± 2.0 | 4.2± 0.5 | 364 | Straight line |
| H05VVH6-F | 17C0.75mm2 | 46.3± 2.0 | 4.2± 0.5 | 384 | Straight line |
| H05VVH6-F | 18C0.75mm2 | 49.6± 2.0 | 4.2± 0.5 | 410 | Straight line |
| H05VVH6-F | 19C0.75mm2 | 52.0± 2.0 | 4.2± 0.5 | 430 | Straight line |
| H05VVH6-F | 20C0.75mm2 | 54.3± 2.0 | 4.2± 0.5 | 450 | Straight line |
| H05VVH6-F | 21C0.75mm2 | 56.7± 2.0 | 4.2± 0.5 | 470 | Straight line |
| H05VVH6-F | 22C0.75mm2 | 59.0± 2.0 | 4.2± 0.5 | 491 | Straight line |
| H05VVH6-F | 23C0.75mm2 | 61.4± 2.5 | 4.2± 0.5 | 511 | Straight line |
| H05VVH6-F | 24C0.75mm2 | 64.7± 2.5 | 4.2± 0.5 | 537 | Straight line |
| H05VVH6-F | 24C0.75mm2 | 31.3± 2.0 | 8.4± 0.5 | 470 | Bunch core |
| H05VVH6-F | 30C0.75mm2 | 39.9± 2.0 | 7.8± 0.5 | 582 | Bunch core |
| H05VVH6-F | 36C0.75mm2 | 43.5± 2.0 | 8.4± 0.5 | 691 | Bunch core |
| H05VVH6-F | 40C0.75mm2 | 50.7± 2.0 | 7.8± 0.5 | 748 | Bunch core |
| H05VVH6-F | 42C0.75mm2 | 49.5± 2.0 | 8.4± 0.5 | 791 | Bunch core |
| H05VVH6-F | 48C0.75mm2 | 55.5± 2.0 | 8.4± 0.5 | 891 | Bunch core |
| H05VVH6-F | 54C0.75mm2 | 61.5± 2.5 | 8.4± 0.5 | 990 | Bunch core |
| H05VVH6-F | 60C0.75mm2 | 67.5± 2.5 | 8.4± 0.5 | 1090 | Bunch core |
| H05VVH6-F | 66C0.75mm2 | 73.5± 2.5 | 8.4± 0.5 | 1190 | Bunch core |
Package

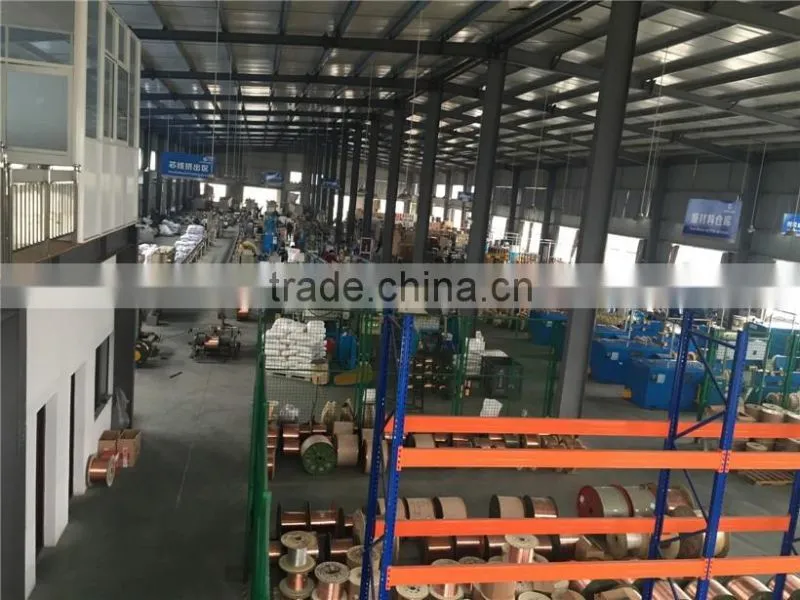

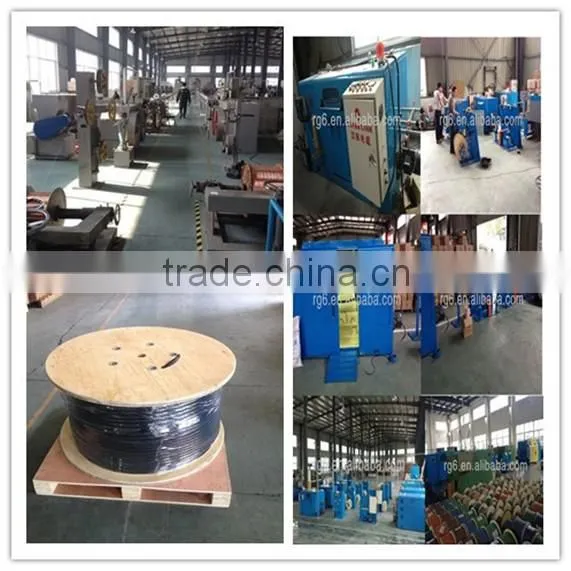

Factory
